Abs Actuator: Components

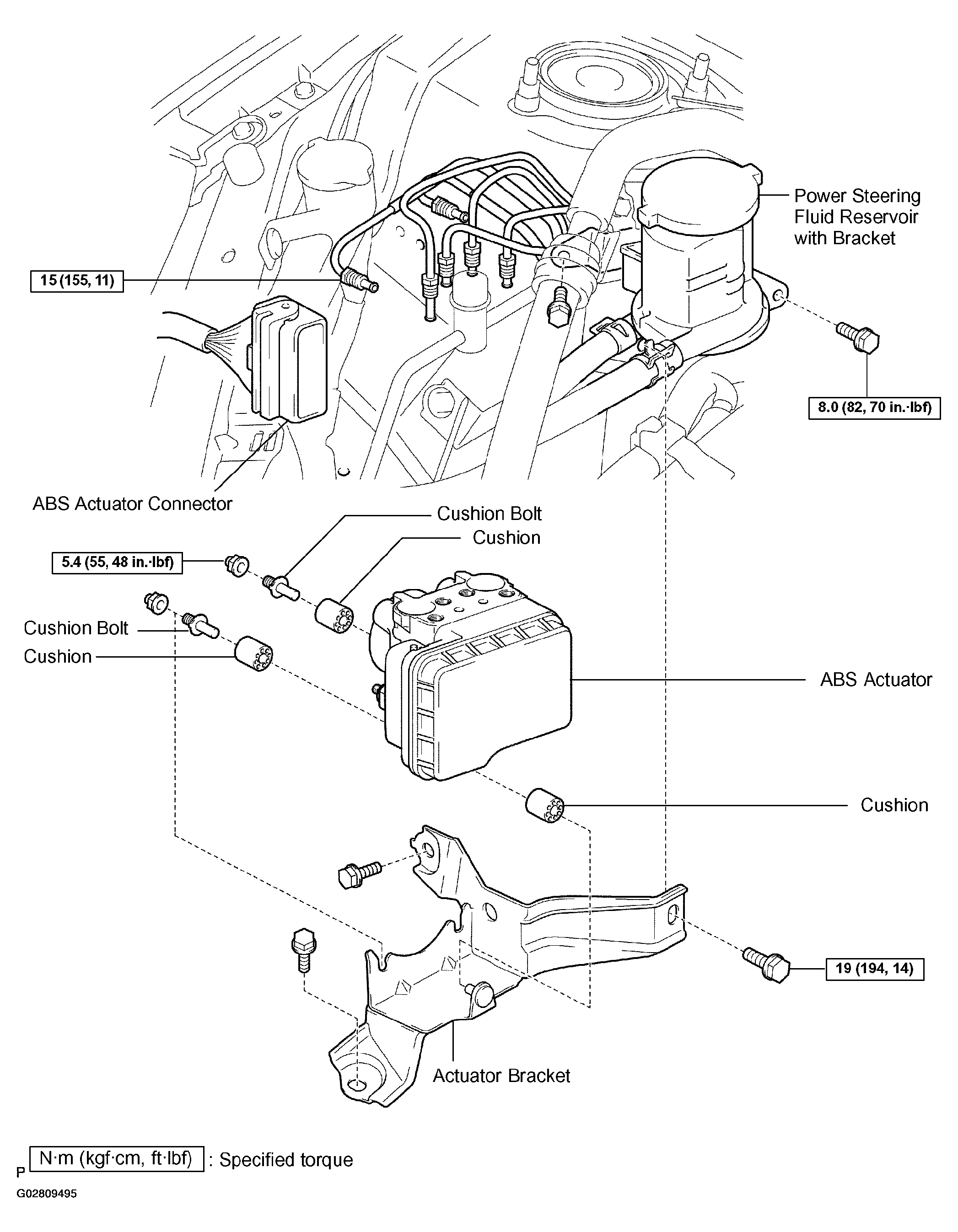

Fig 1: Exploded View Of ABS Actuator Components

G02809495

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
