Terminals Of Ecu

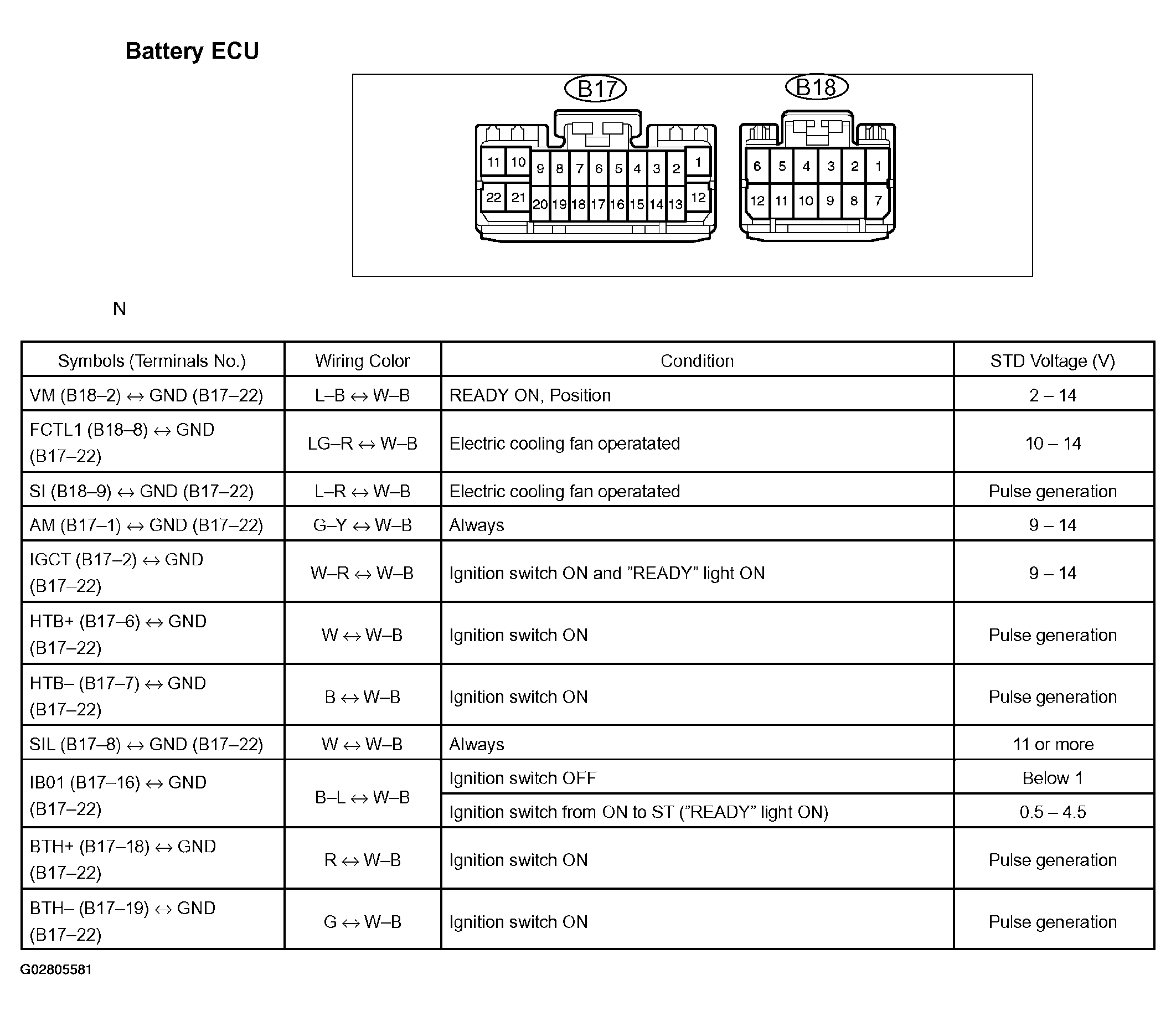

Fig 1: Identifying Battery ECU Terminals

G02805581

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
