Circuit Description

A thermistor in the sensor set in a battery pack changes its resistance according to battery temperature.

As the battery temperature falls or rises, the resistance rises or falls accordingly.

Fig 1: DTC P3060 Chart
G02805599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

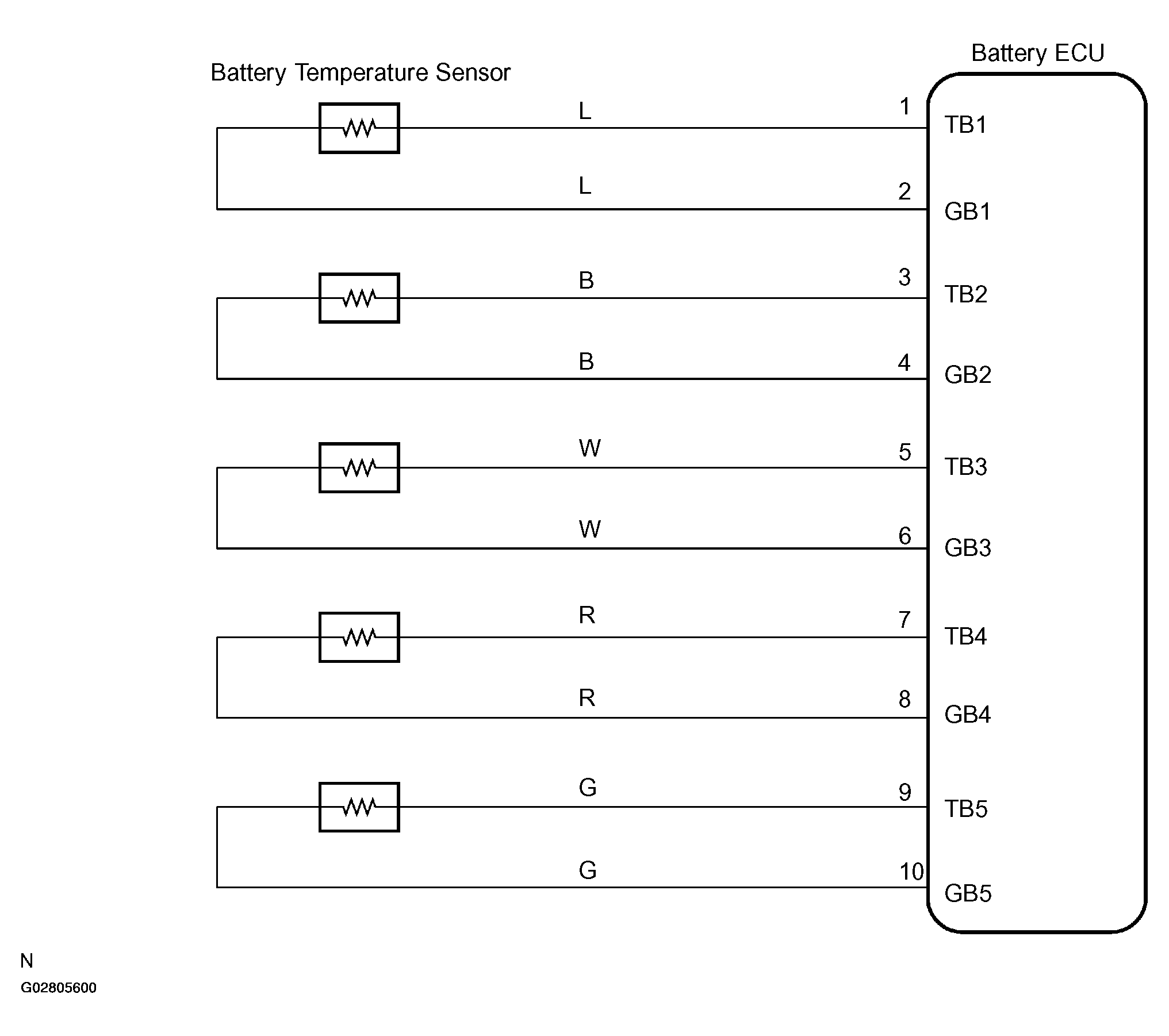

Fig 1: Wiring Diagram Battery Temperature Sensor Circuit
G02805600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
