Circuit Description

Electric leak from the high-voltage system, which may seriously harm the human body, is detected by this code.

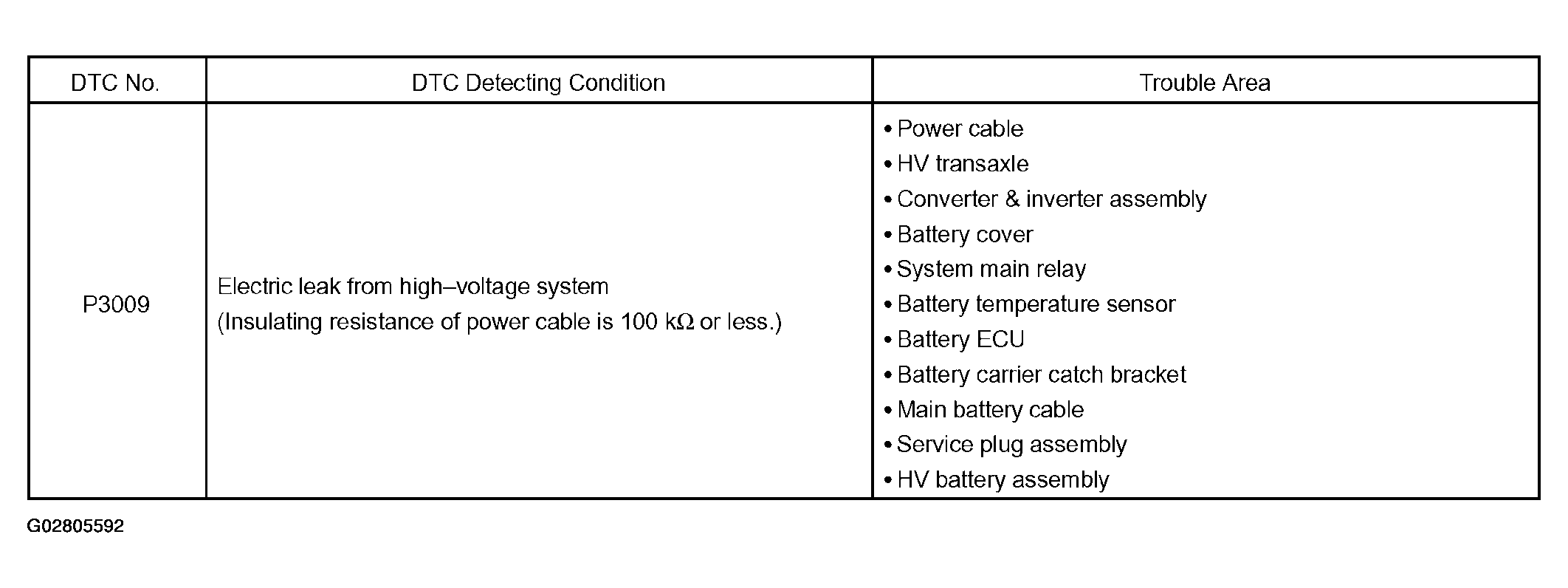

Fig 1: DTC P3009 Chart
G02805592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
