Inspection Procedure

  1. Check voltage between terminals Ts and E 1  of DLC1 or Tc and CG of DLC3.

    CHECK:

    1. Turn the ignition switch ON.
    2. Measure the voltage between terminals Ts and E1 of the DLC1, or terminals Ts and CG of the DLC3.

    OK: Voltage: 10-14V

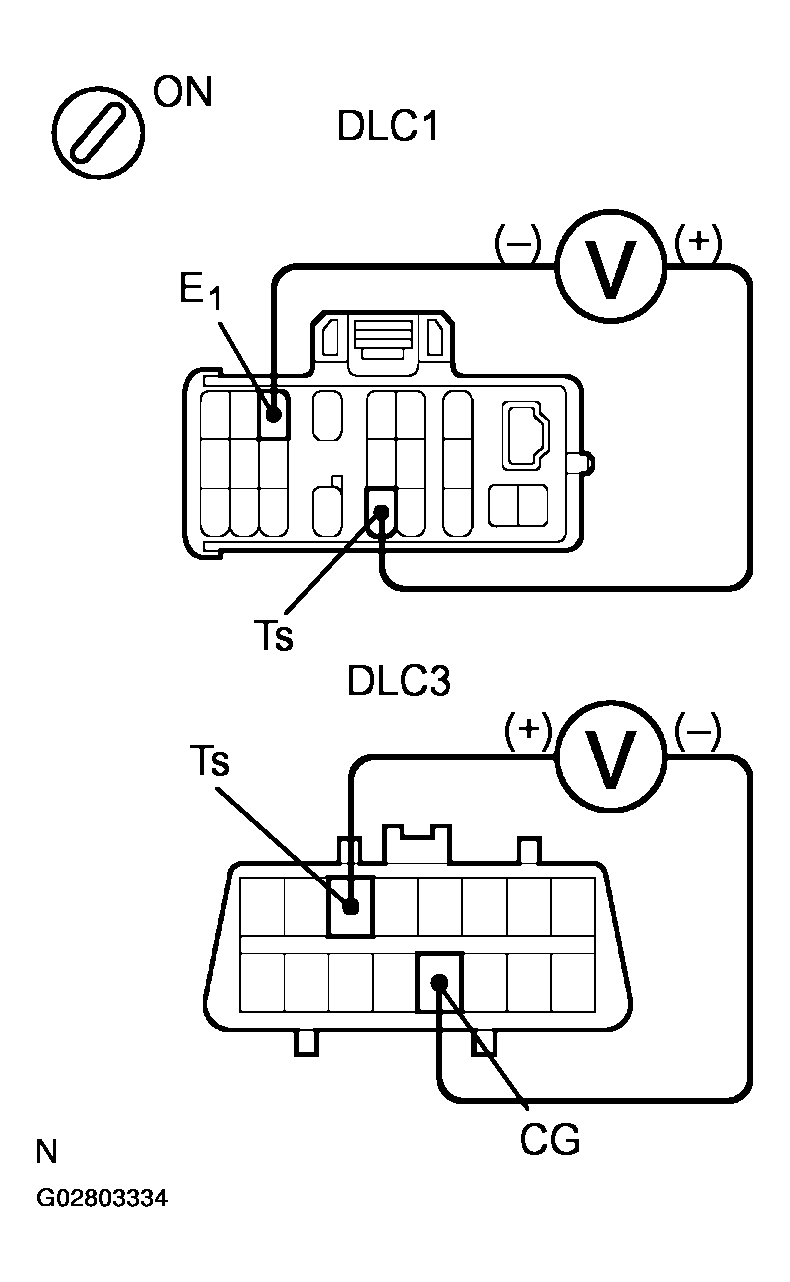

    Fig 1: Checking Voltage Between Terminals TS And E1 Of DLC1 Or TC And CG Of DLC3
    G02803334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. OK: If ABS warning light does not blink even after Ts and E 1  , Ts and CG have been connected, ECU may be defective.
    2. NG: Go to next step.
  2. Check for open and short circuit in harness and connector between ABS & TRAC ECU and DLC1 or DLC3, DLC1 or DLC3 and body ground .
    1. NG: Repair or replace harness or connector.
    2. OK: Check and replace ABS & TRAC ECU.
