Circuit Description

WARNING: This page is about a different car, the 2002 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

A photo diode in the solar sensor detects solar radiation and sends signals to the A/C control assembly.

Fig 1: Detecting Solar Radiation & Sending Signals To A/C Control Assembly
G01051344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

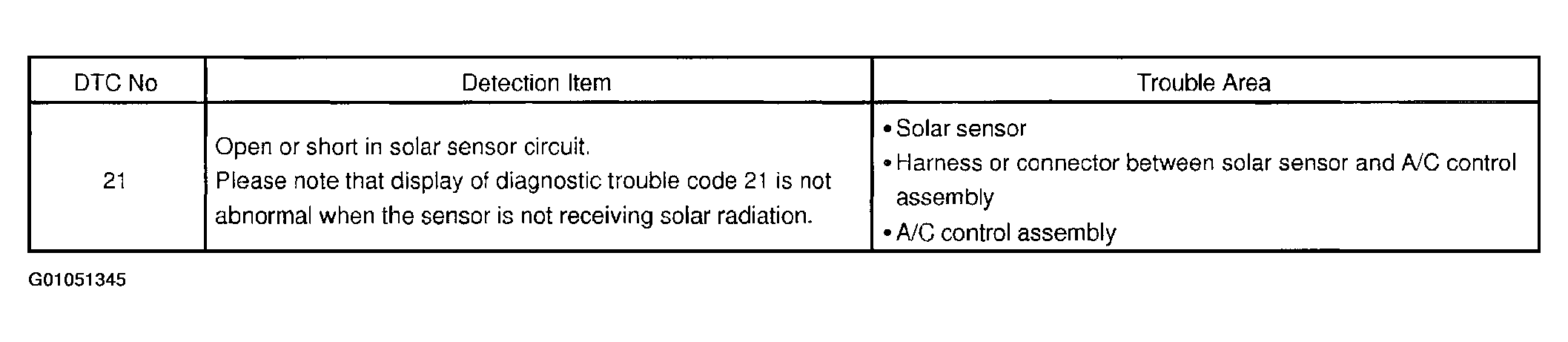

Fig 2: Defining DTC 21 Solar Sensor Circuit
G01051345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
