Inspection Procedure

1. PREPARATION:
   1. Remove A/C control assembly with connectors still connected AIR CONDITIONING .
   2. Turn Ignition Switch To On.

1. Check:
2. Measure voltage between terminals TW and SG of A/C control assembly connector at each engine coolant temperature.

1. OK:
   1. Voltage
   2. At 0°C (32°F): 2.8-3.2V
   3. At 40°C (104°F): 1.8-2.2 V
   4. At 70°C (158°F): 0.9-1.3 V

Hint:

As The temperature increases, the voltage decreases.

1. NG: Go To Step 2
2. OK: Proceed to next circuit inspection shown on problem symptoms table, see  PROBLEM SYMPTOMS TABLE  . However, If DTC 14 is displayed, check and replace A/C control assembly.

Fig 1: Checking TW & SG Terminal Voltage

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

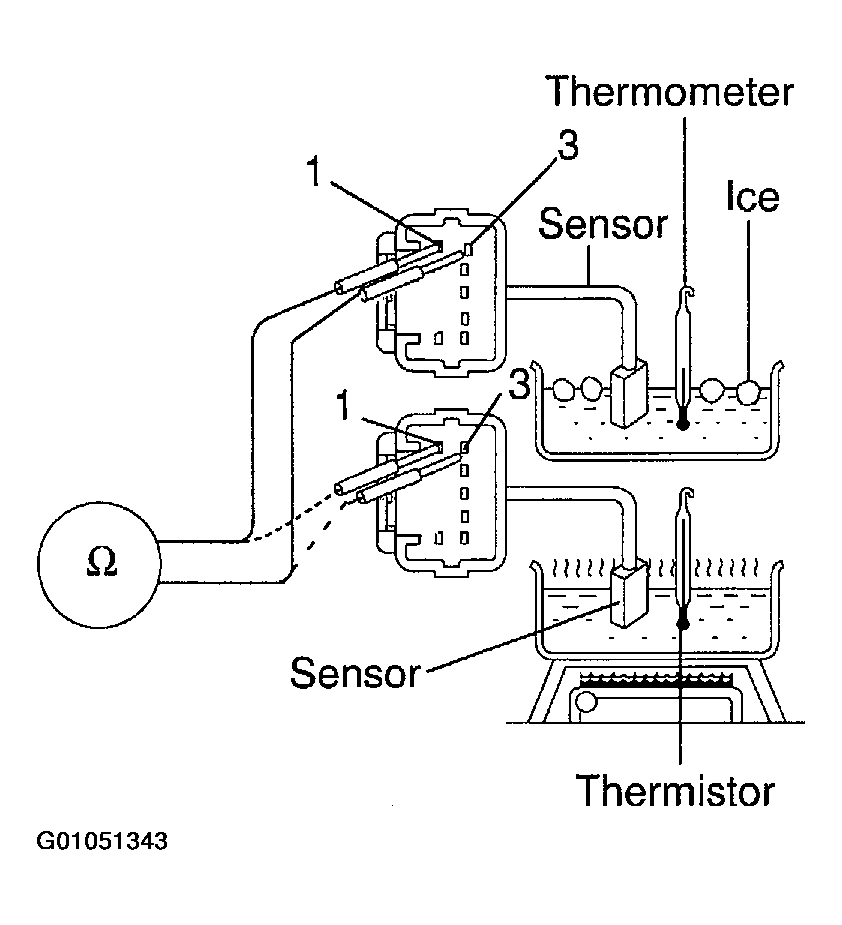

Fig 2: Checking Engine Coolant Temperature Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. PREPARATION:
2. Remove engine coolant temperature sensor AIR CONDITIONING .

1. CHECK:
2. Measure resistance between terminals 1 and 3 of engine coolant temperature sensor connector at each temperature.

1. OK:
   1. Resistance:
   2. At 0°C (32°F): Below 50 k/ohms
   3. At 40°C (104°F): 2.5-2.7 k/ohms
   4. At 100°C (212°F): Over 0.3 k/ohms

Hint:

As The Temperature Increases, The Resistance Decreases Gradually.

1. NG: Replace engine coolant temperature sensor.
2. OK: Go to next step

1. NG: Repair or replace harness or connector.
2. OK: Check and replace A/C control assembly.
