Circuit Description

WARNING: This page is about a different car, the 2002 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

This sensor detects the temperature inside the cabin and sends the appropriate signals to the A/C control assembly.

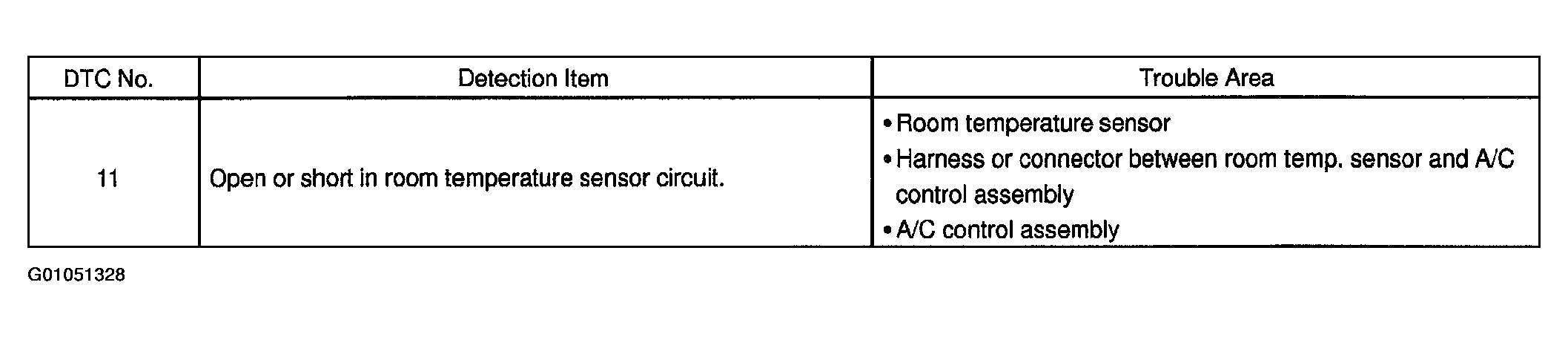

Fig 1: Defining DTC 11 Room Temperature Sensor Circuit
G01051328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
