Electronically Controlled Transmission Communication Circuit

WARNING: This page is about a different car, the 2002 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

For electronically controlled transmission communication circuit testing procedures, see Fig 1-Fig 3 .

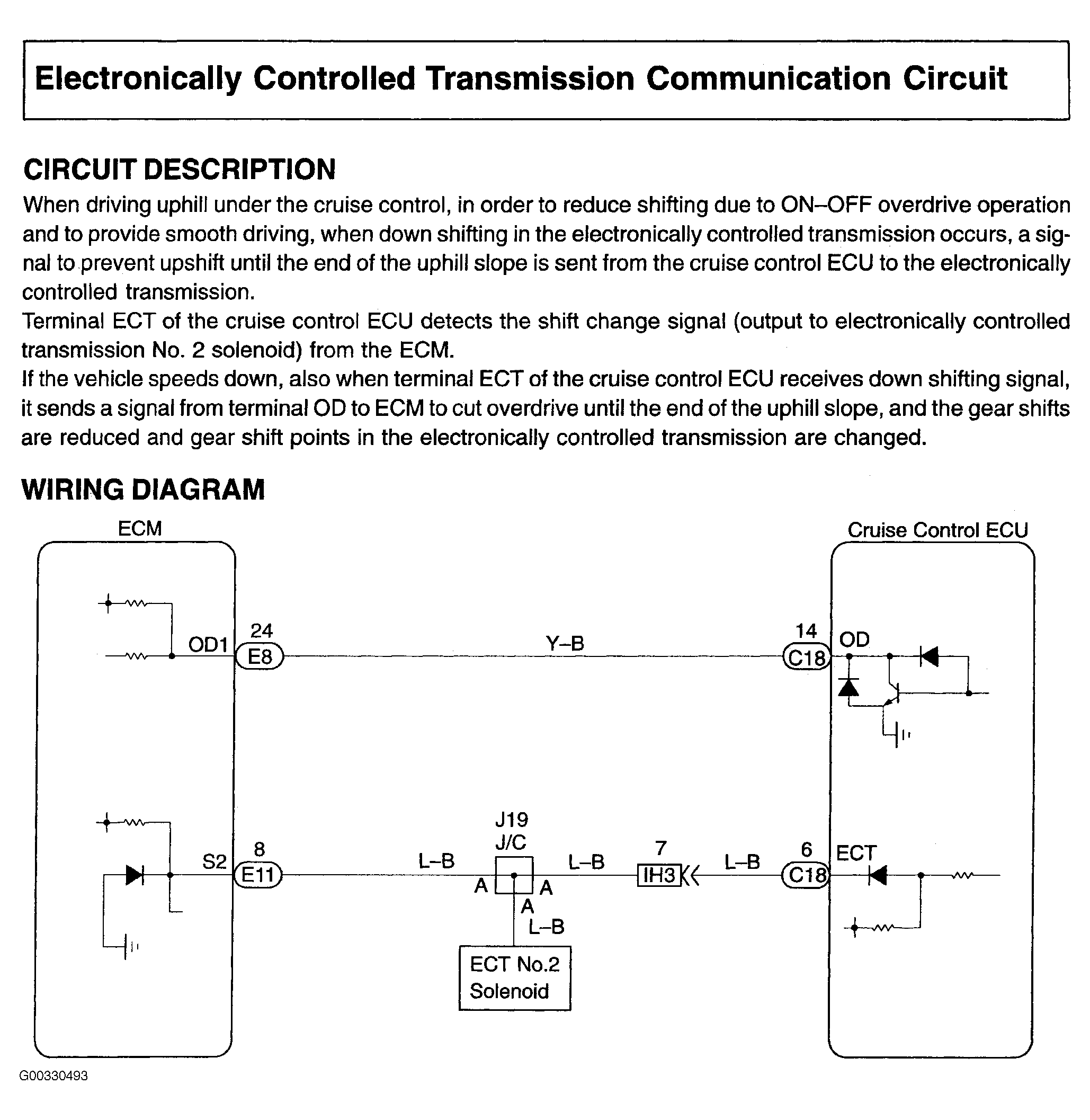

Fig 1: Testing Electronically Controlled Transmission Communication Circuit (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

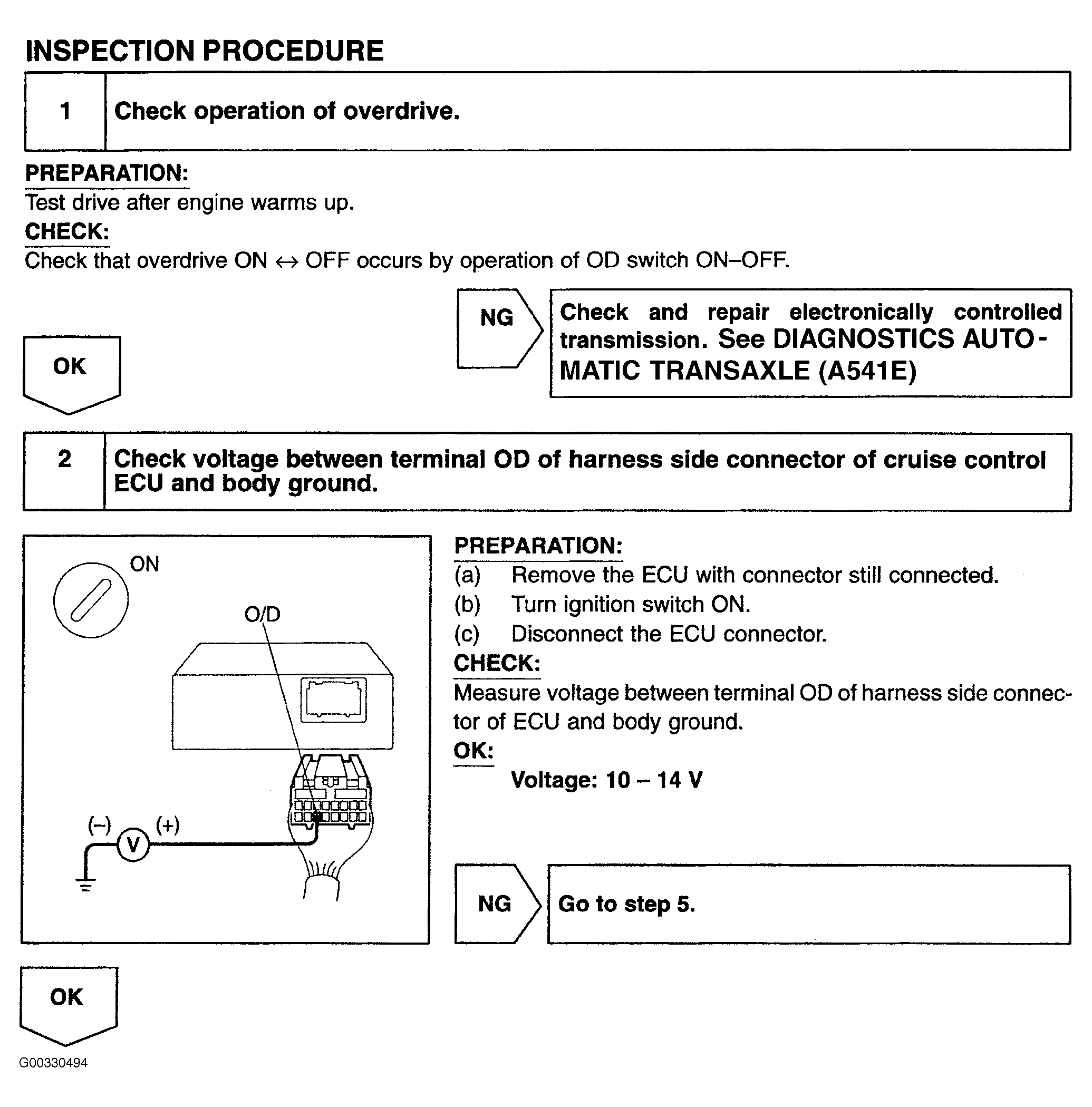

Fig 2: Testing Electronically Controlled Transmission Communication Circuit (2 Of 3)

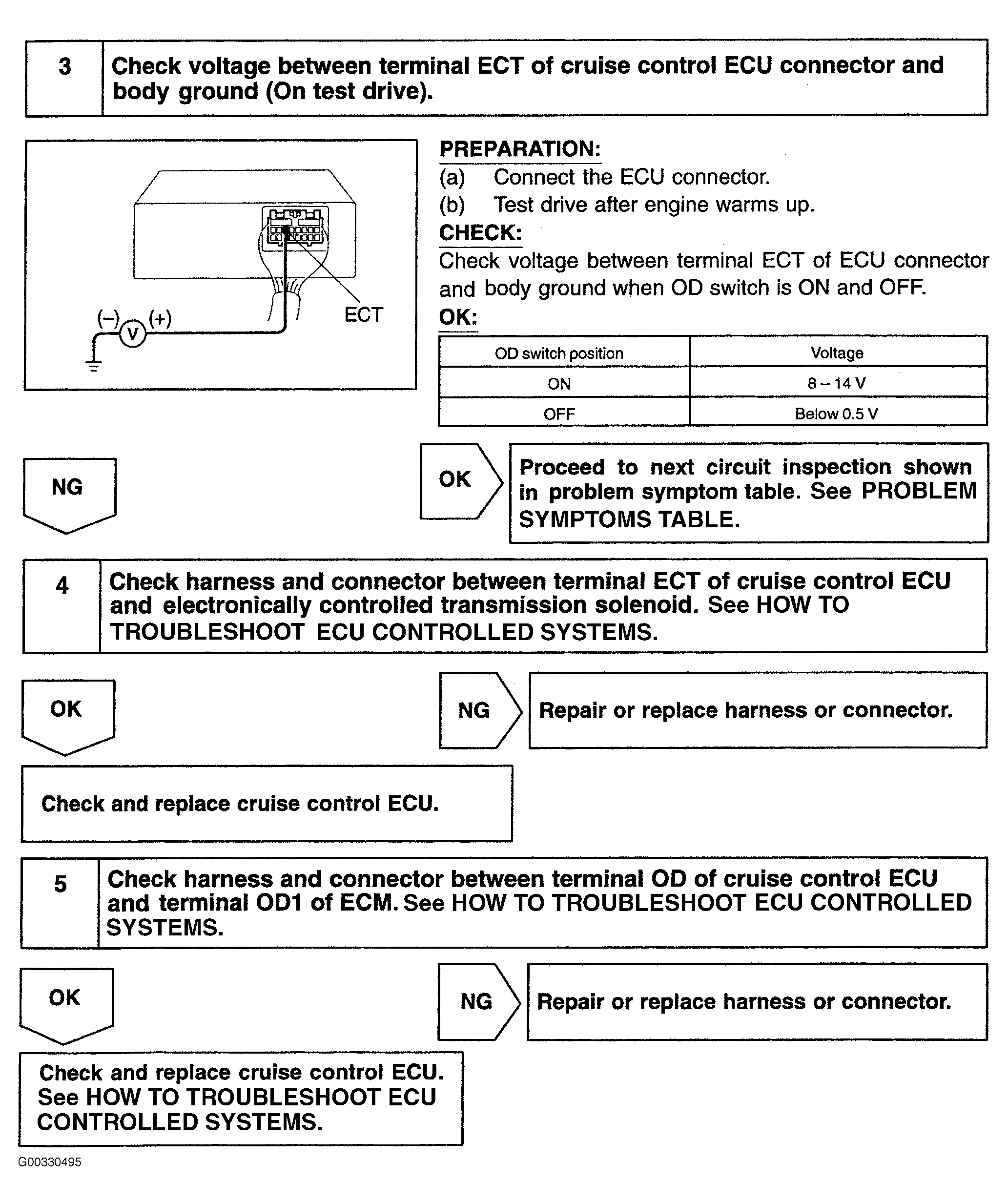

Fig 3: Testing Electronically Controlled Transmission Communication Circuit (3 Of 3)
