System Tests: Notes

WARNING: This page is about a different variant/trim than selected.

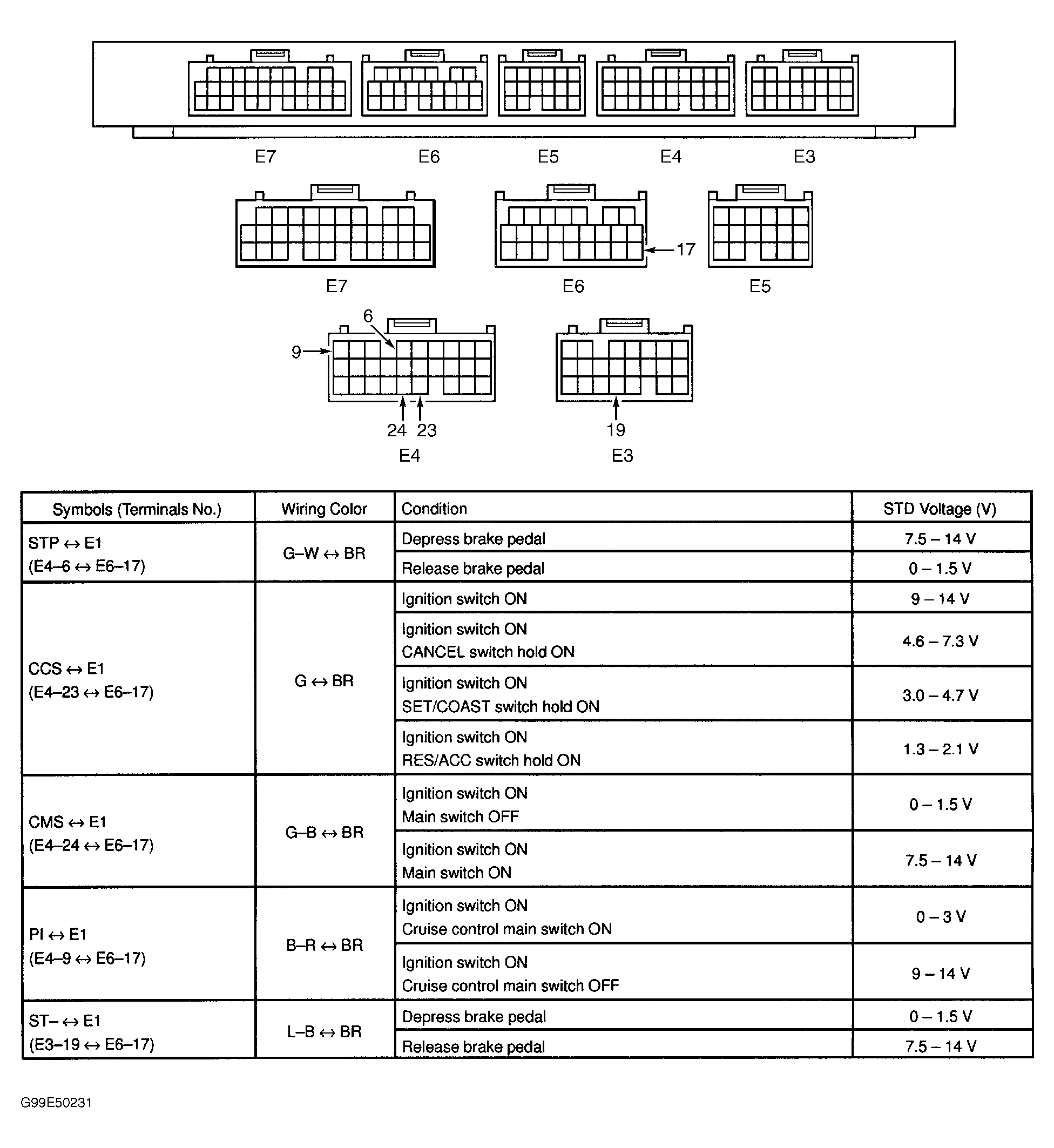

NOTE: To identify cruise control ECU connector terminals, see Figure. To help identify all other cruise control related connector terminals and wire colors, see WIRING DIAGRAMS .
