How To Proceed With Troubleshooting

WARNING: This page is about a different car, the 2004 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

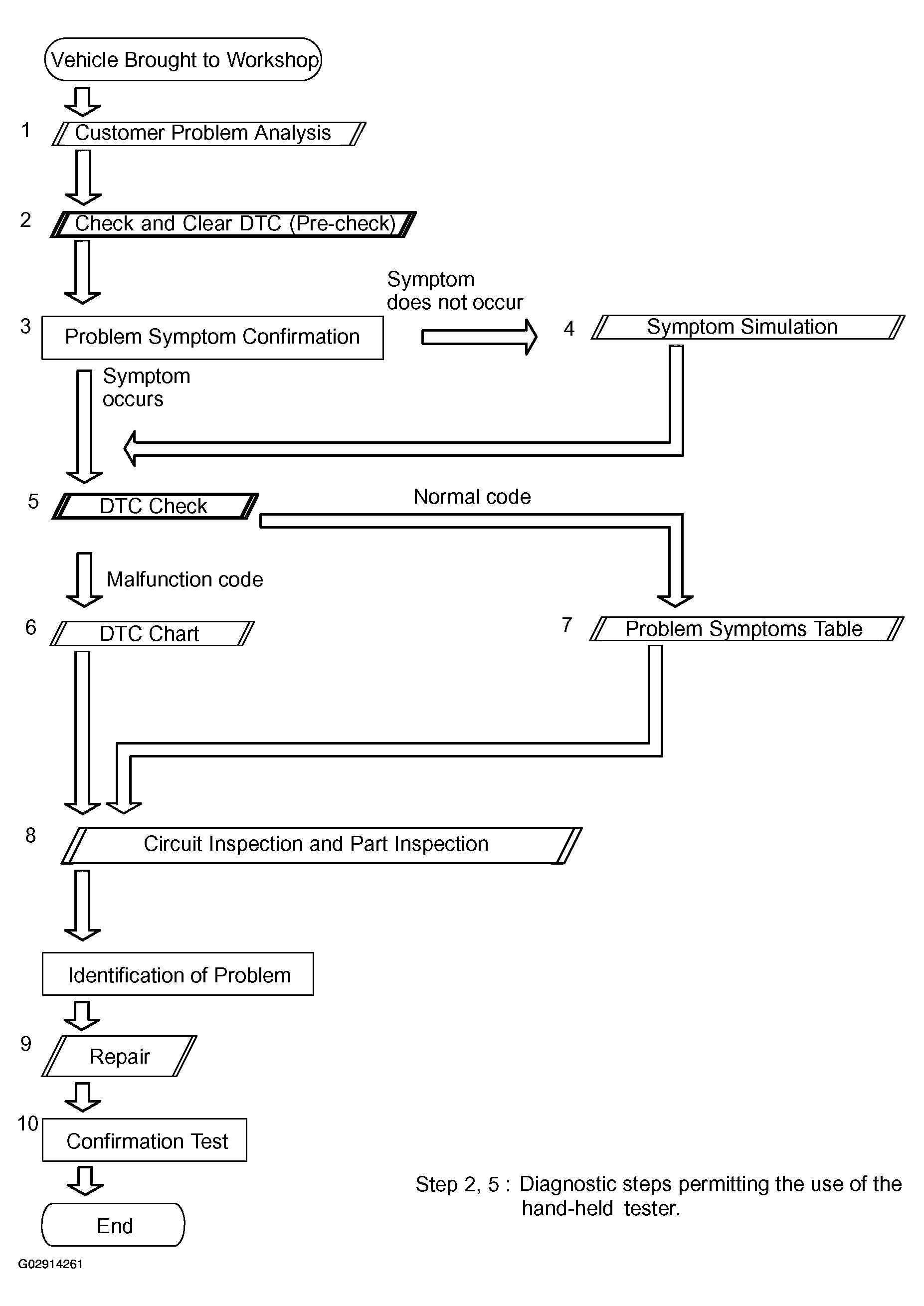

Fig 1: Displaying Engine Immobiliser System Troubleshooting Procedure
G02914261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
