Checking Fluid Level: Transaxle
WARNING: This page is about a different car, the 2002 Toyota MR2 and 2001 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

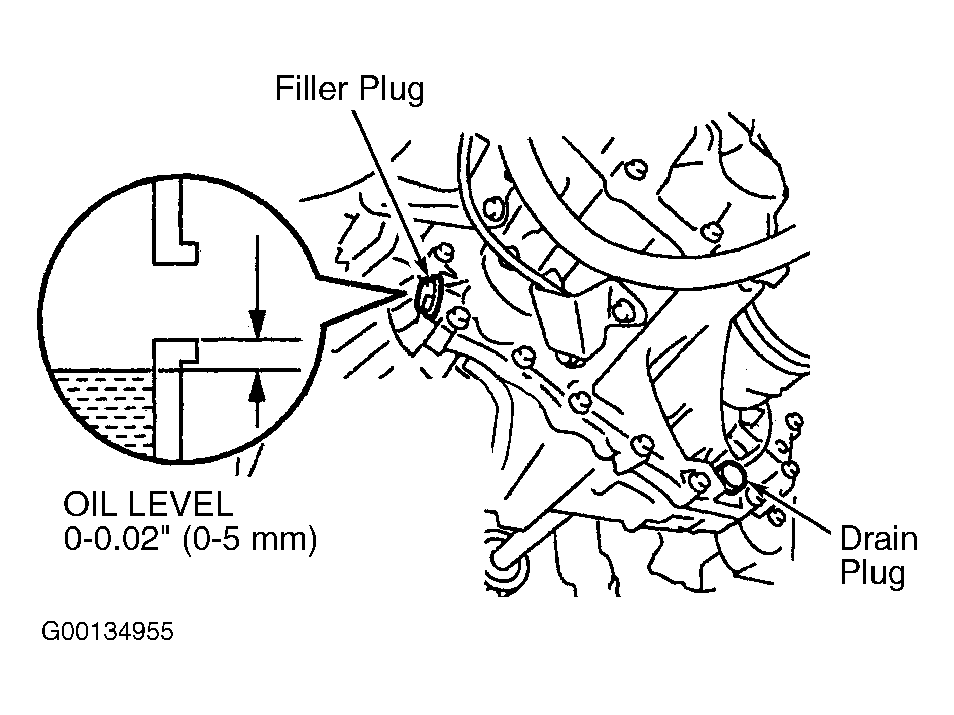

Raise and support the vehicle. Ensure vehicle is level. Remove fill plug from transaxle. Fluid should be level with bottom edge of fill plug hole. See Fig 1. If fluid is low, fill with appropriate fluid until fluid is level with fill plug opening. See RECOMMENDED FLUIDS . Reinstall fill plug. Tighten to specification. See TORQUE SPECIFICATIONS .
