Fuel Pressure Regulator: Notes
NOTE:

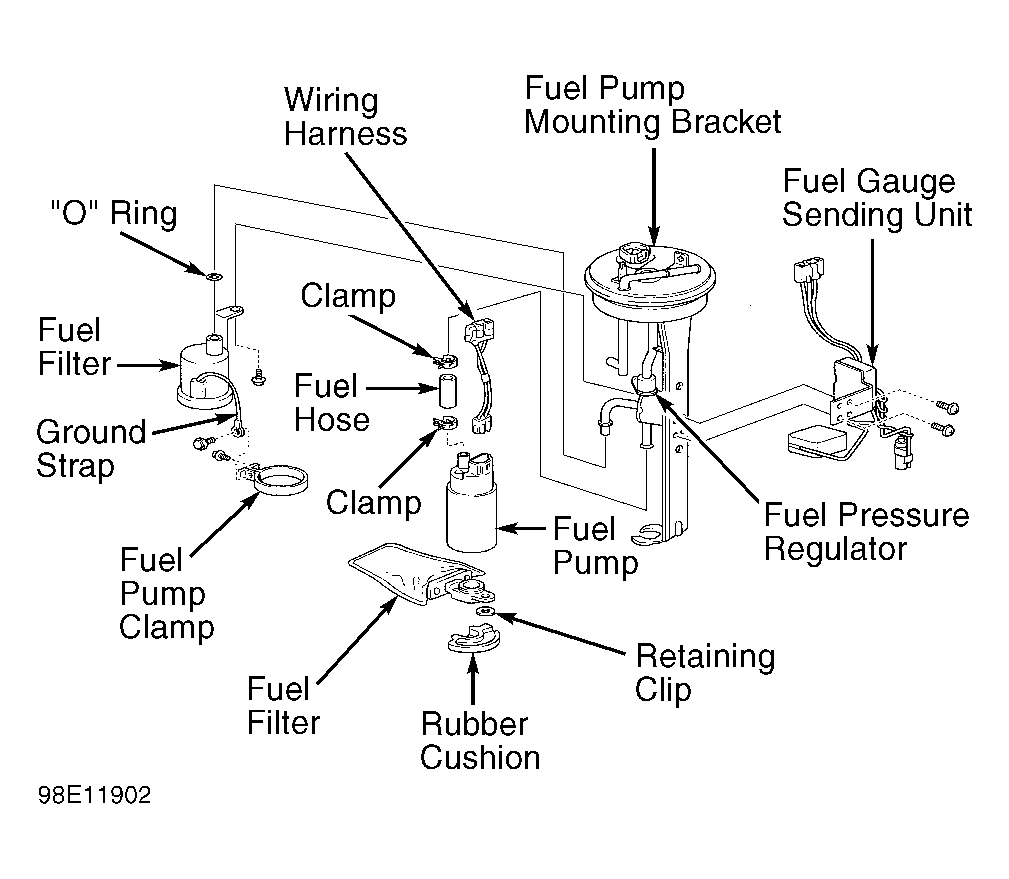

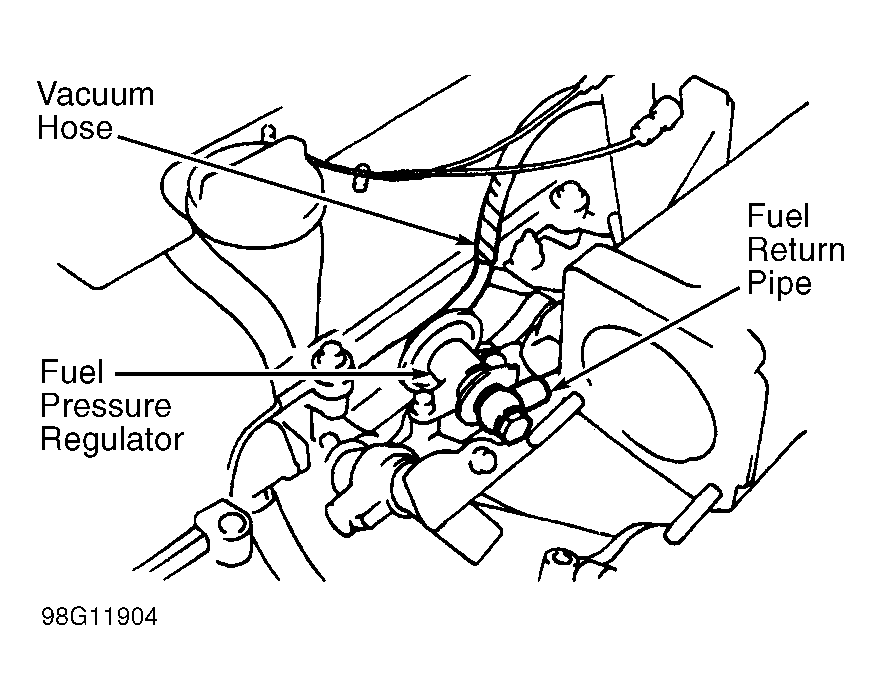

On non-turbo models, fuel pressure regulator is mounted on the fuel pump assembly in the fuel tank. See Figure. On turbo models, fuel pressure regulator is located on front end of fuel rail, near throttle body. See Figure.
