Power Source (Current Flow Chart)

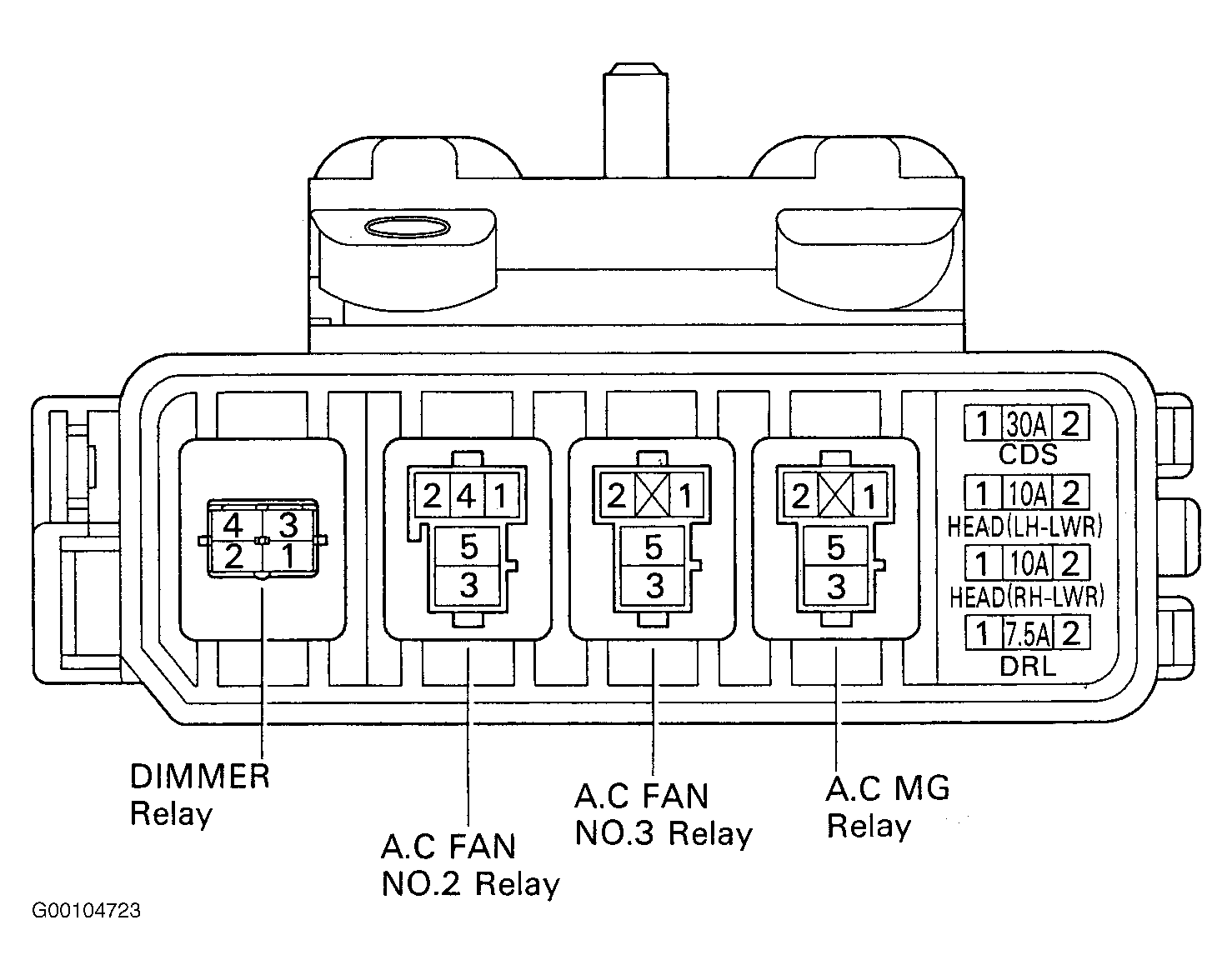

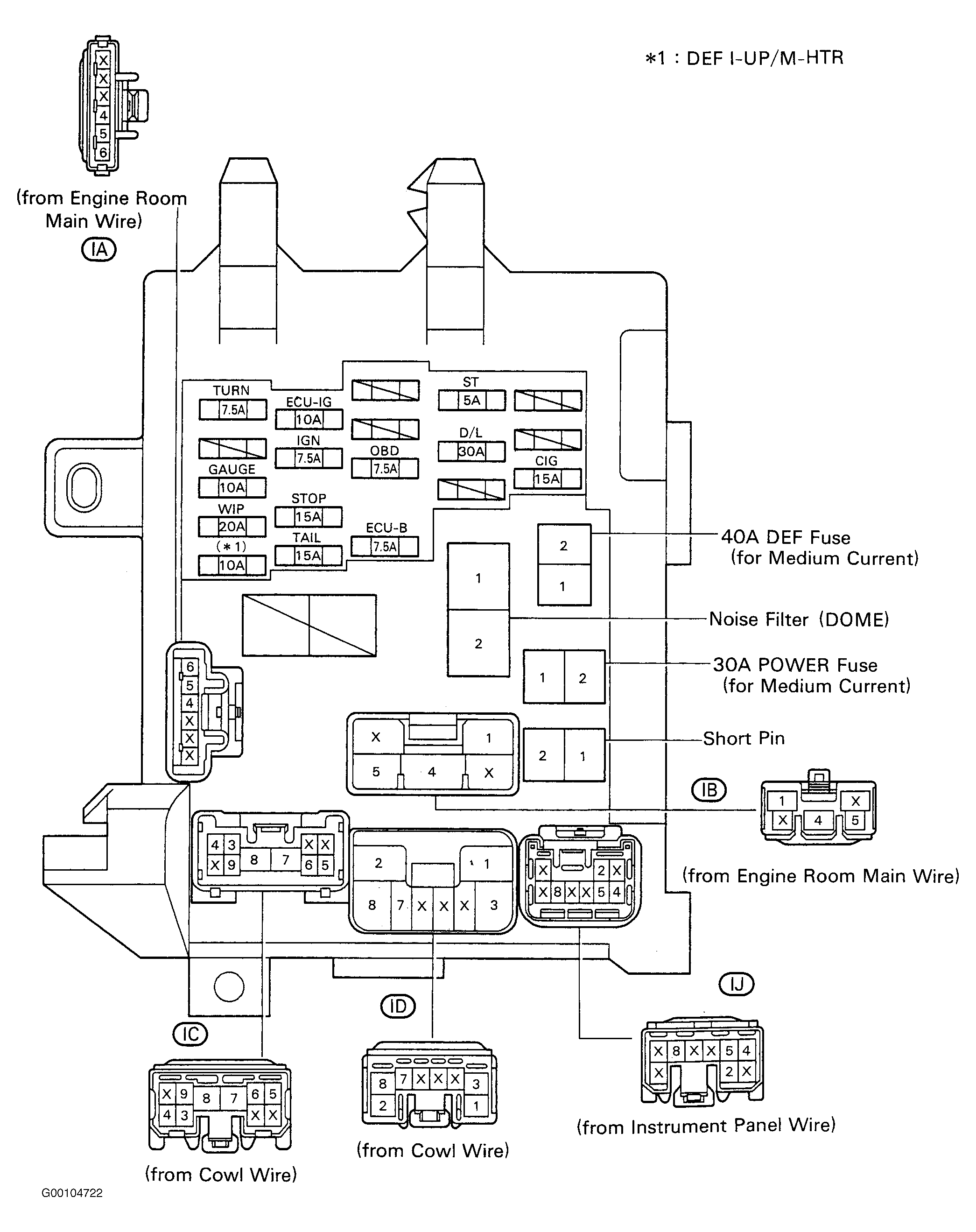

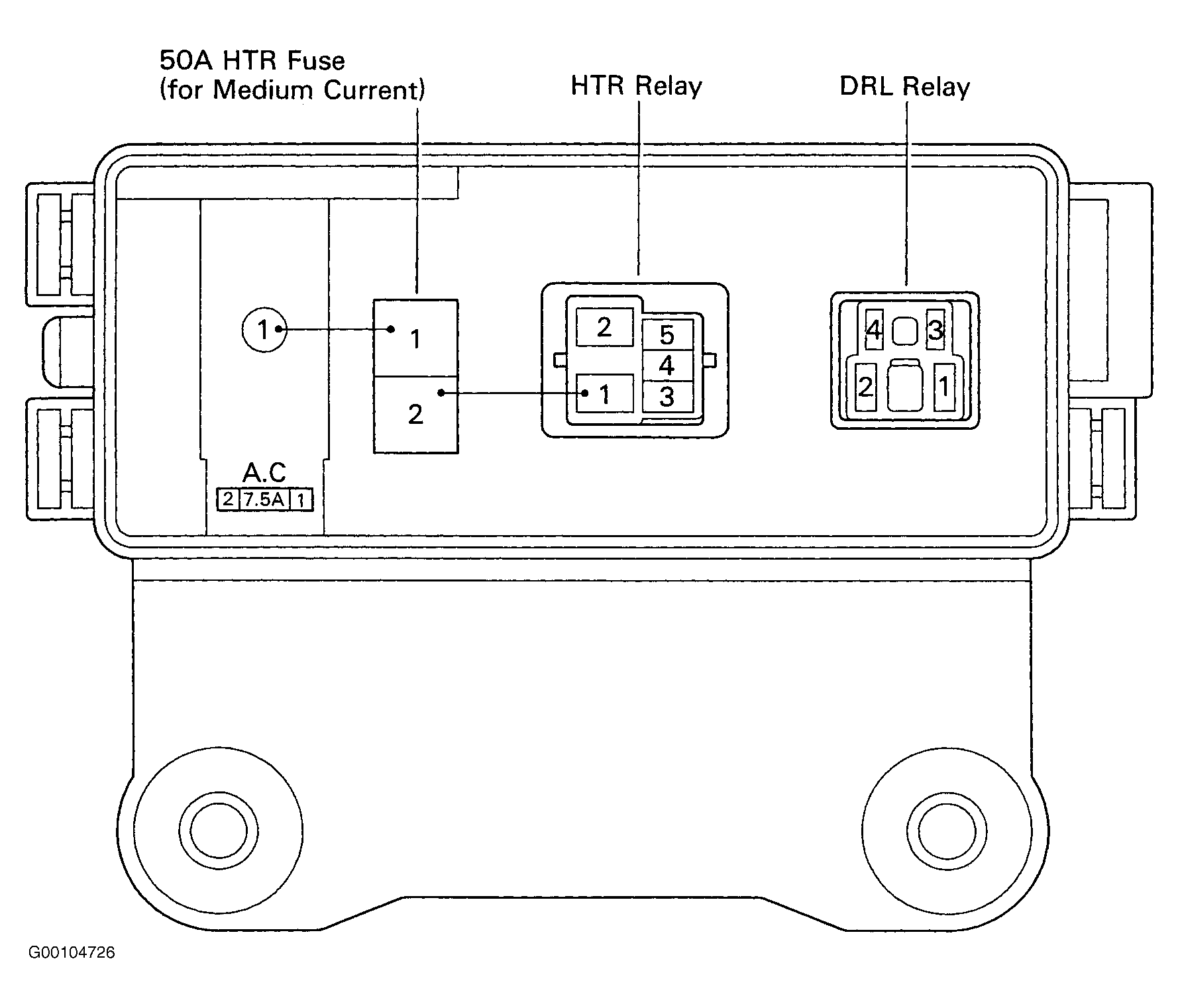

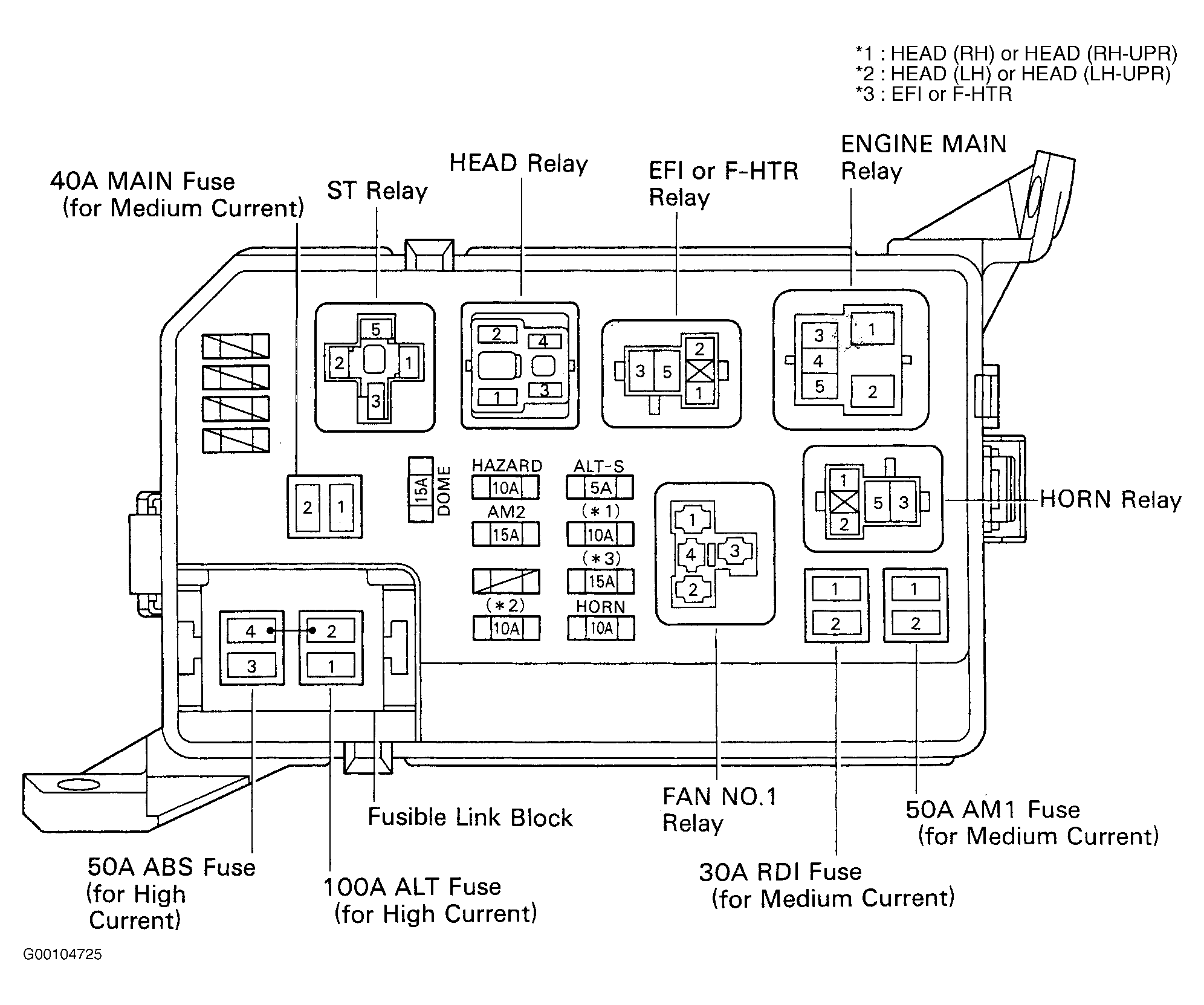

NOTE: To identify instrument panel J/B components, see Figure. To identify engine room No. 5. components, see Figure. To identify engine room J/B components, see Figure. To identify engine room R/B No. 6 components, see Figure.

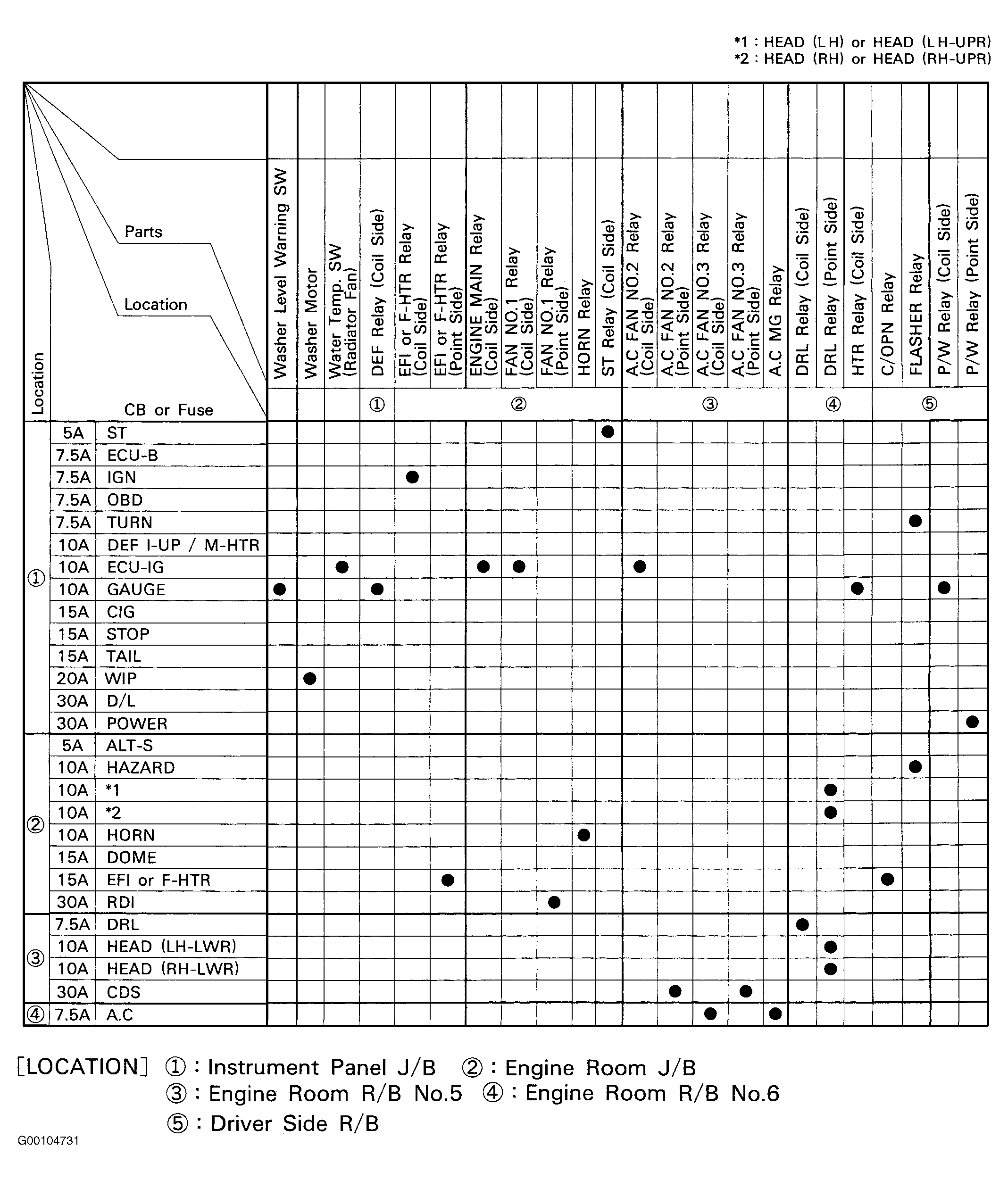

Fig 1: Power Source Legend (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

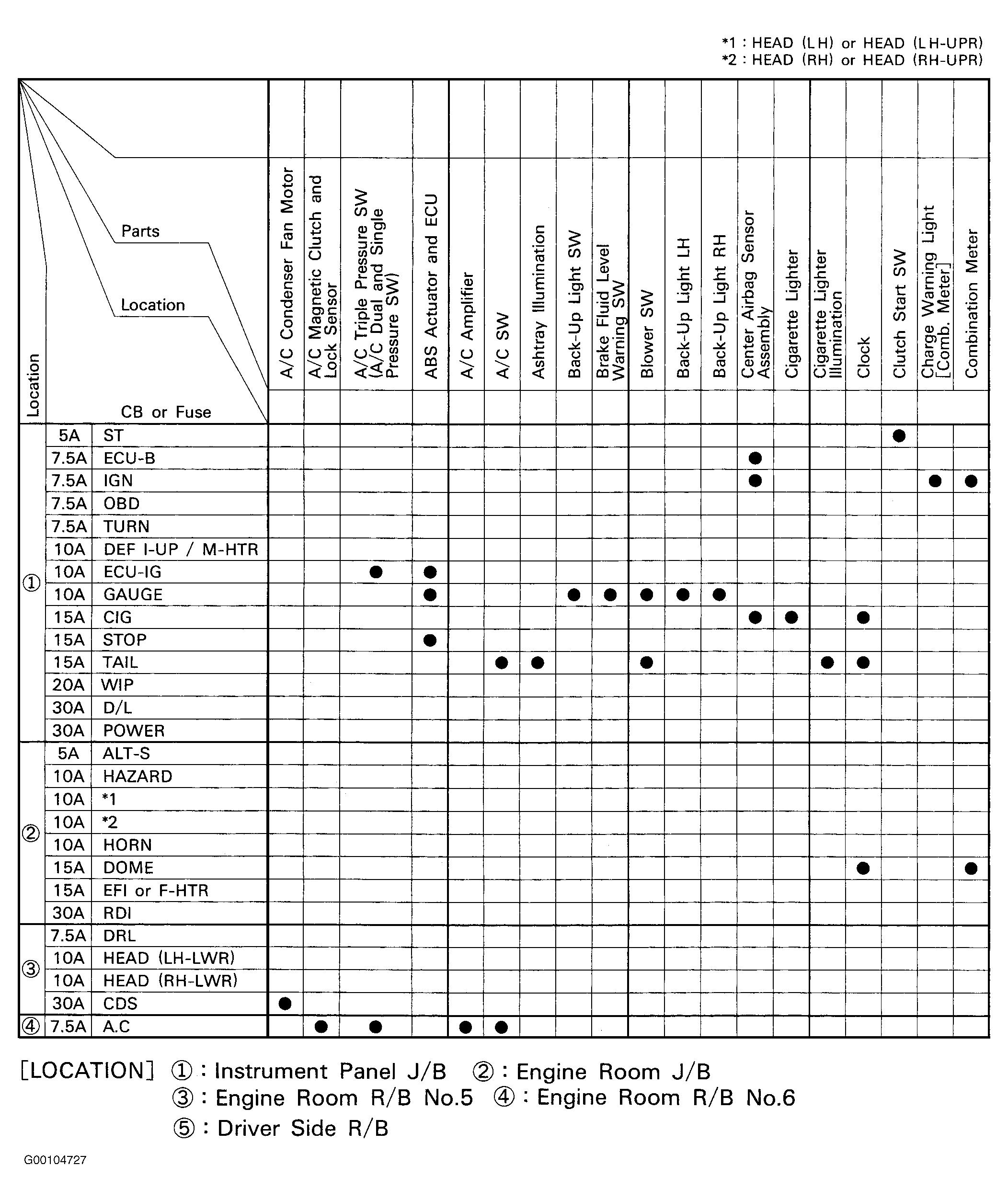

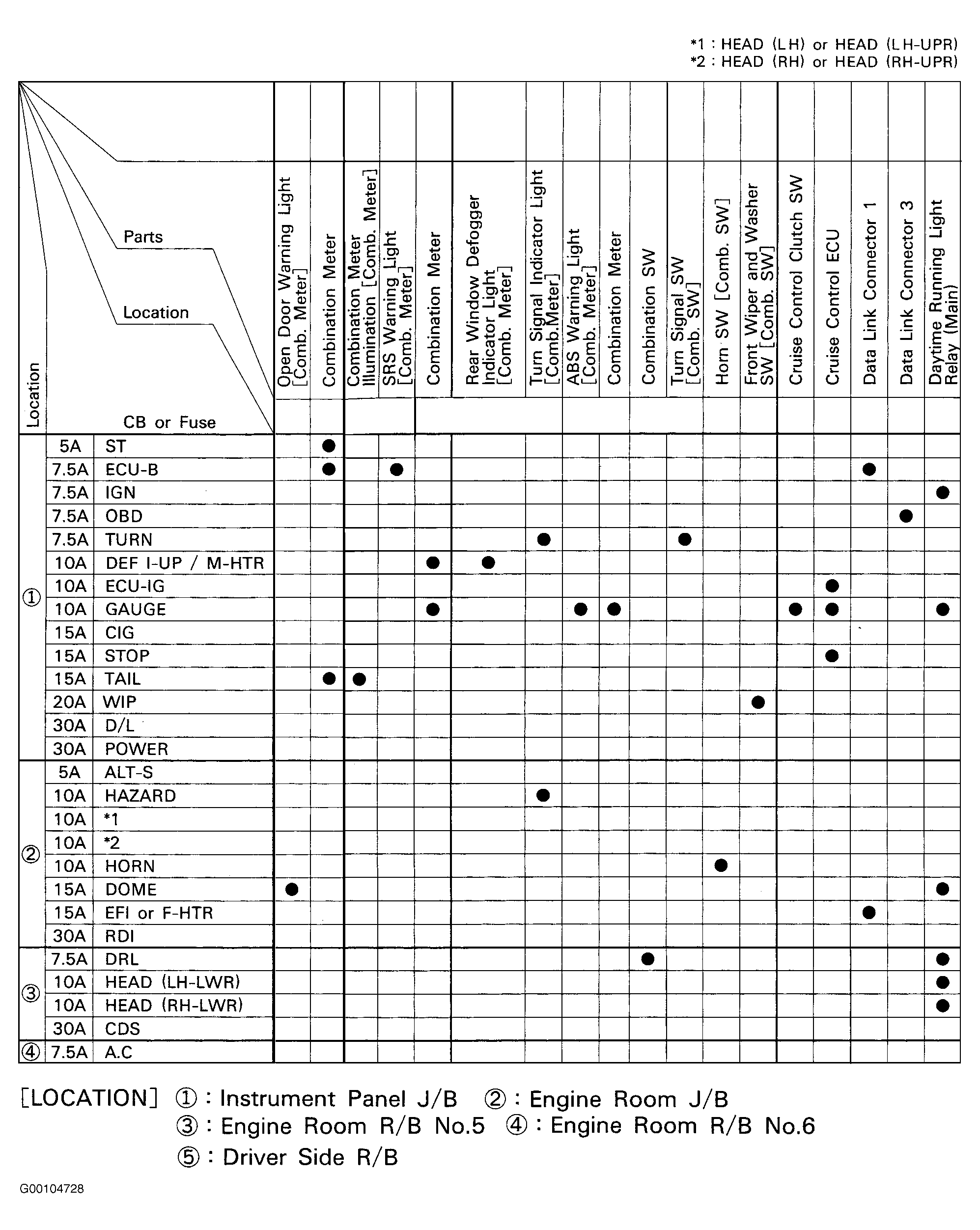

Fig 2: Power Source Legend (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

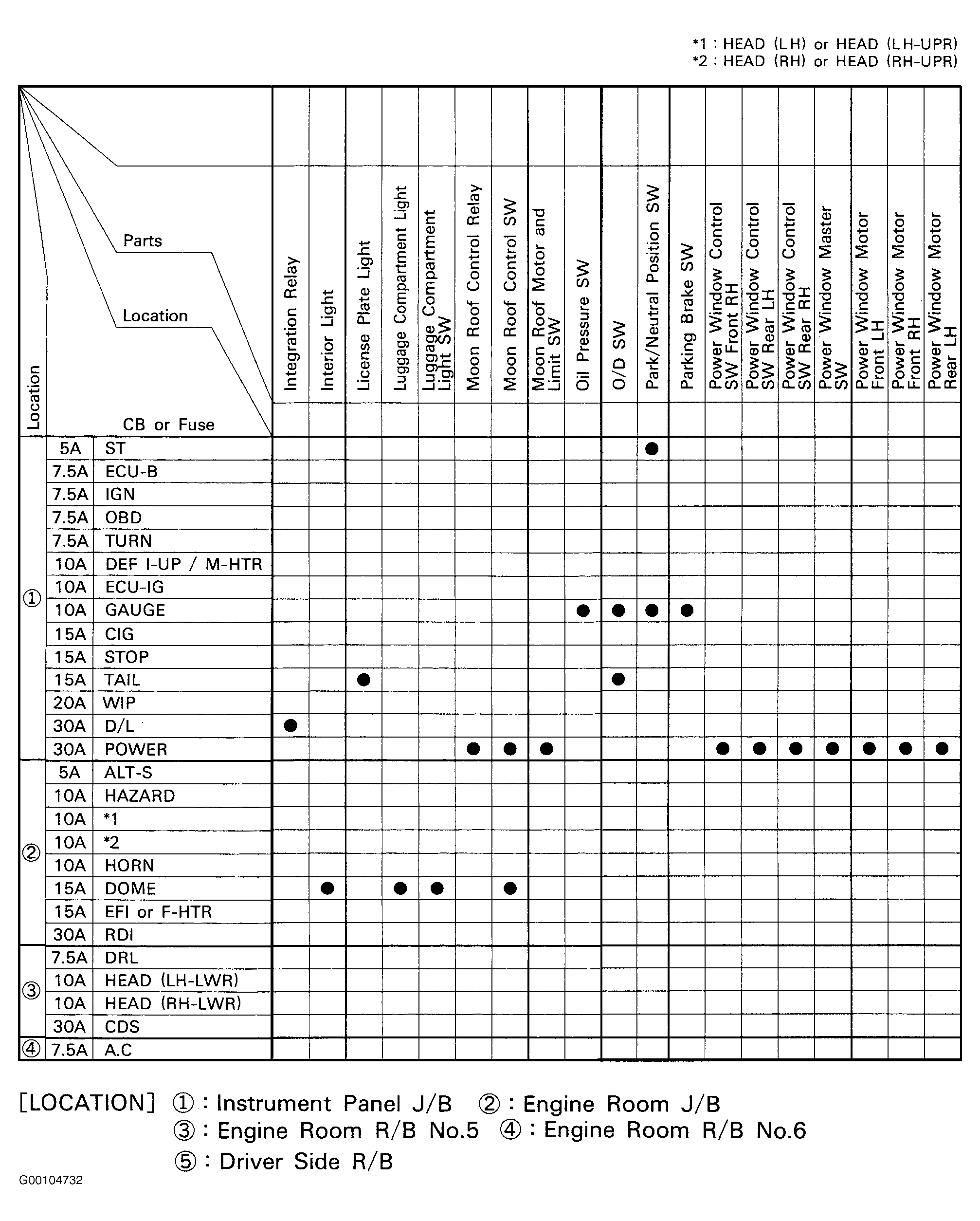

Fig 3: Power Source Legend (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Power Source Legend (4 Of 6)

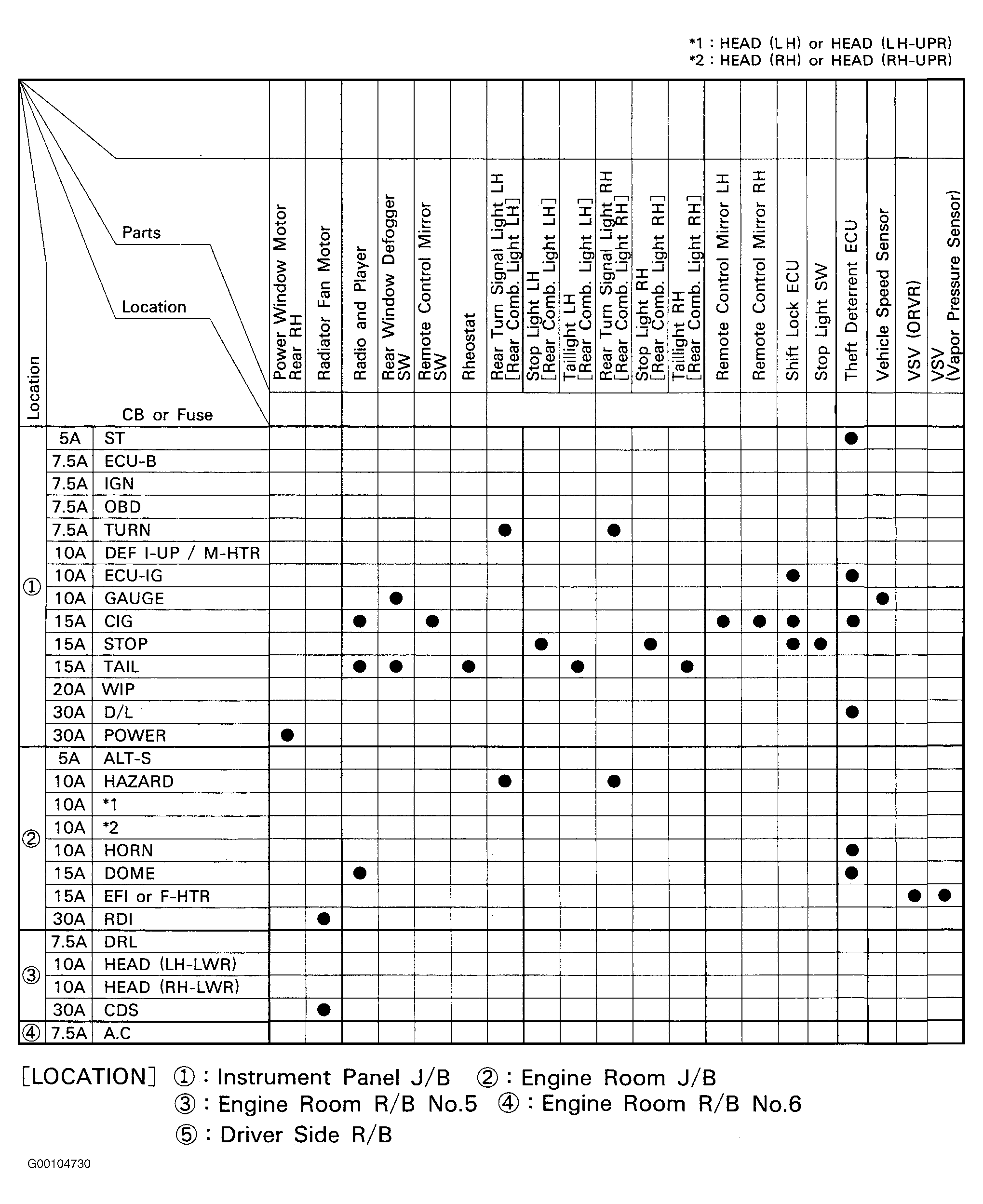

Fig 5: Power Source Legend (5 Of 6)

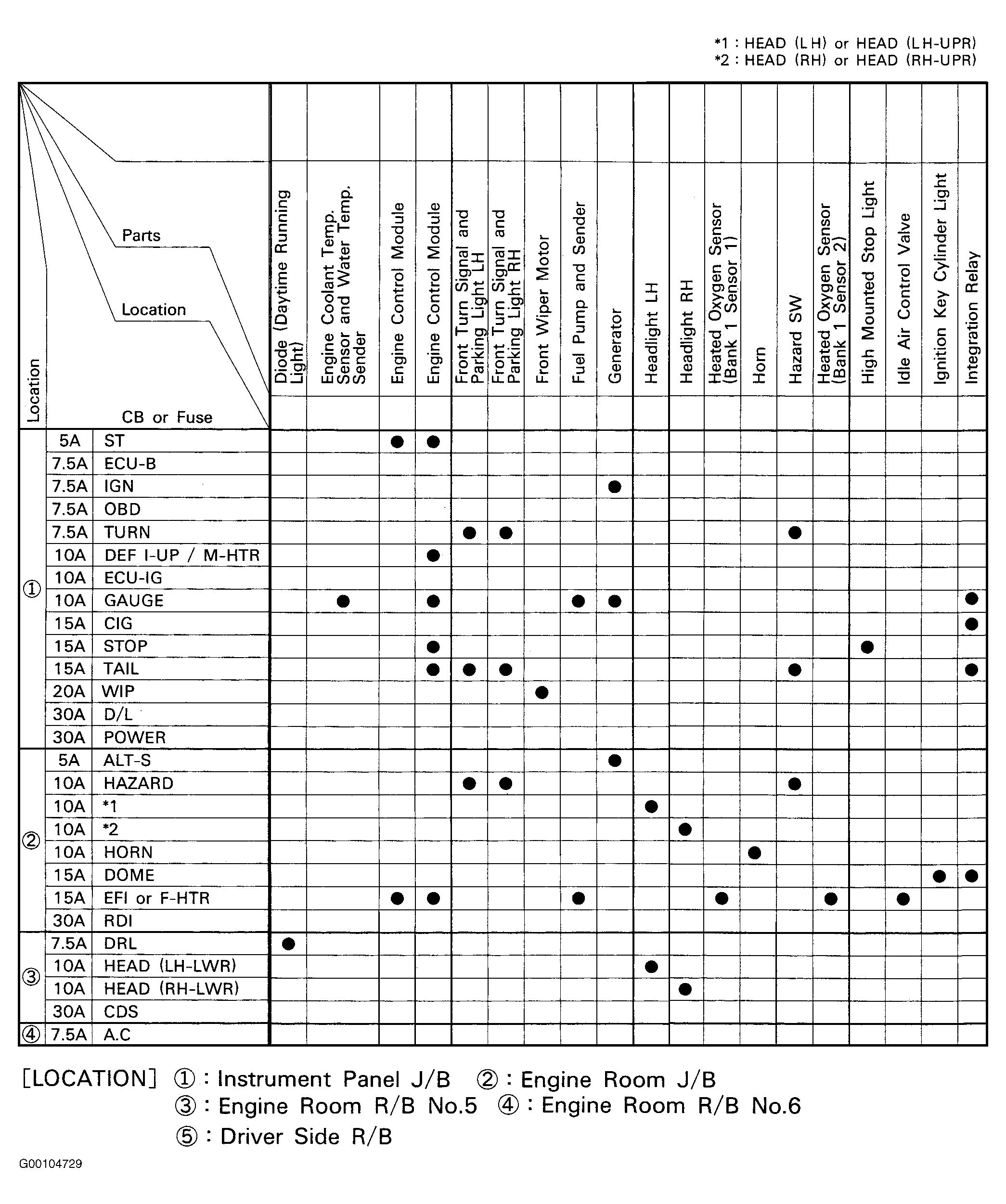

Fig 6: Power Source Legend (6 Of 6)
