Power Source (Current Flow Chart)

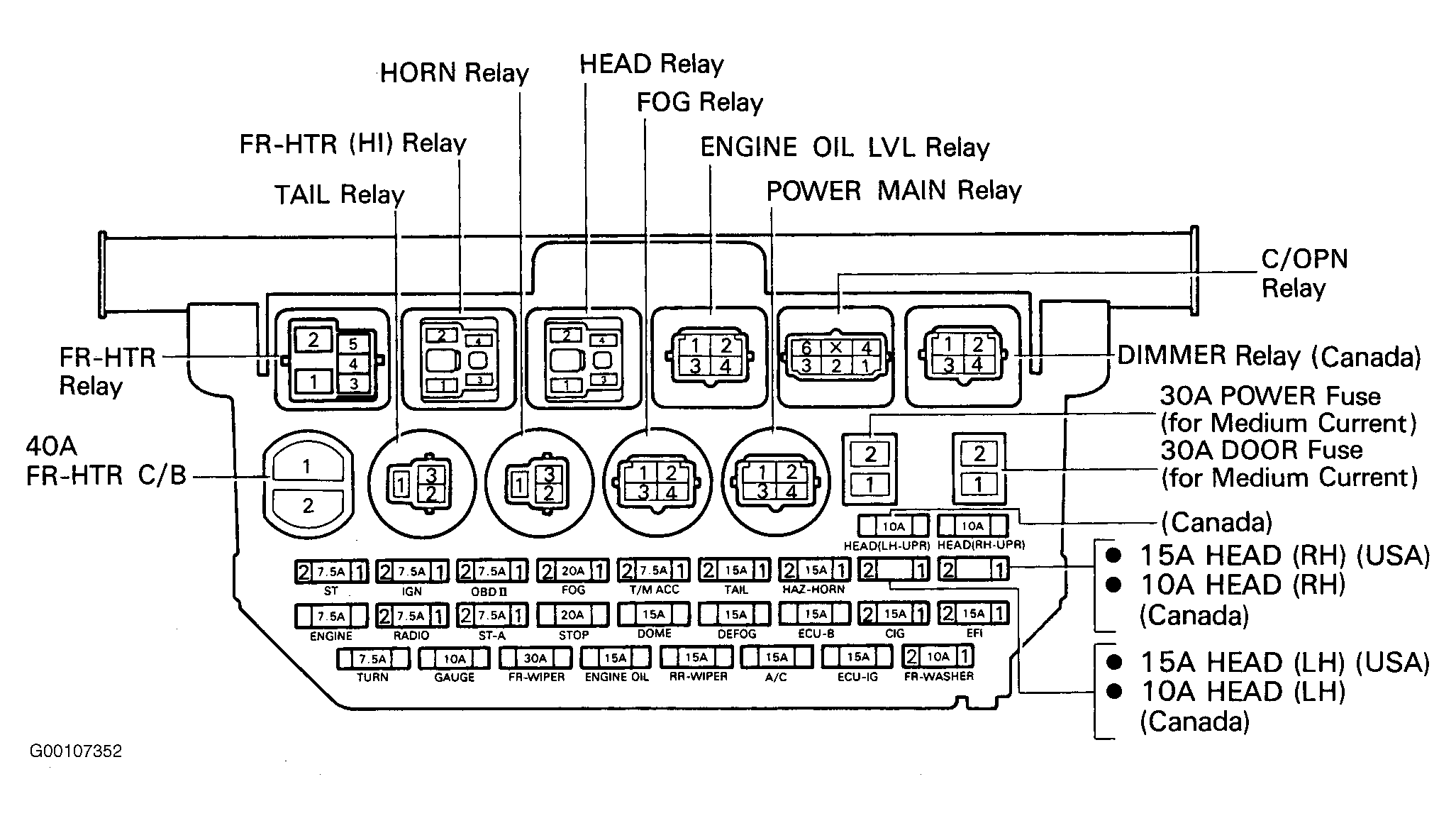

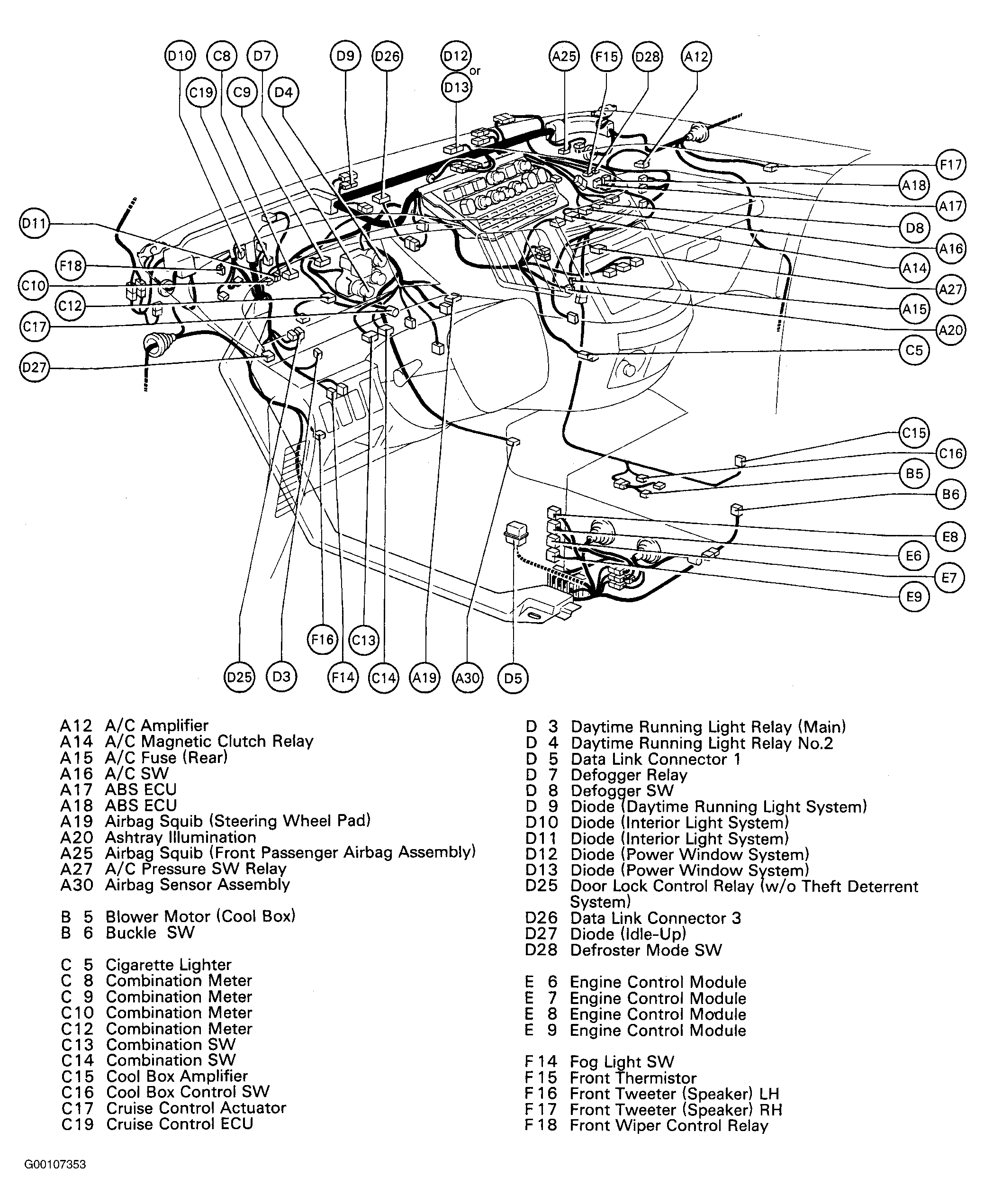

NOTE: To identify J/B No. 1 and R/B No. 1 components, see Figure. To locate A/C fuse, see Figure.

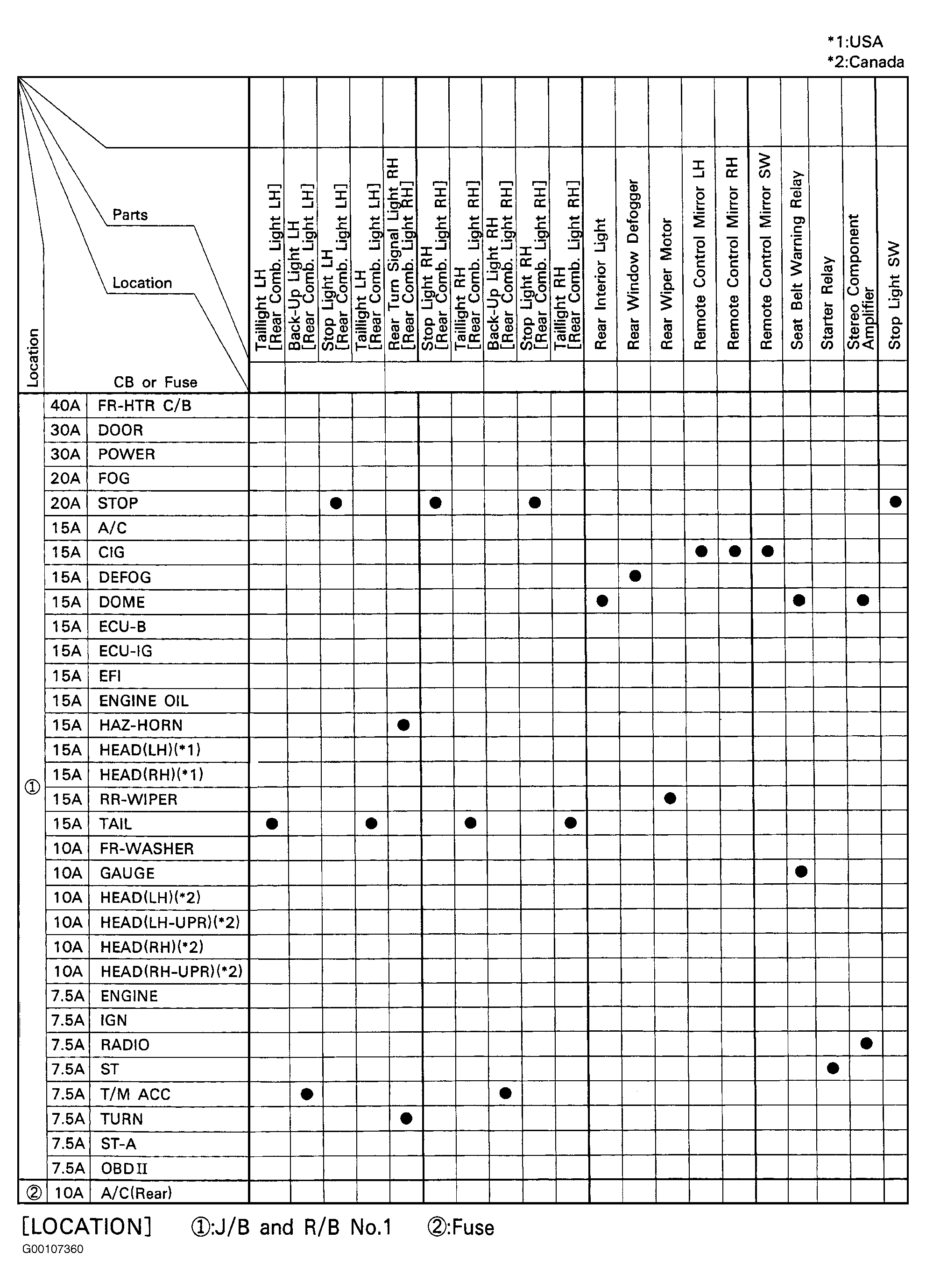

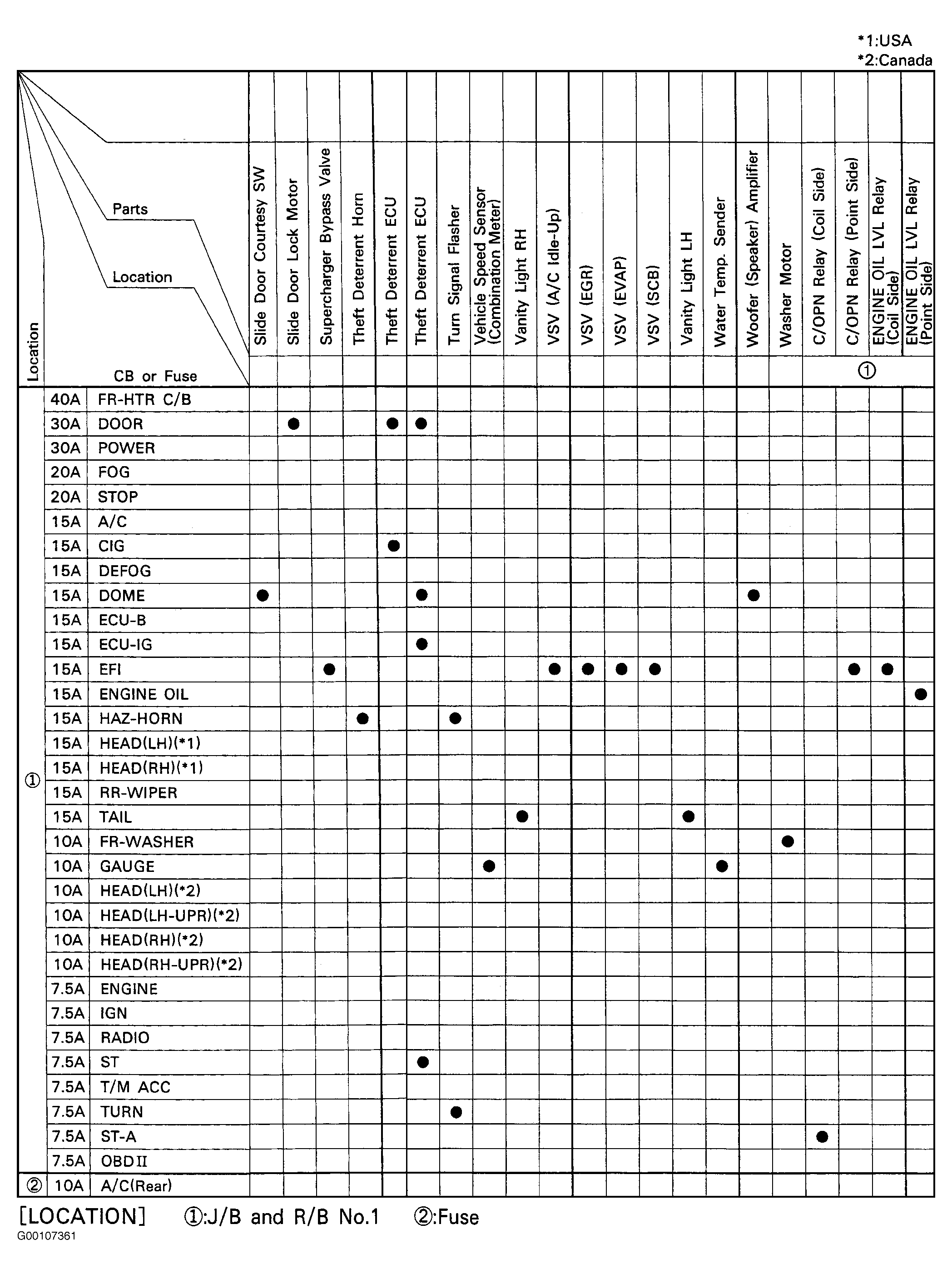

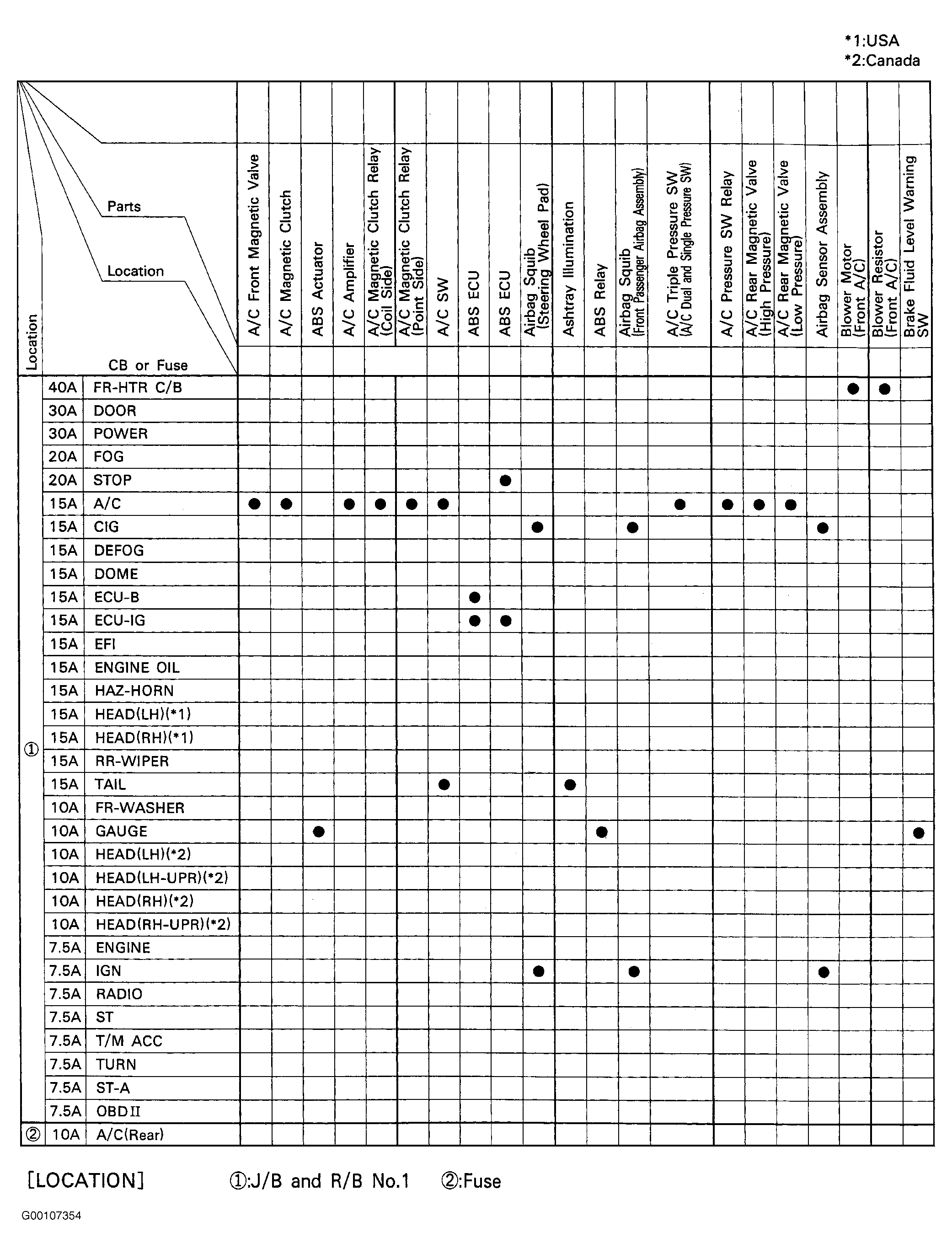

Fig 1: Power Source Legend (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

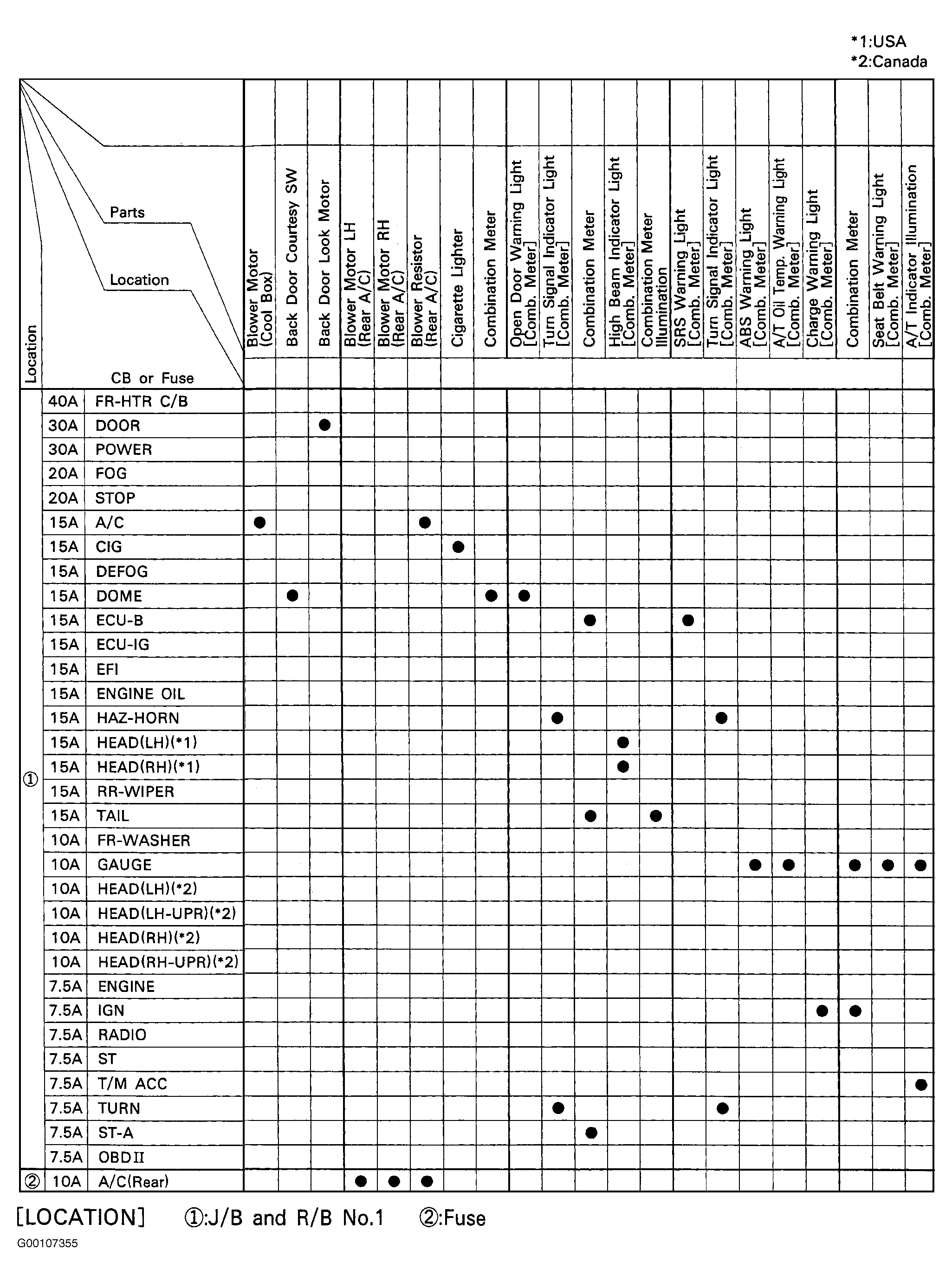

Fig 2: Power Source Legend (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

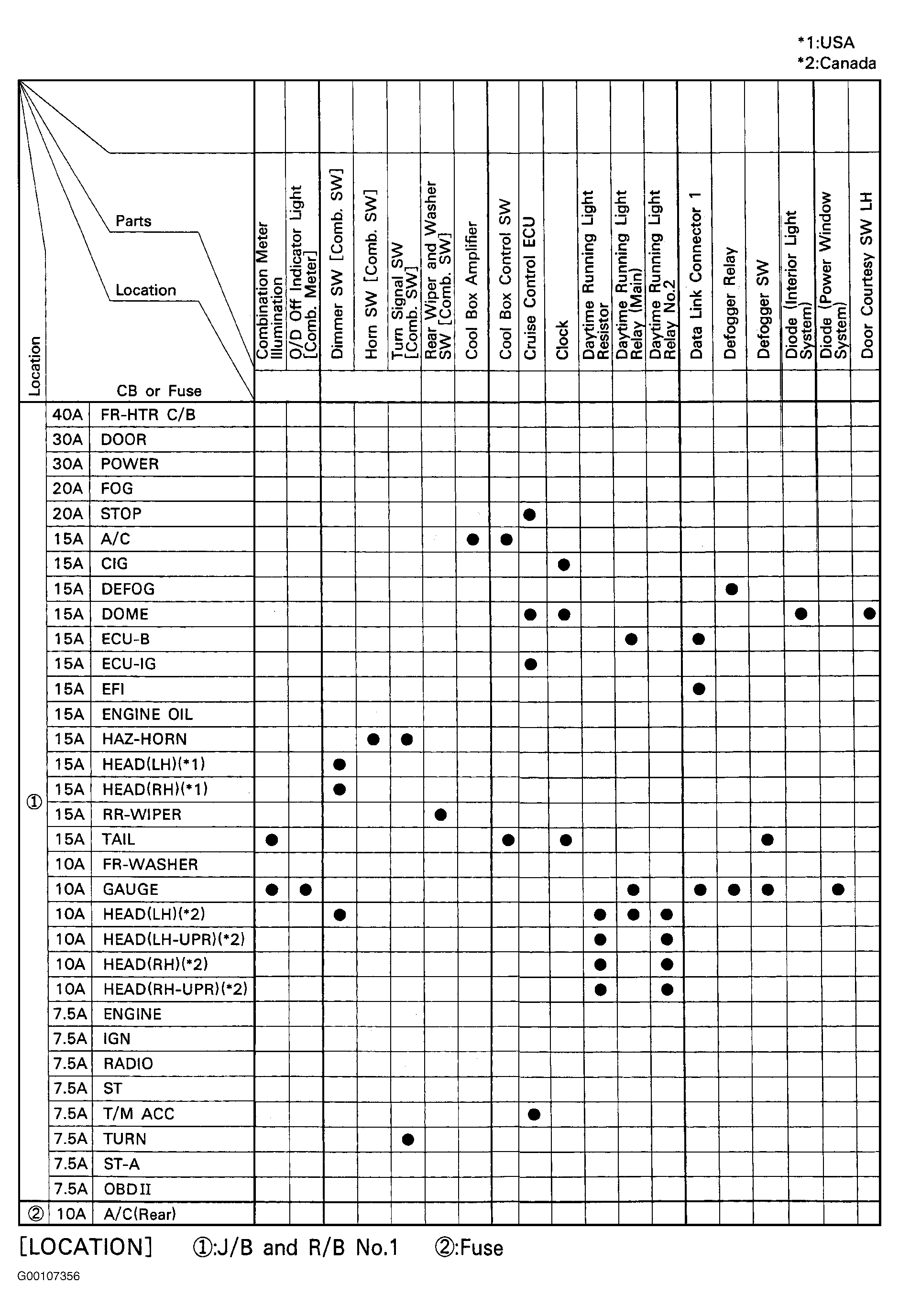

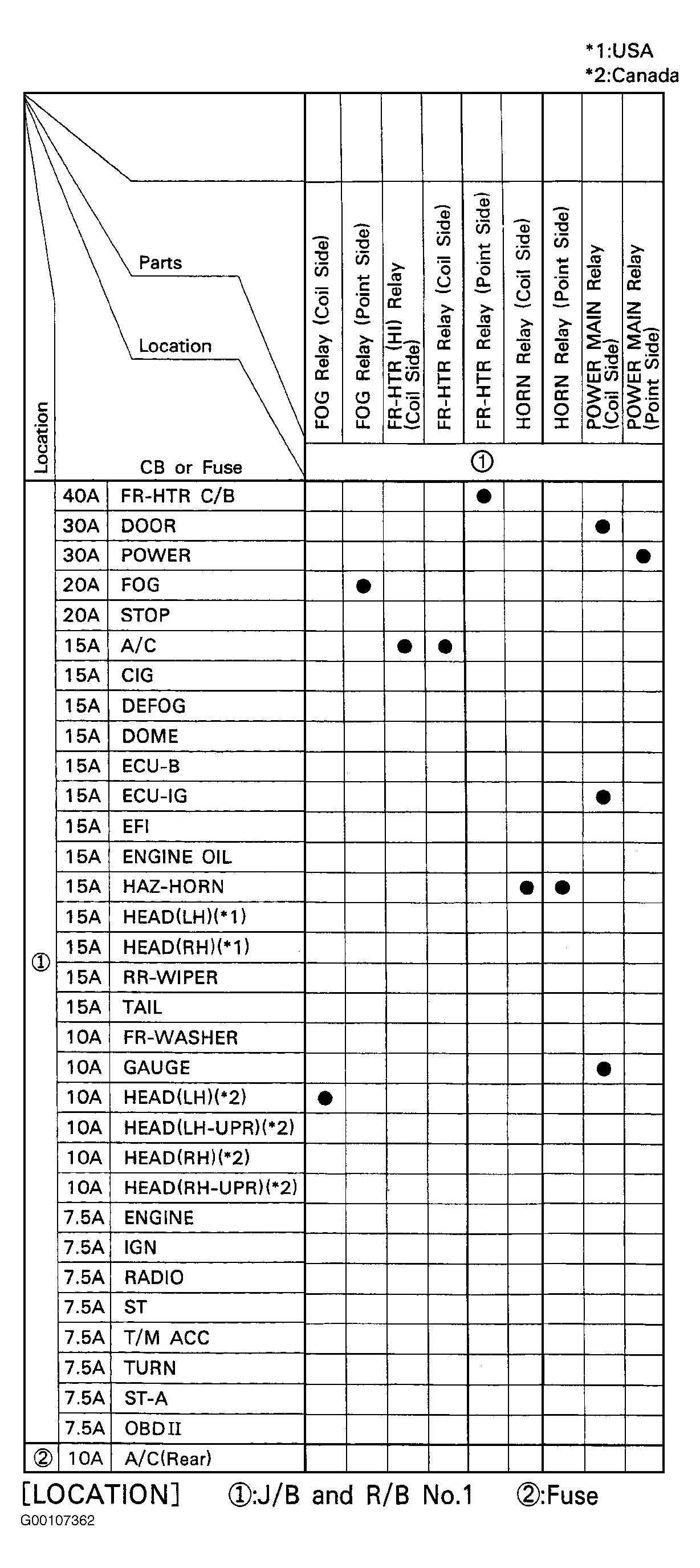

Fig 3: Power Source Legend (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

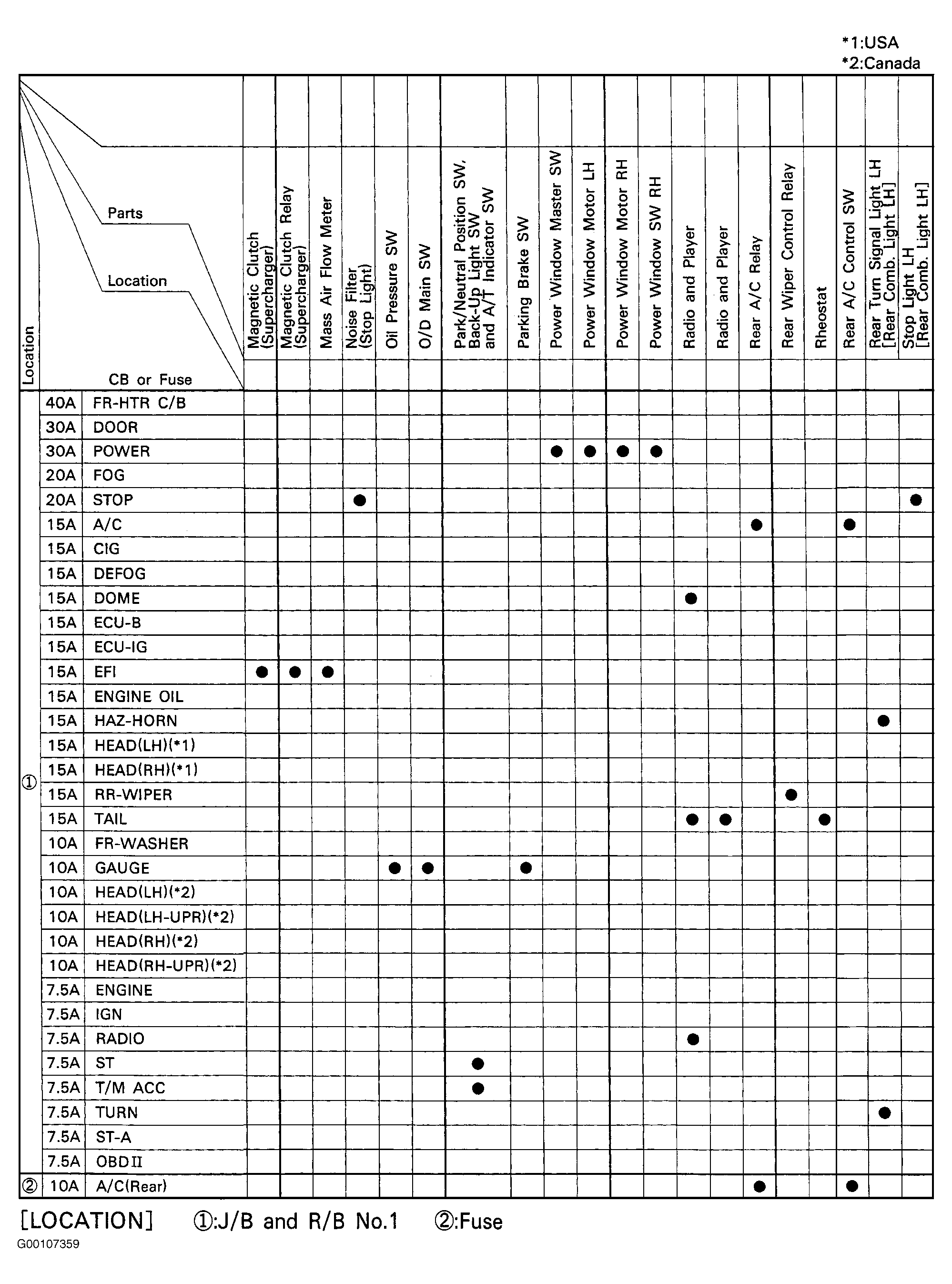

Fig 4: Power Source Legend (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Power Source Legend (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

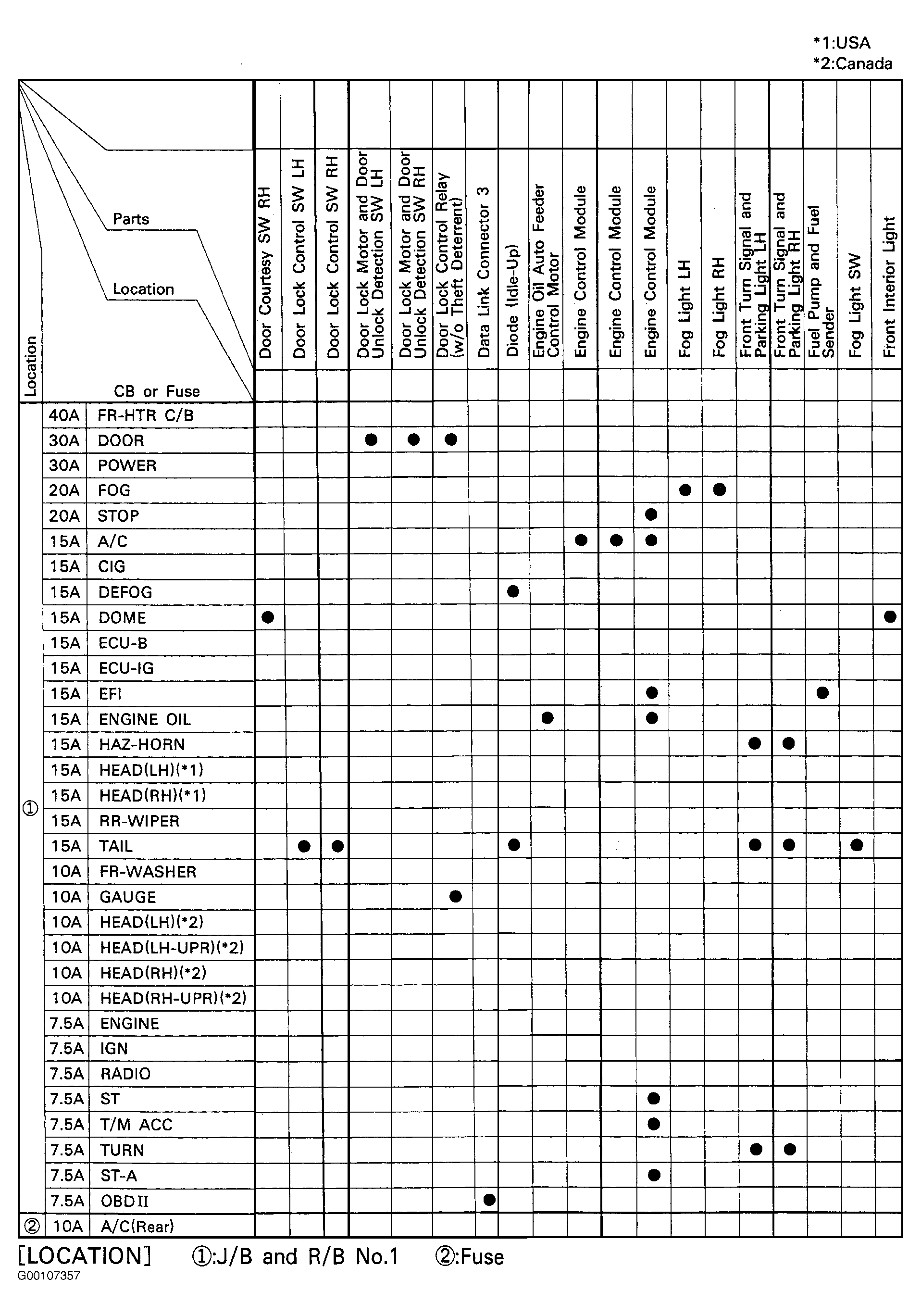

Fig 6: Power Source Legend (6 Of 9)

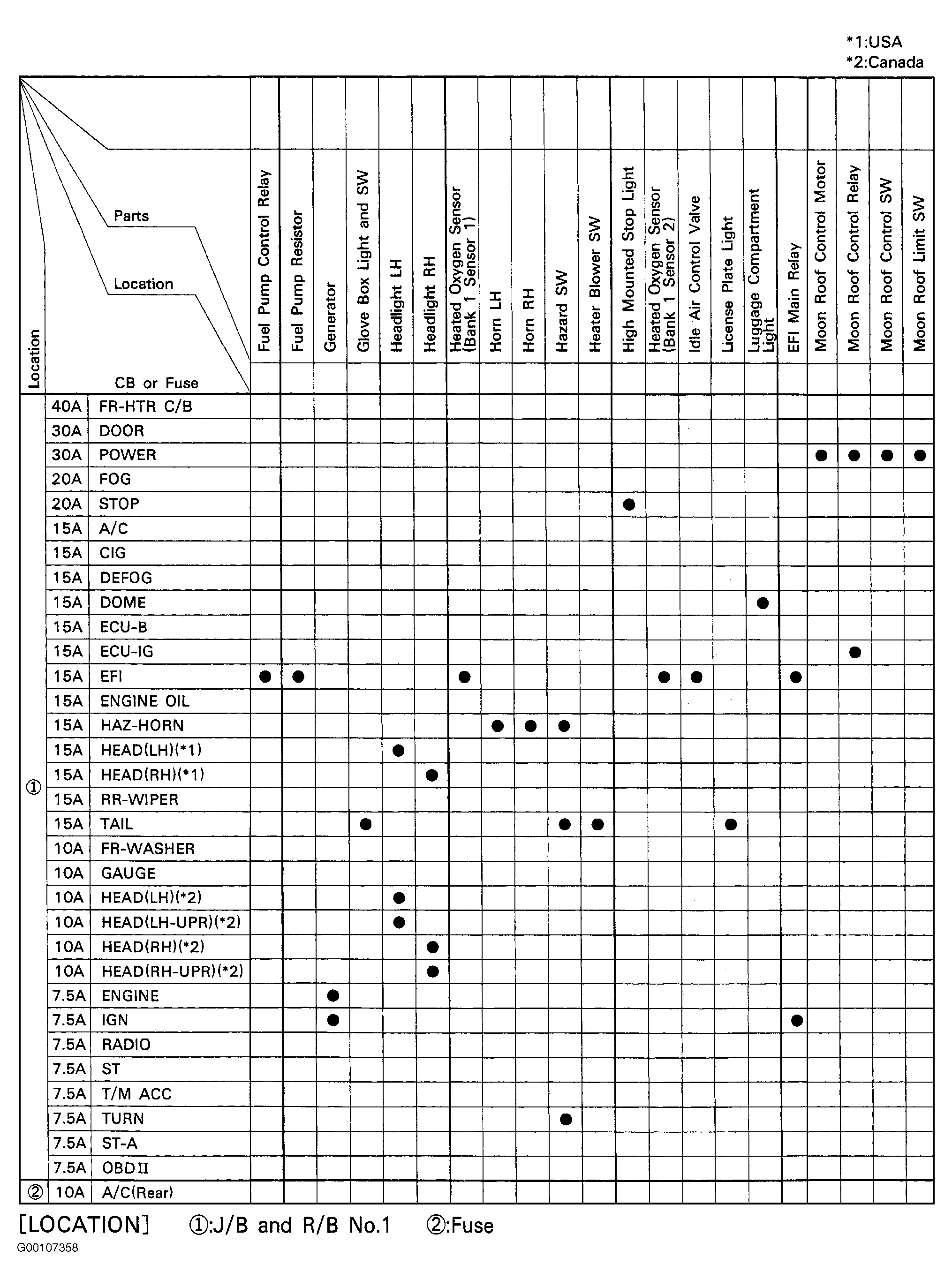

Fig 7: Power Source Legend (7 Of 9)

Fig 8: Power Source Legend (8 Of 9)

Fig 9: Power Source Legend (9 Of 9)
