DTC 47 & 48: Sub-Throttle Position Sensor Circuit

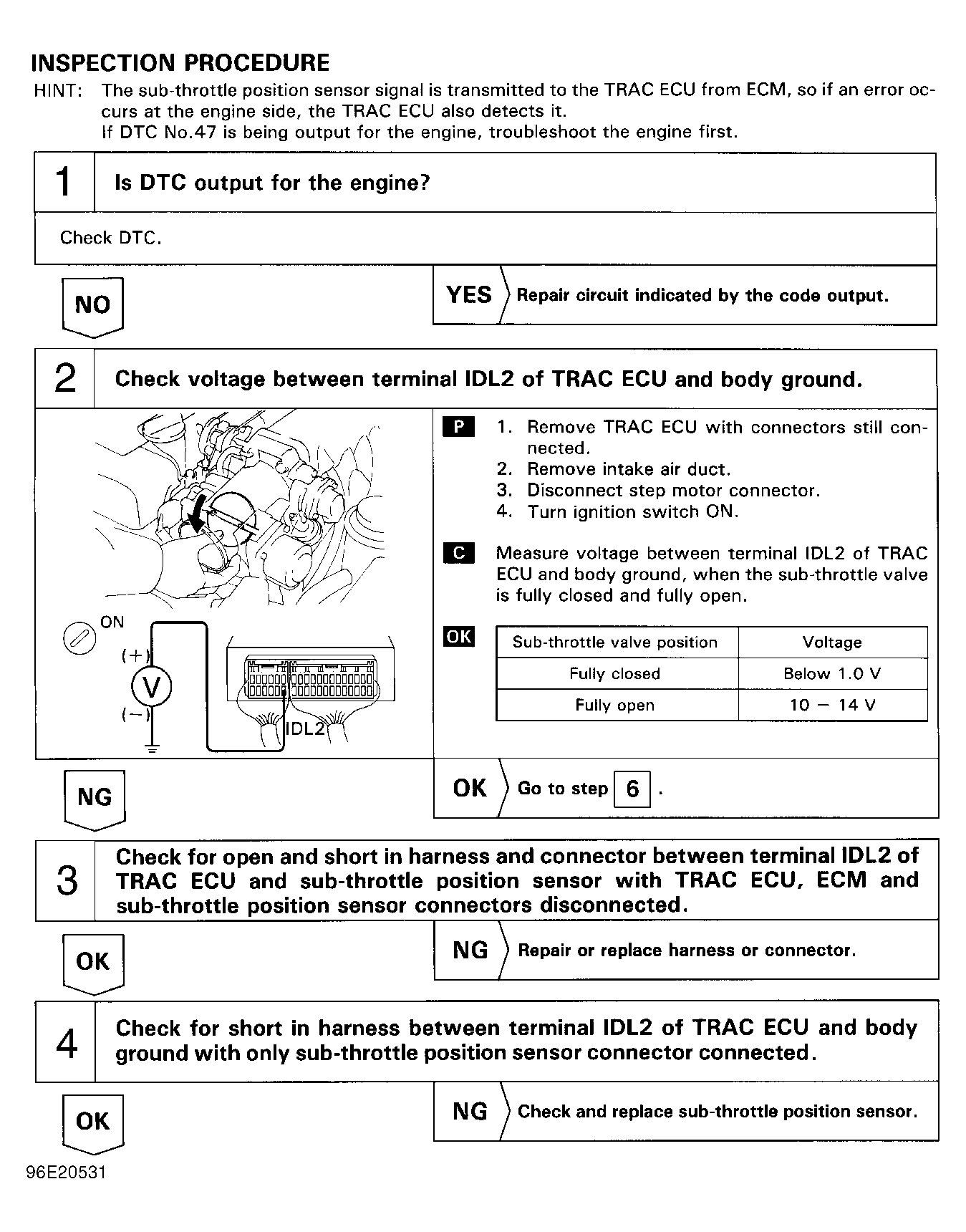

Fig 1: DTC 47 & DTC 48 - SUB-THROTTLE POSITION SENSOR CIRCUIT CHART (1 OF 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

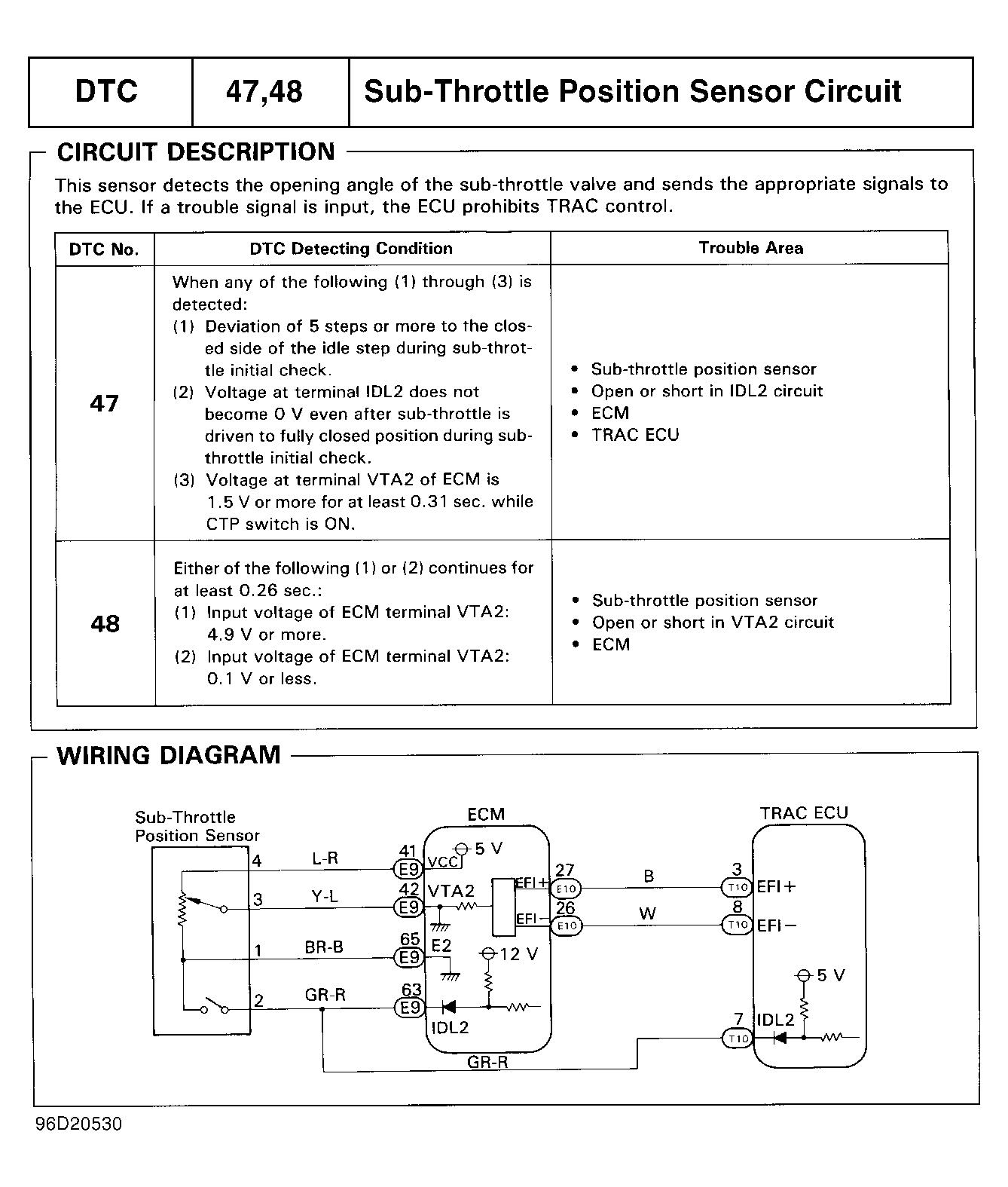

Fig 2: DTC 47 & DTC 48 - SUB-THROTTLE POSITION SENSOR CIRCUIT CHART (2 OF 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

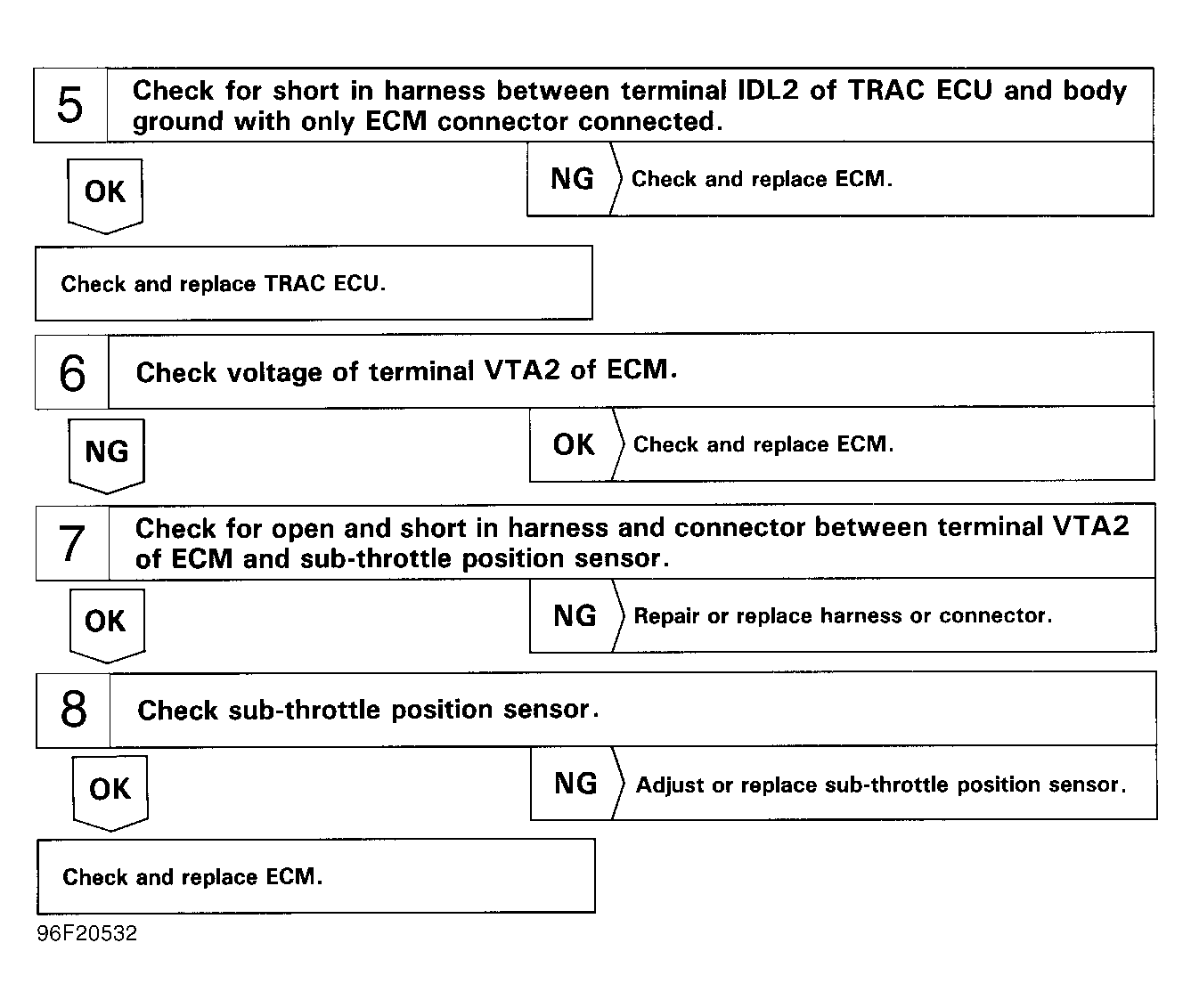

Fig 3: DTC 47 & DTC 48 - SUB-THROTTLE POSITION SENSOR CIRCUIT CHART (3 OF 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
