DTC 45 & 46: Main Throttle Position Sensor Circuit

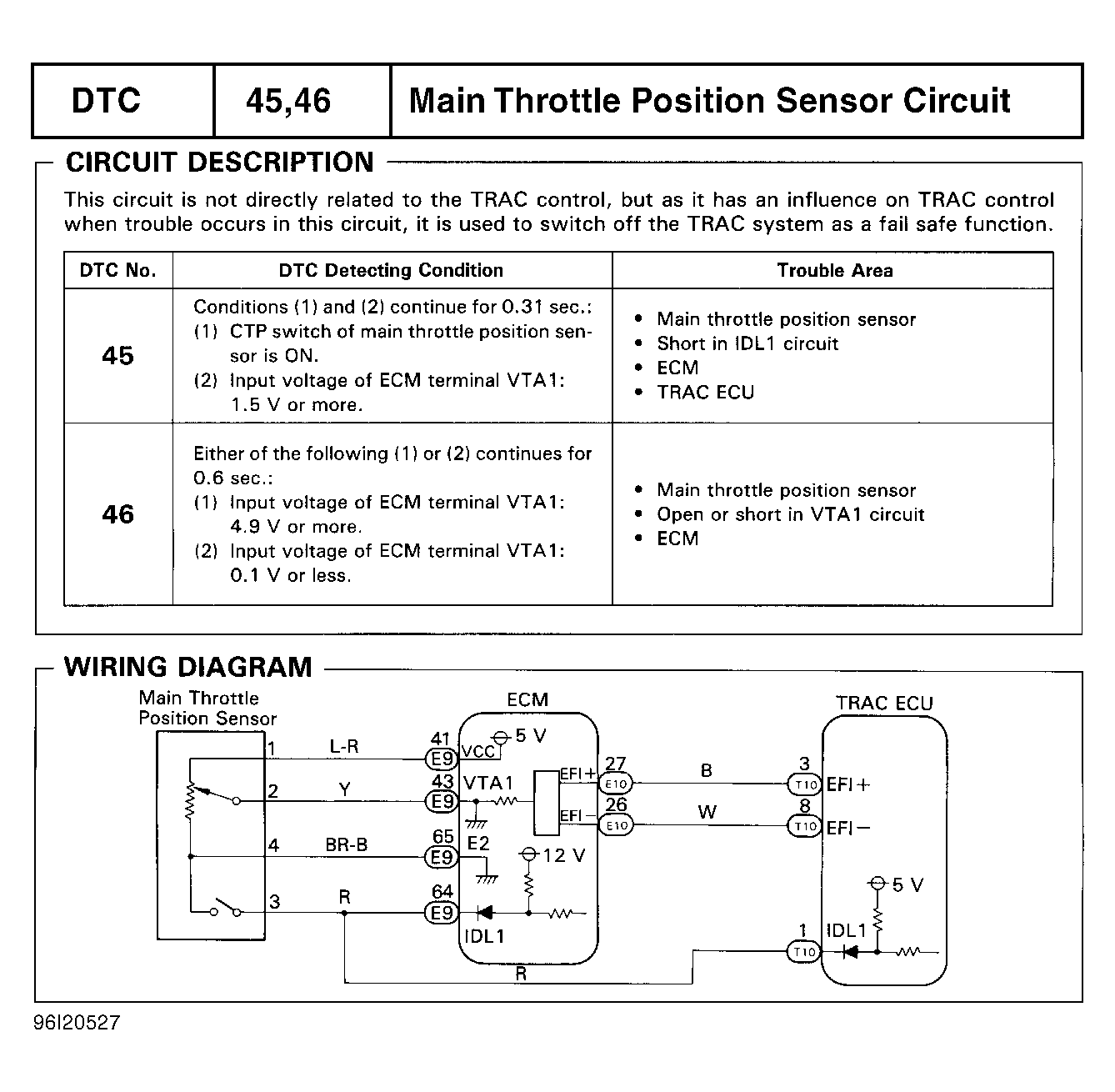

Fig 1: DTC 45 & DTC 46 - MAIN THROTTLE POSITION SENSOR CIRCUIT CHART (1 OF 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

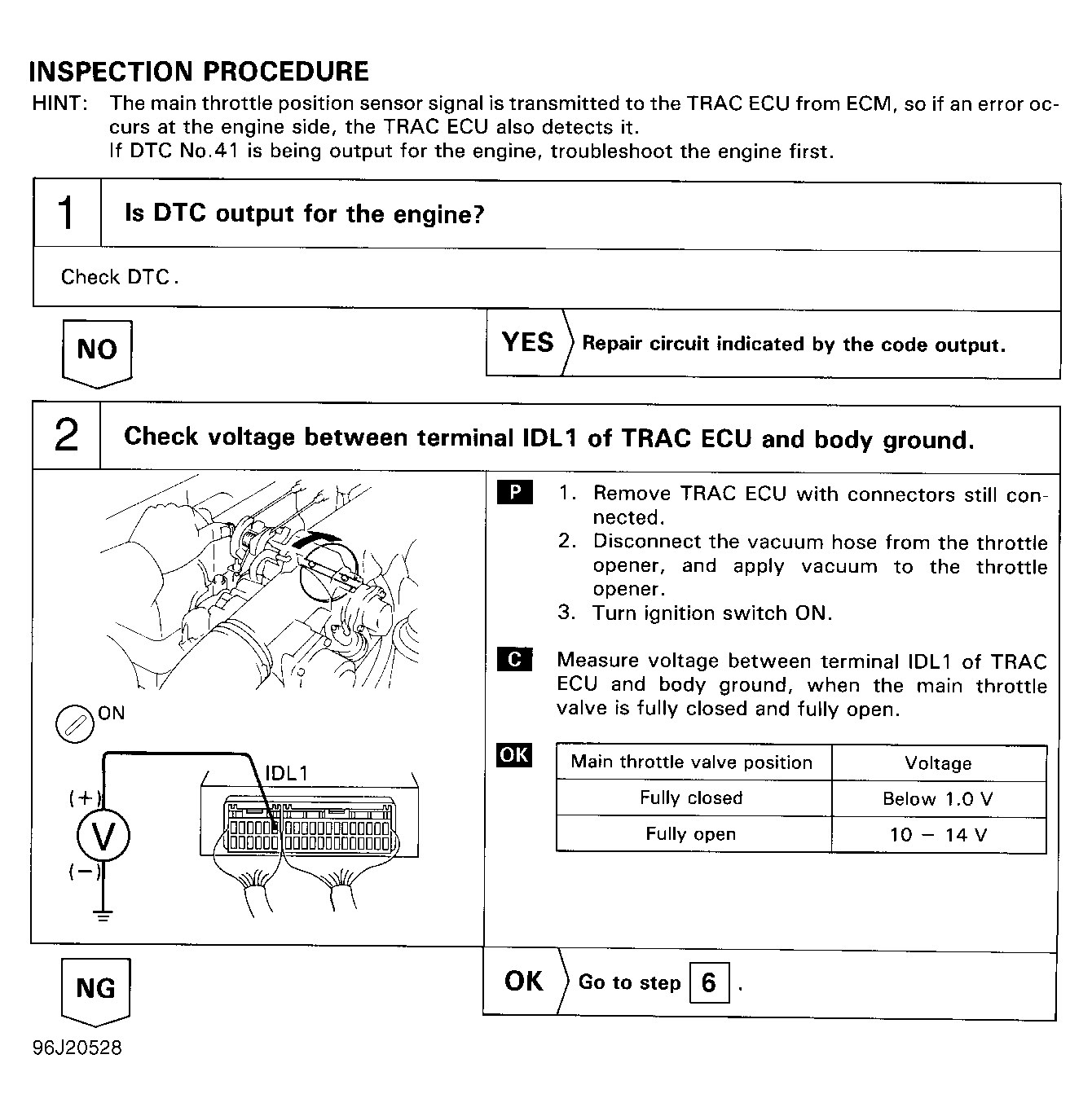

Fig 2: DTC 45 & DTC 46 - MAIN THROTTLE POSITION SENSOR CIRCUIT CHART (2 OF 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

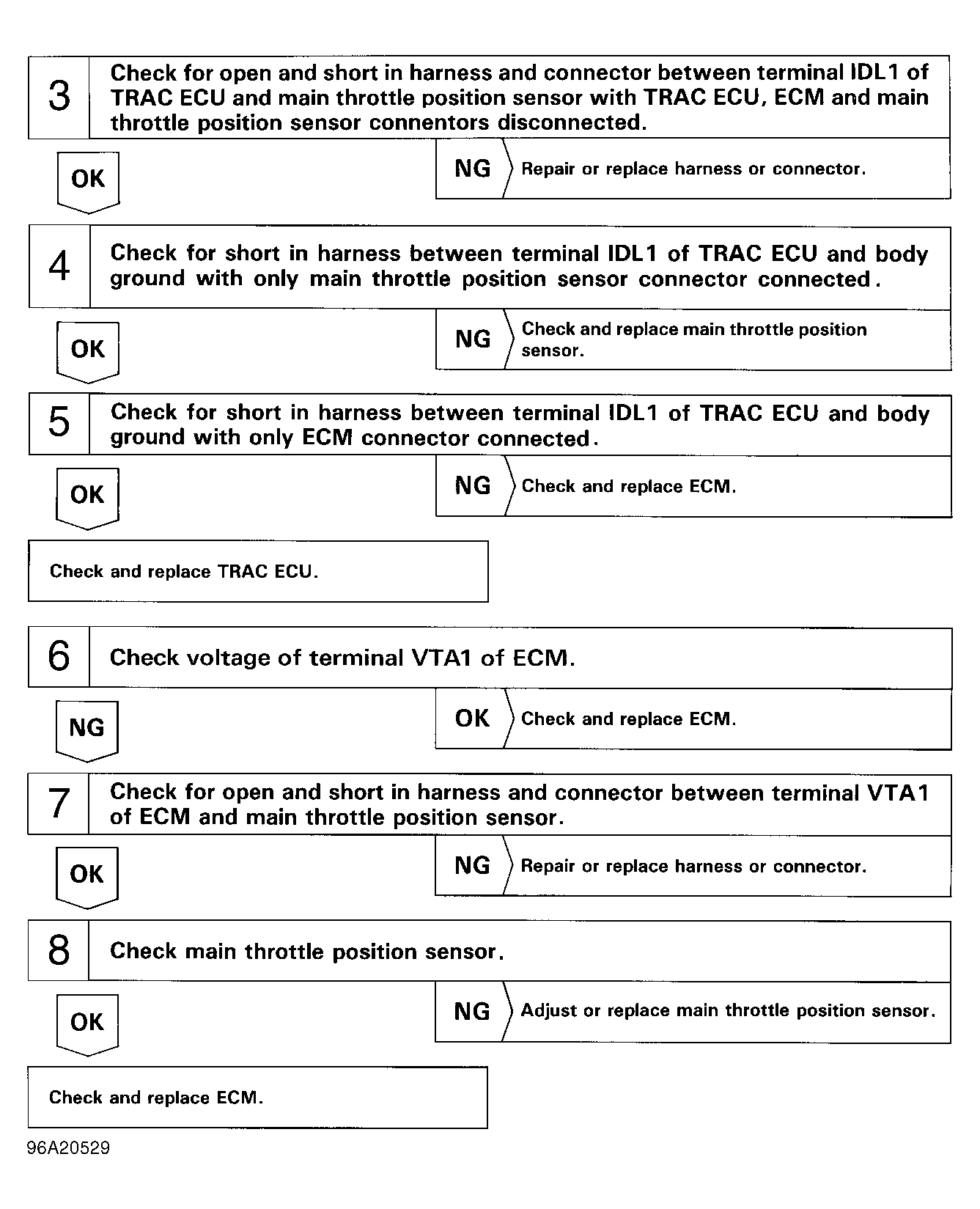

Fig 3: DTC 45 & DTC 46 - MAIN THROTTLE POSITION SENSOR CIRCUIT CHART (3 OF 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
