DTC 44: Ne Signal Circuit

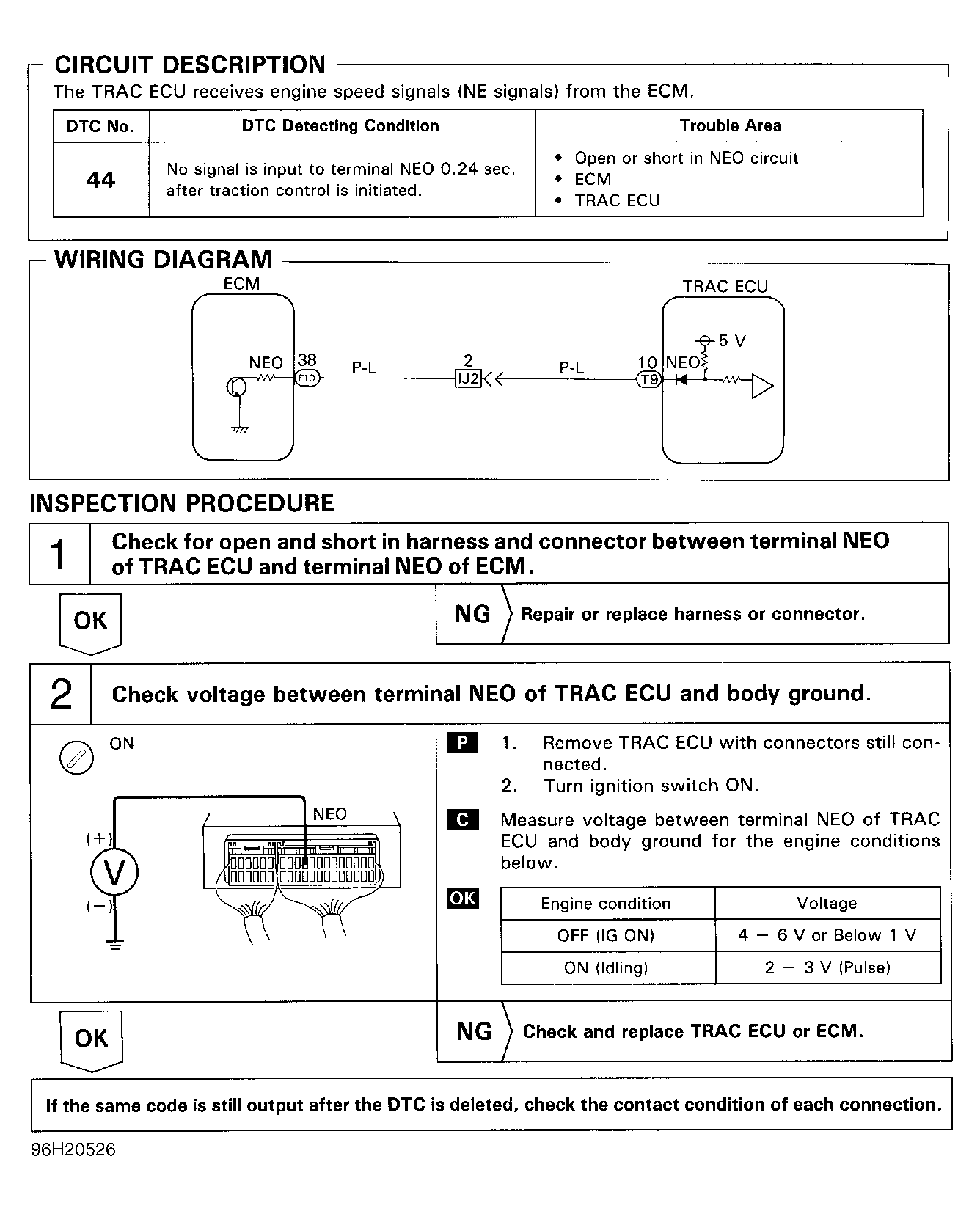

Fig 1: DTC 44 - NE SIGNAL CIRCUIT CHART

G96H20526

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
