DTC 44 - Deceleration Sensor Circuit

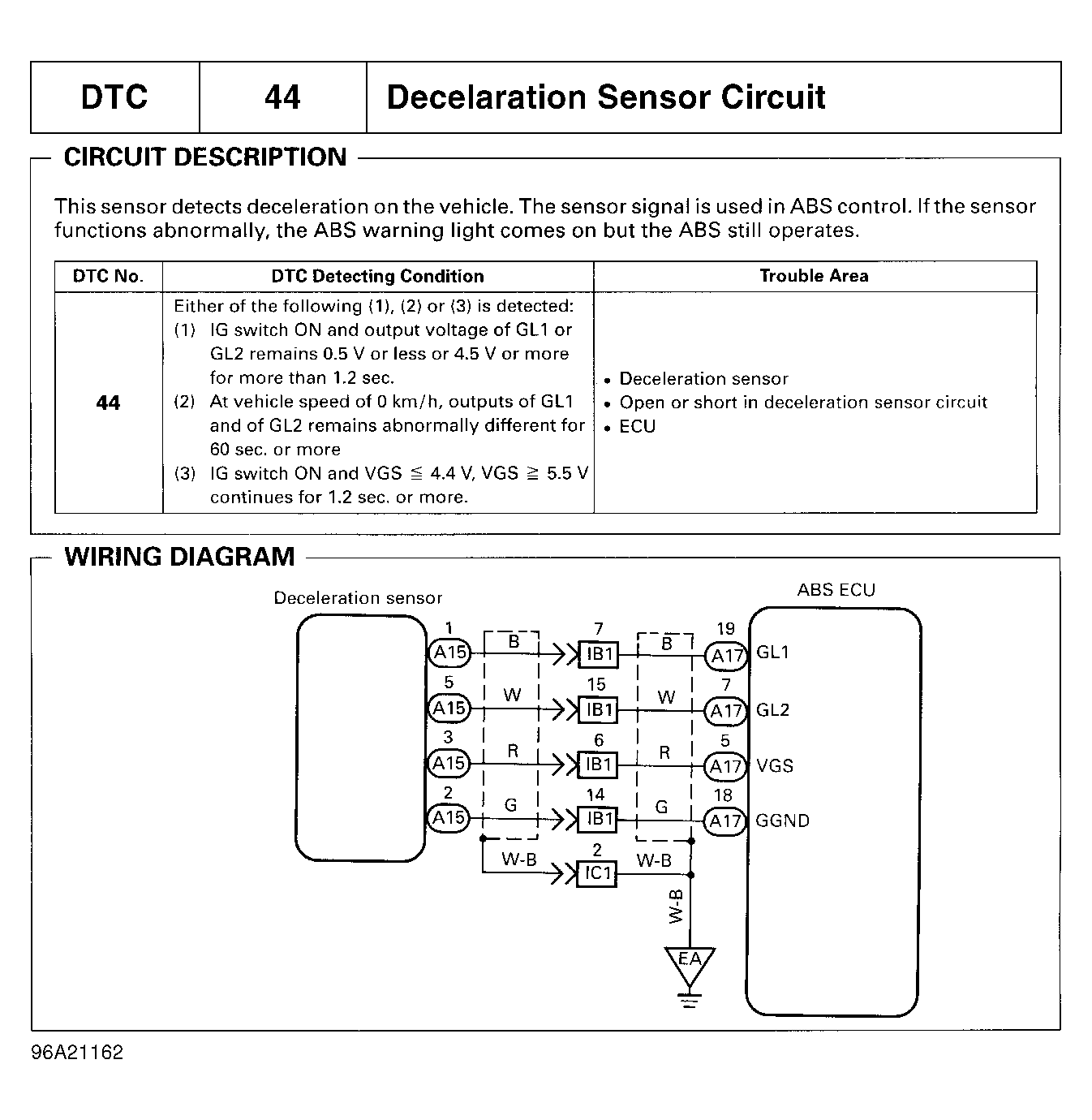

Fig 1: DTC 44 - DECELERATION SENSOR CIRCUIT CHART (1 OF 2)
G96A21162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

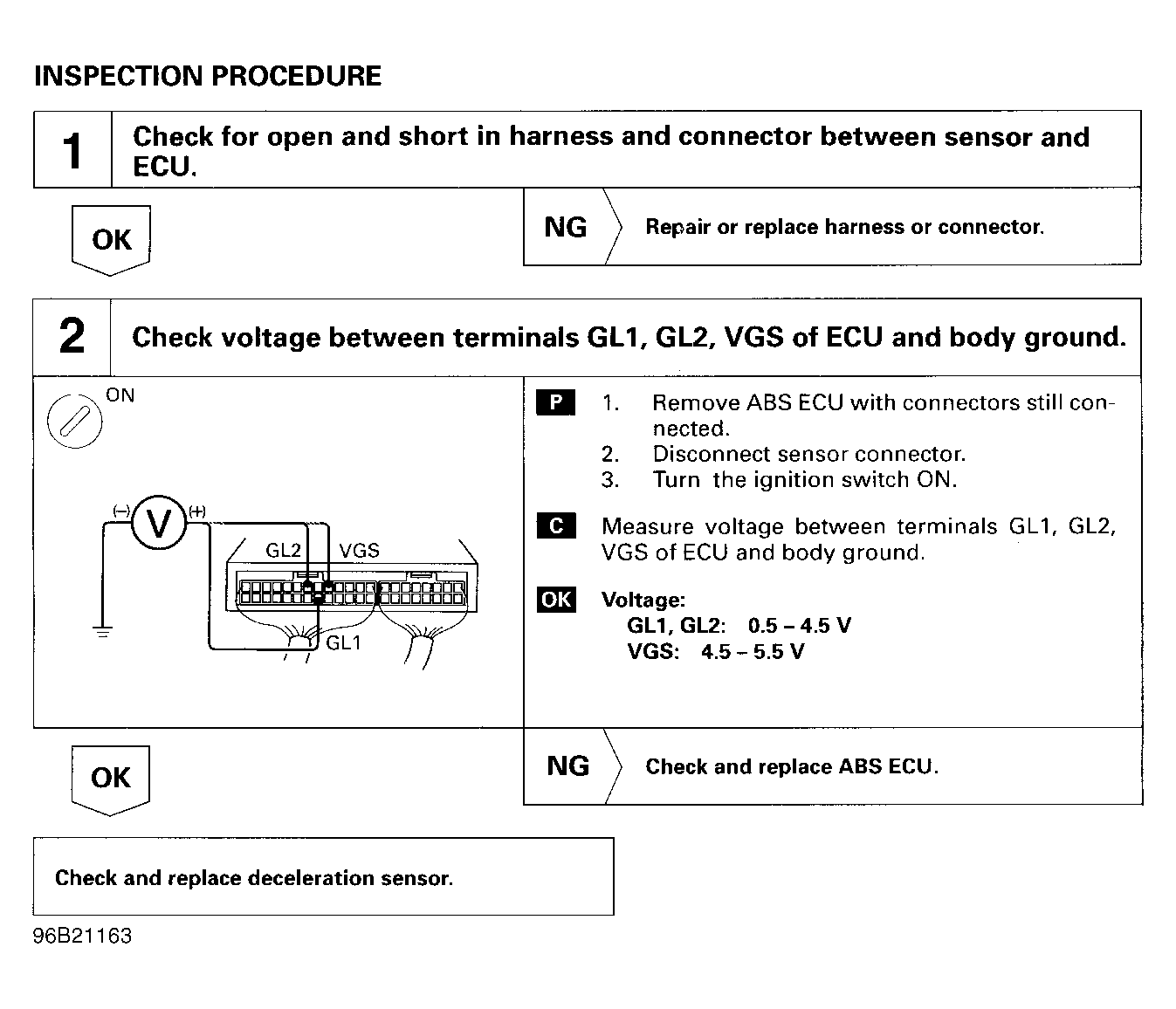

Fig 2: DTC 44 - DECELERATION SENSOR CIRCUIT CHART (2 OF 2)
G96B21163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
