DTC 41 - IG Power Source Circuit

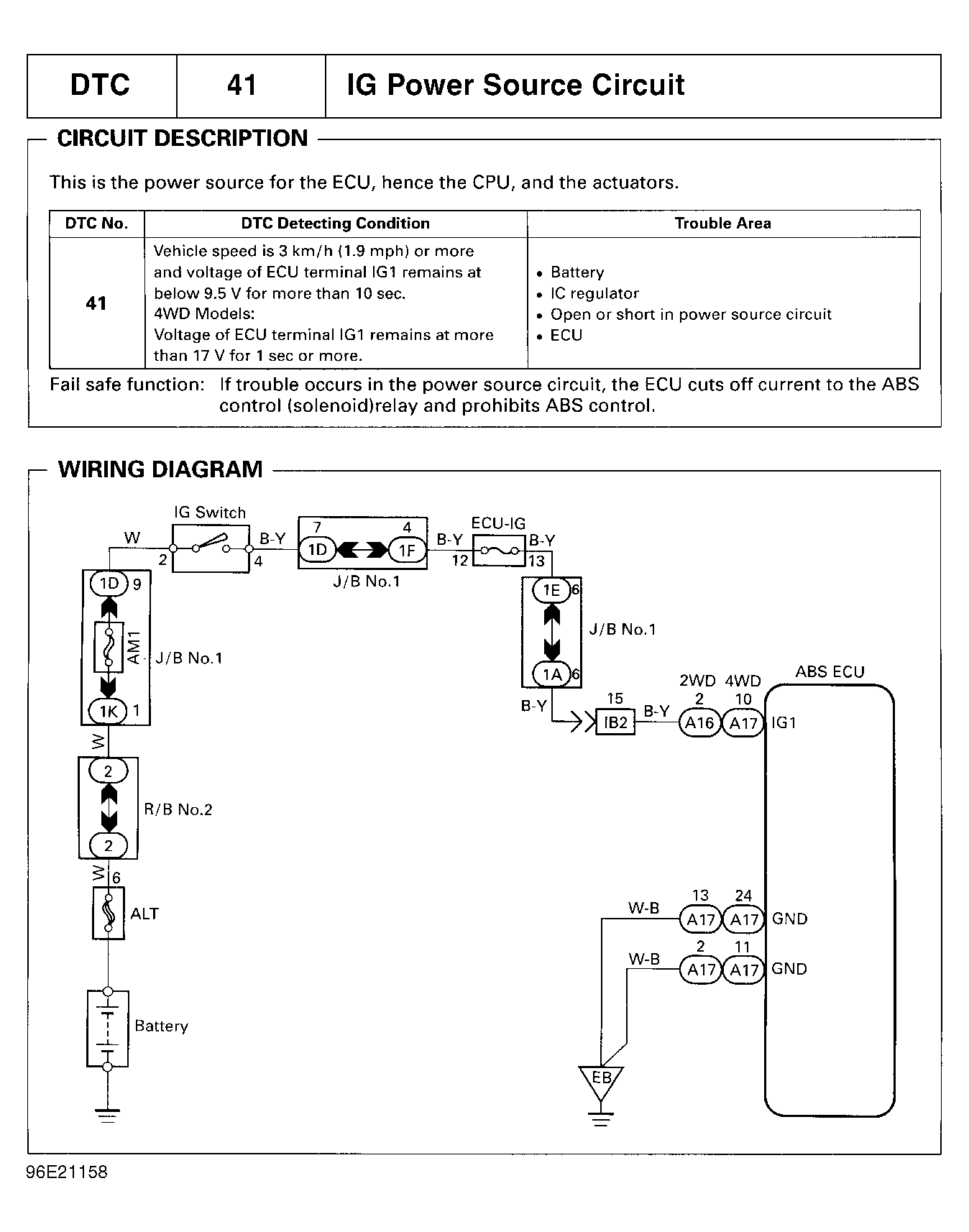

Fig 1: DTC 41 - IG POWER SOURCE CIRCUIT CHART (1 OF 3)
G96E21158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

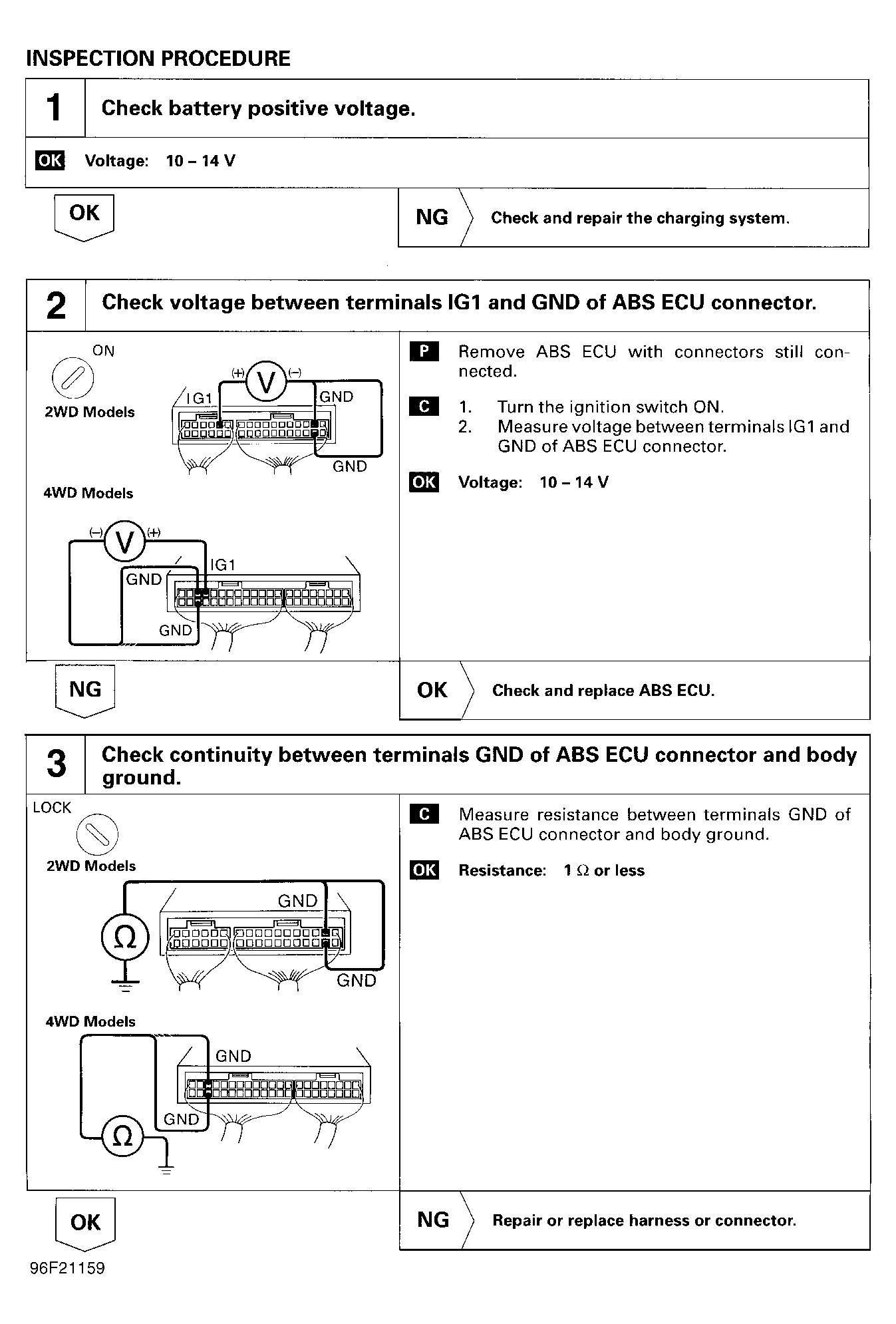

Fig 2: DTC 41 - IG POWER SOURCE CIRCUIT CHART (2 OF 3)
G96F21159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

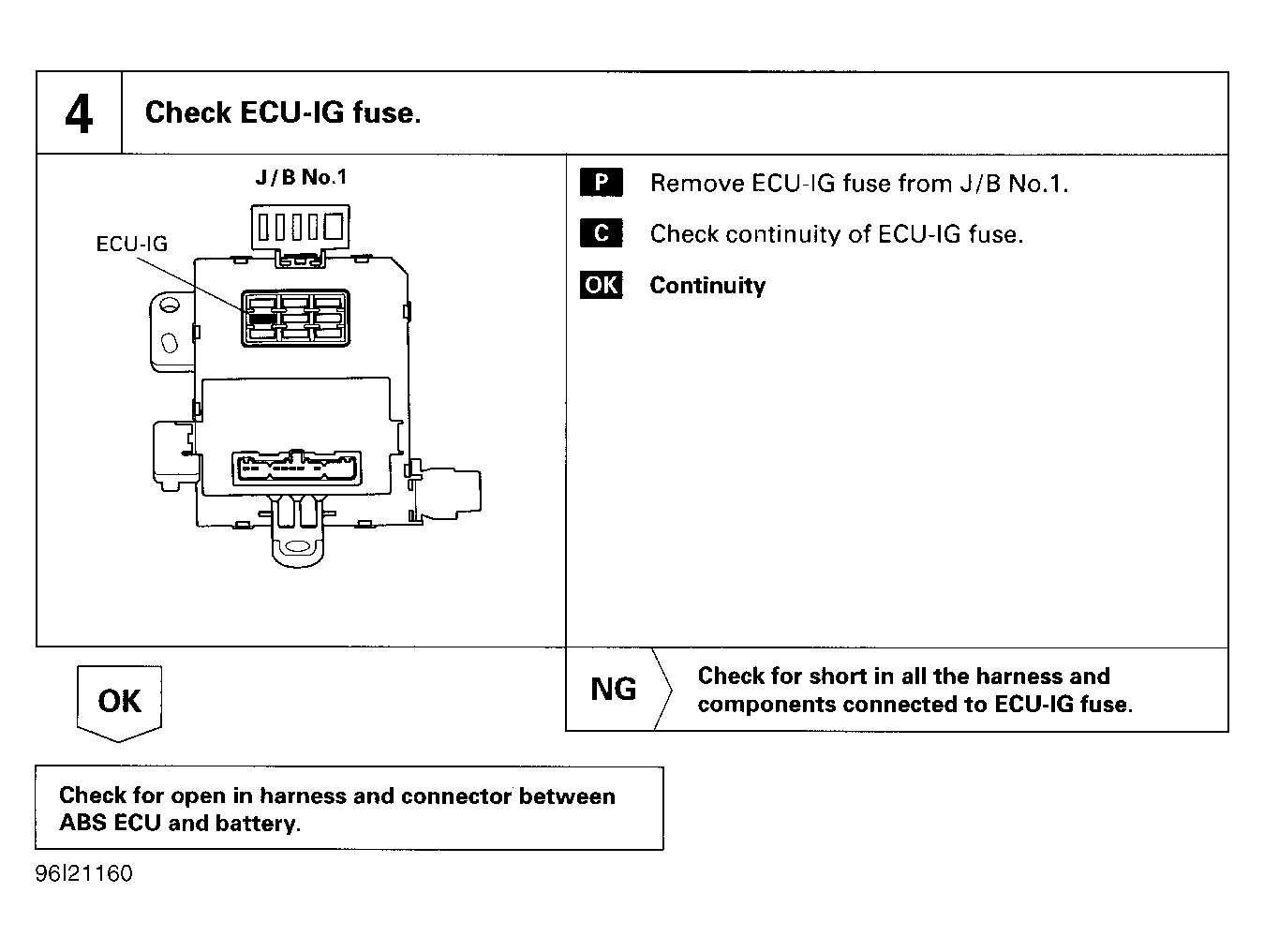

Fig 3: DTC 41 - IG POWER SOURCE CIRCUIT CHART (3 OF 3)
G96I21160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
