DTC 41: IG Power Source Circuit

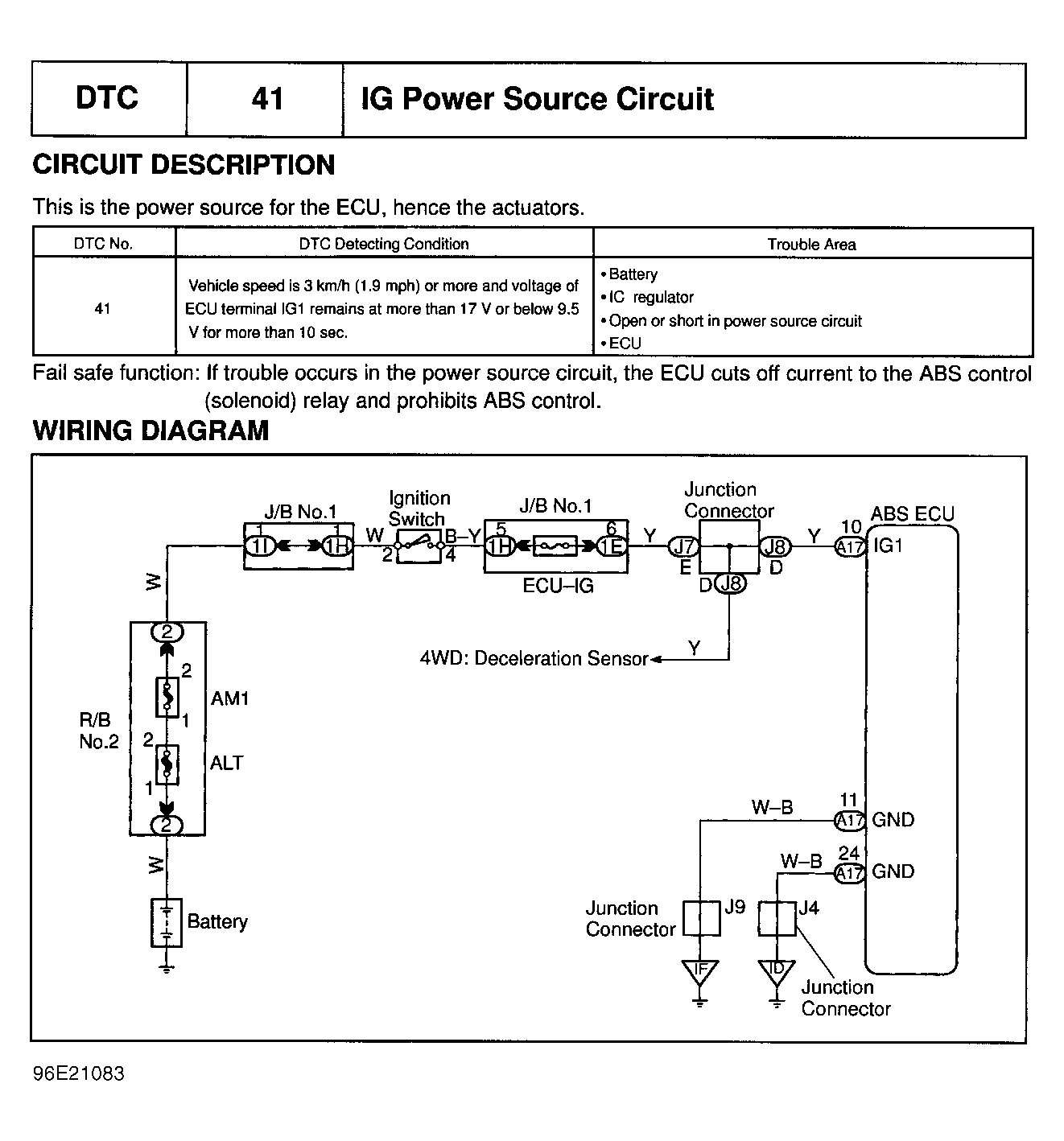

Fig 1: DTC 41 - IG Power Source Circuit Chart (1 Of 3)
G96E21083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

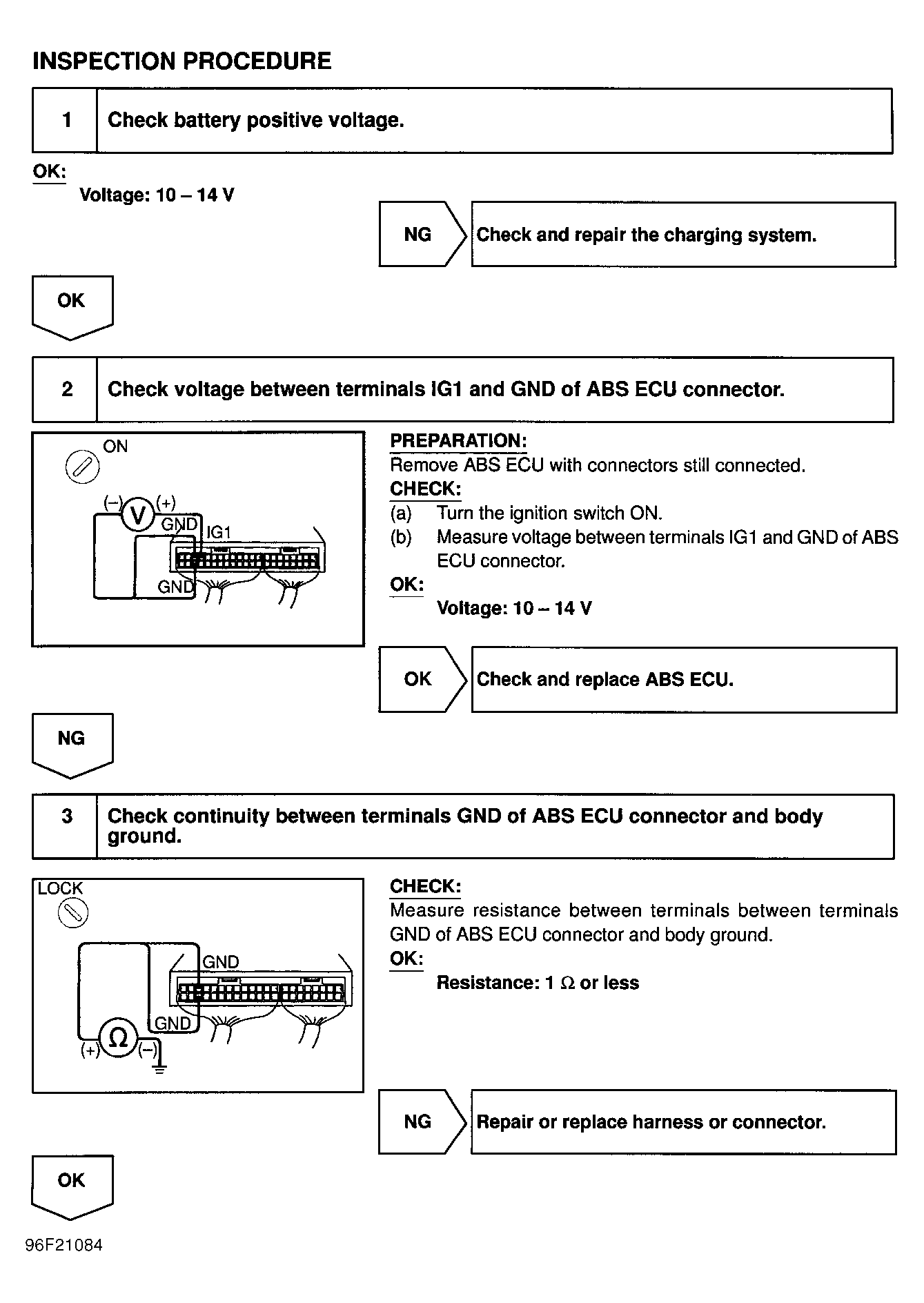

Fig 2: DTC 41 - IG Power Source Circuit Chart (2 Of 3)
G96F21084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

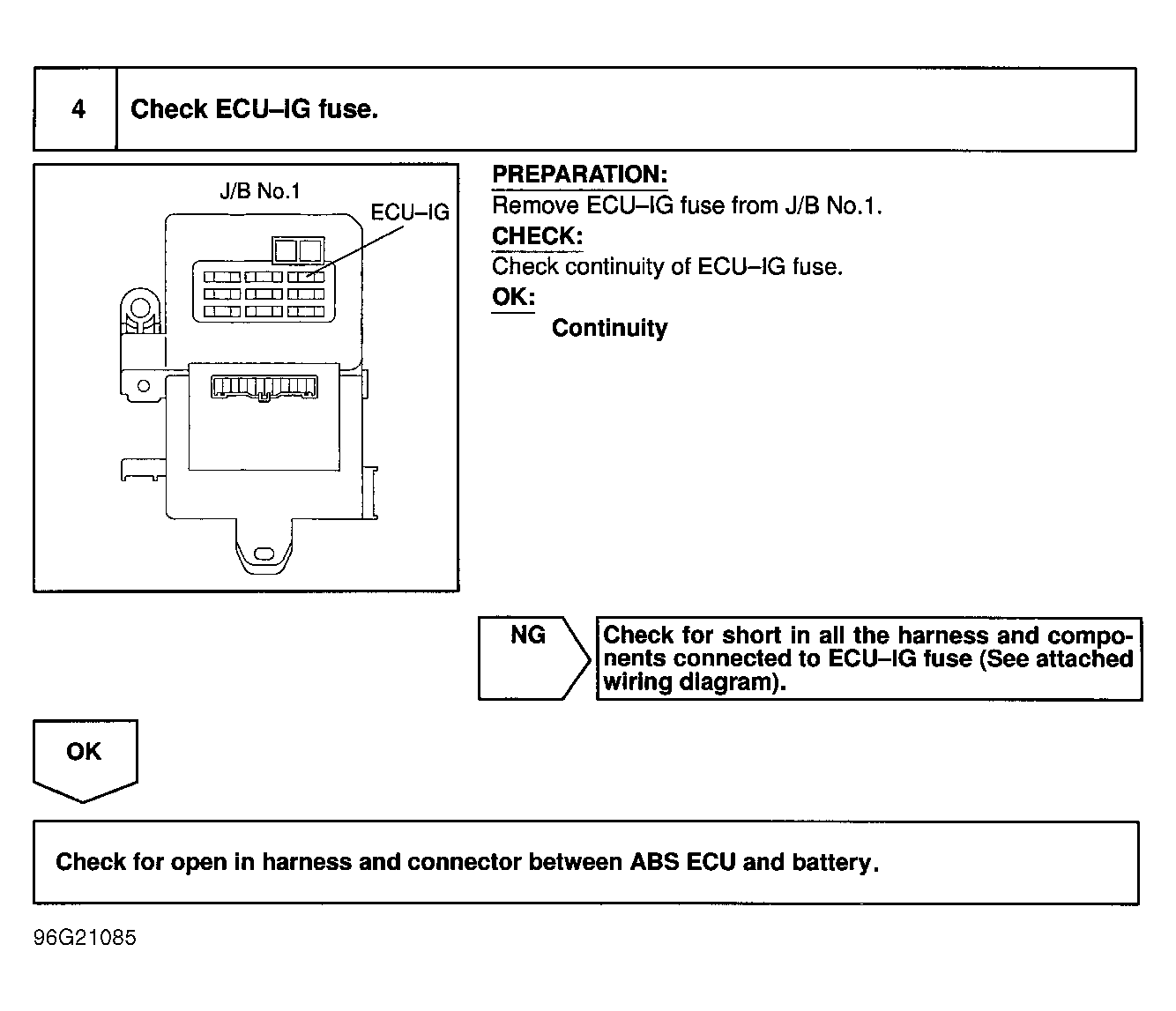

Fig 3: DTC 41 - IG Power Source Circuit Chart (3 Of 3)
G96G21085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
