DTC 11 & DTC 12 Abs Control (Solenoid) Relay Circuit

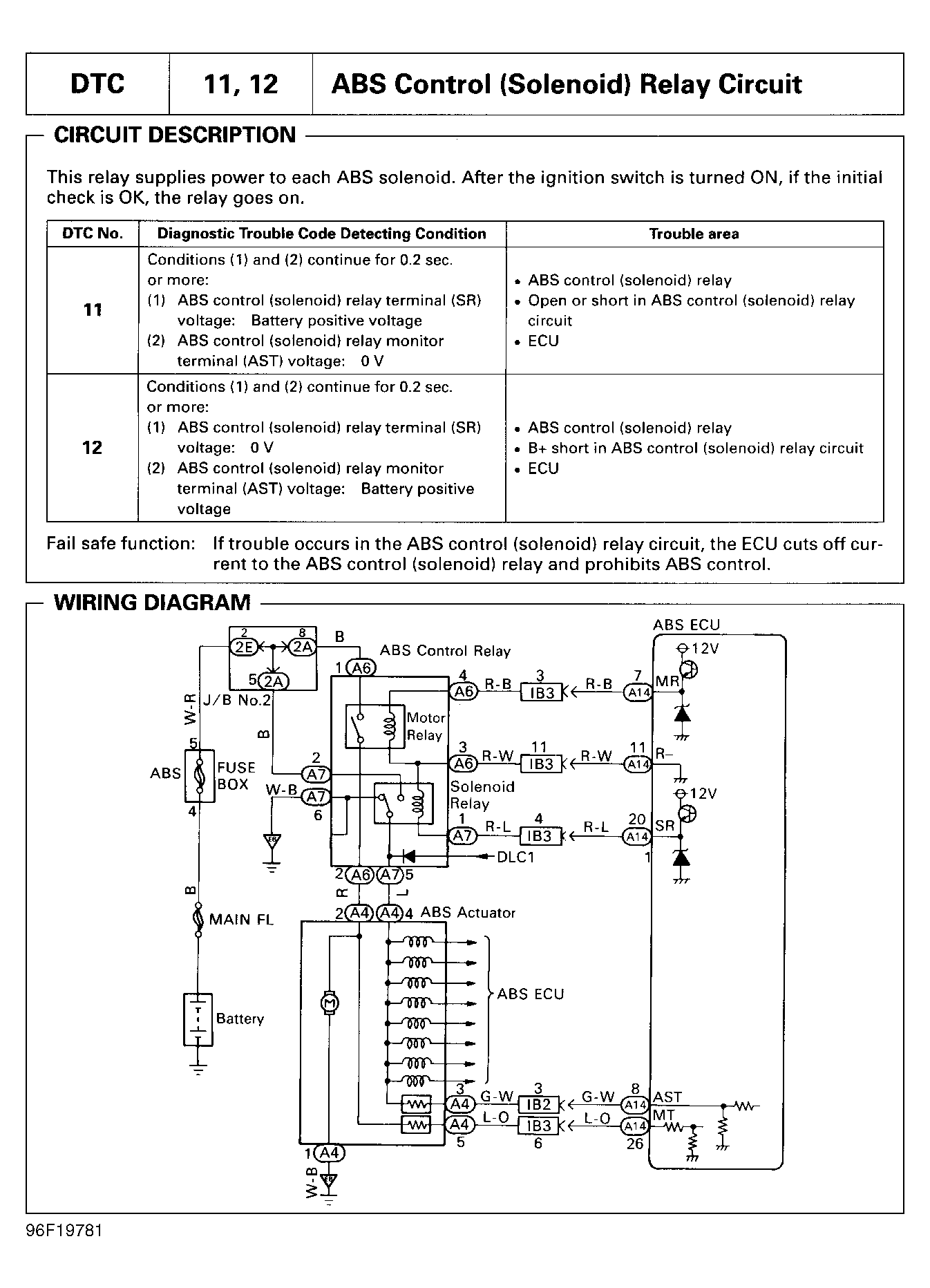

Fig 1: DTC 11 & DTC 12 ABS CONTROL (SOLENOID) RELAY CIRCUIT CHART (1 OF 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

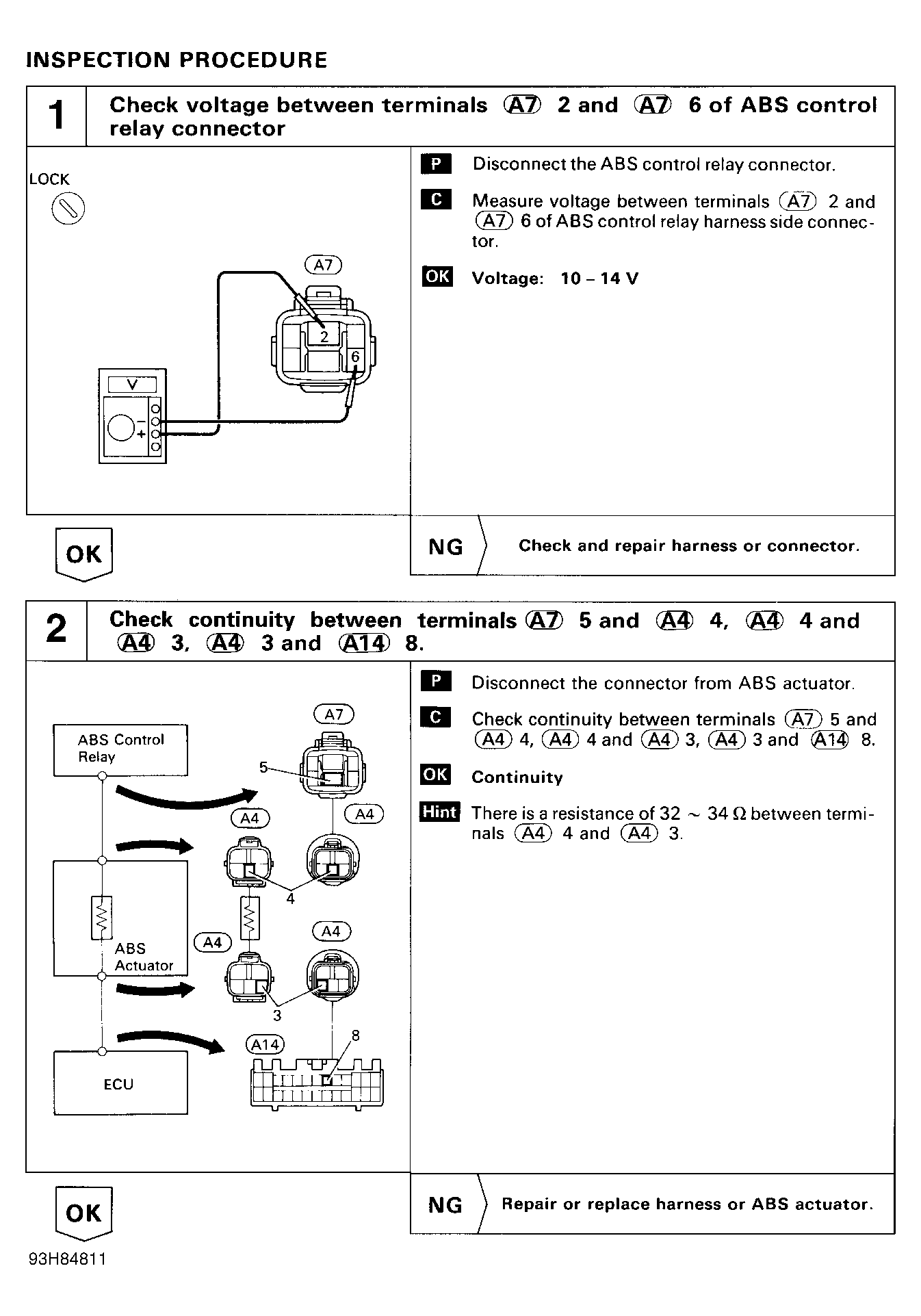

Fig 2: DTC 11 & DTC 12 ABS CONTROL (SOLENOID) RELAY CIRCUIT CHART (2 OF 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

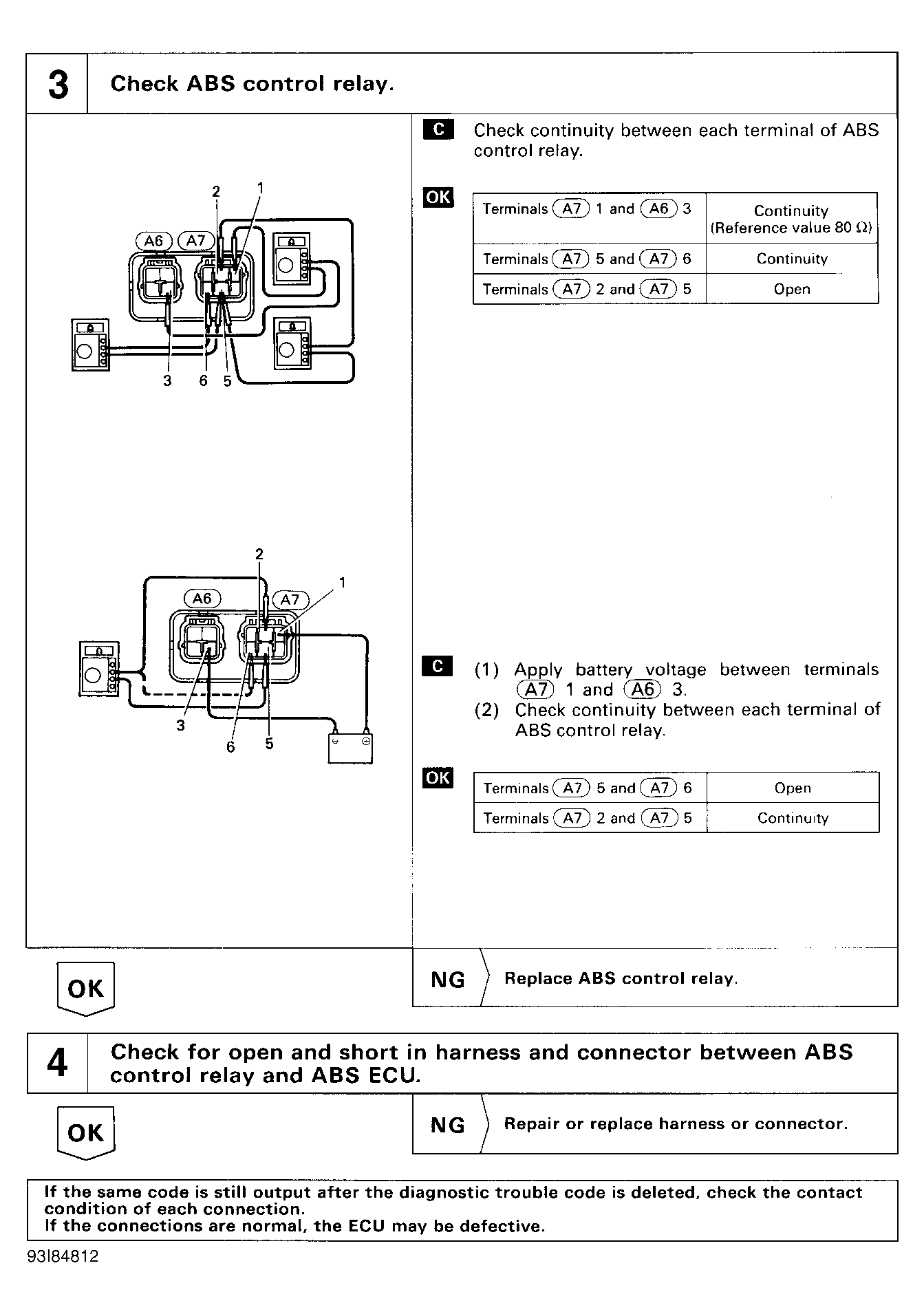

Fig 3: DTC 11 & DTC 12 ABS CONTROL (SOLENOID) RELAY CIRCUIT CHART (3 OF 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
