DTC 25, 26 - Lean Or Rich Air/Fuel Mixture: Procedures:

For oxygen sensor or circuit testing, see DTC 21. For injector or circuit testing, see SYSTEM/COMPONENT TESTS article.

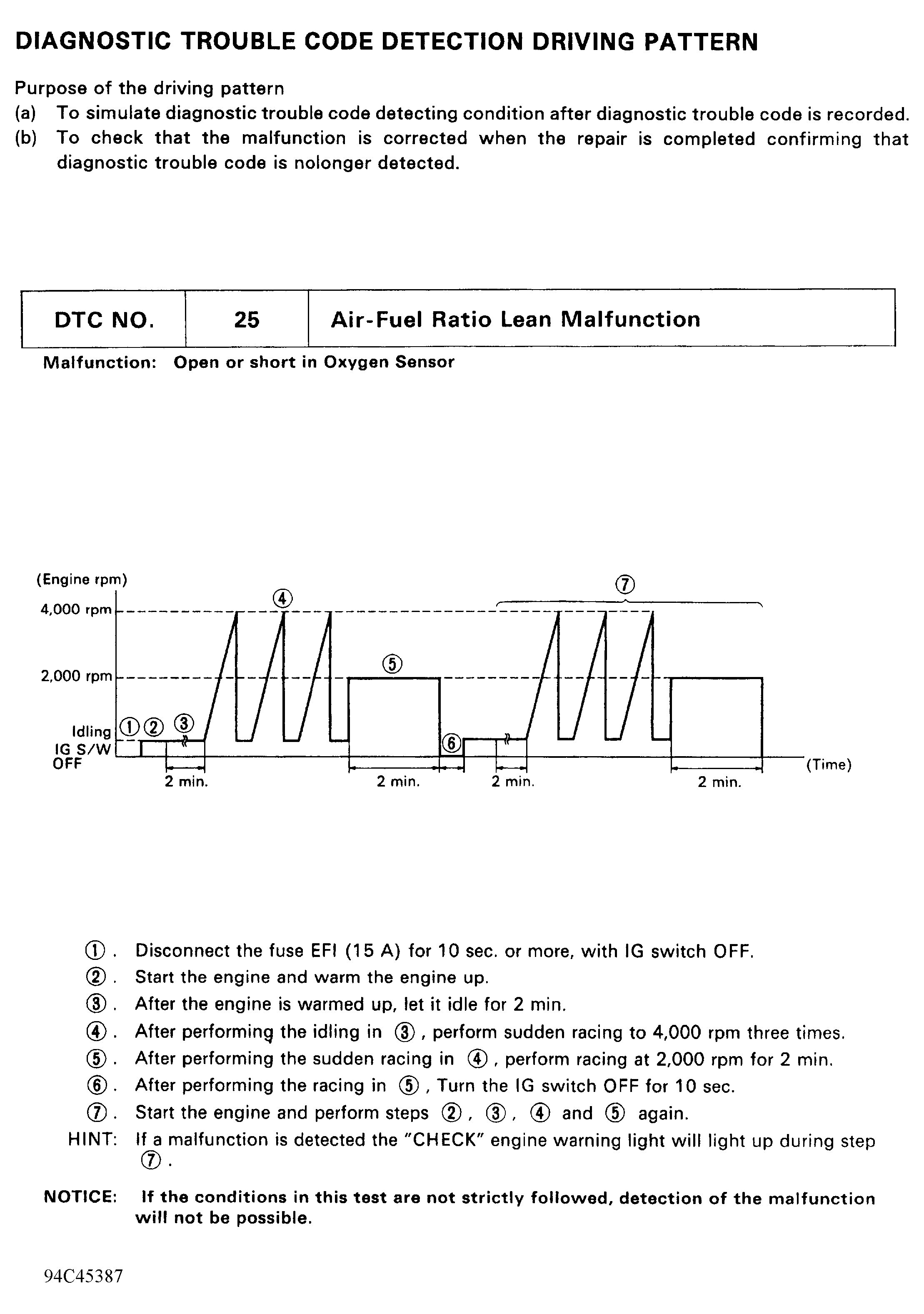

Fig 1: DTC 25, 26 - Driving Detection Pattern (1 Of 2)
G94C45387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

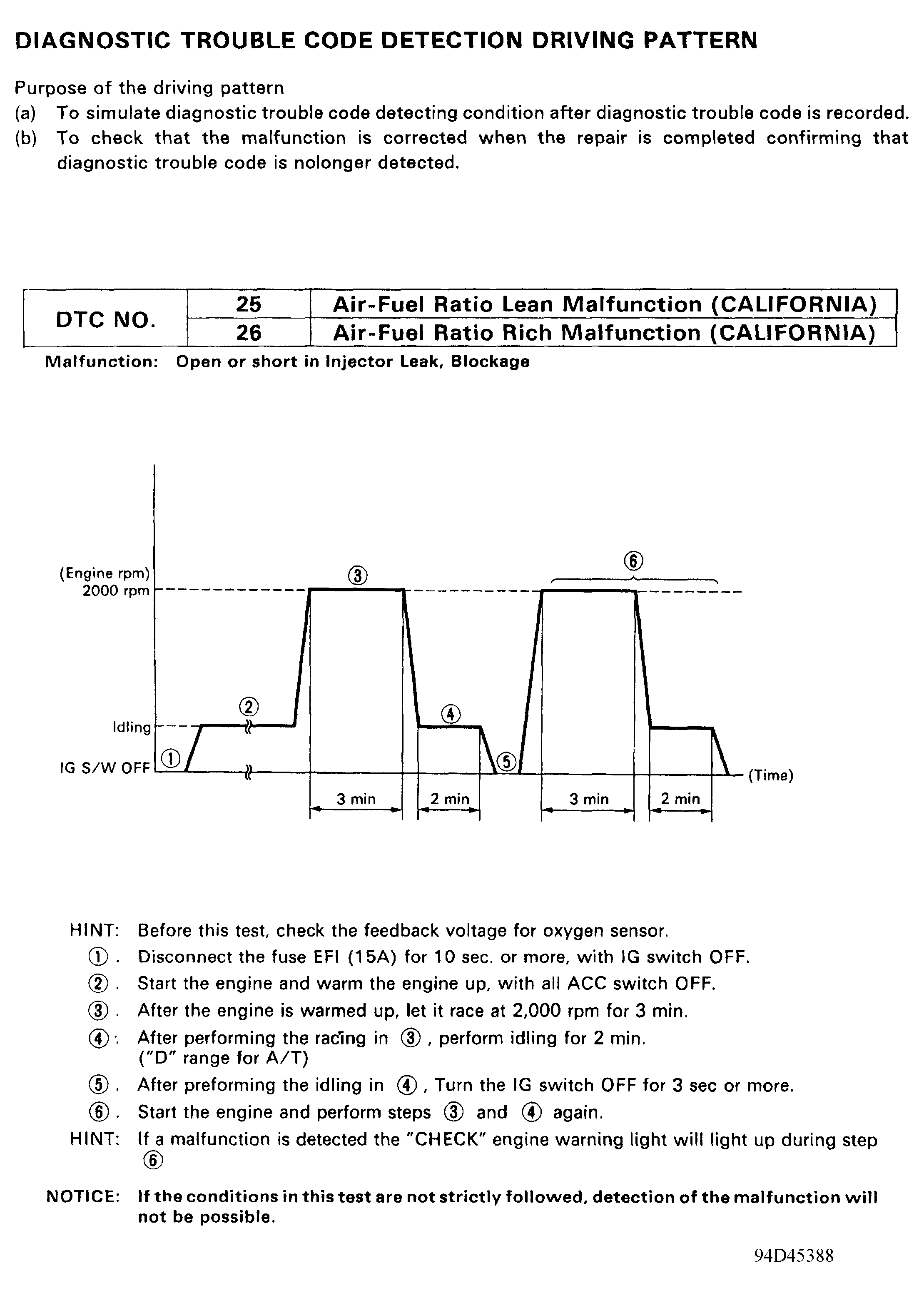

Fig 2: DTC 25, 26 - Driving Detection Pattern (2 Of 2)
G94D45388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
