DTC P0336 - Crankshaft Position Sensor Circuit Range/Performance

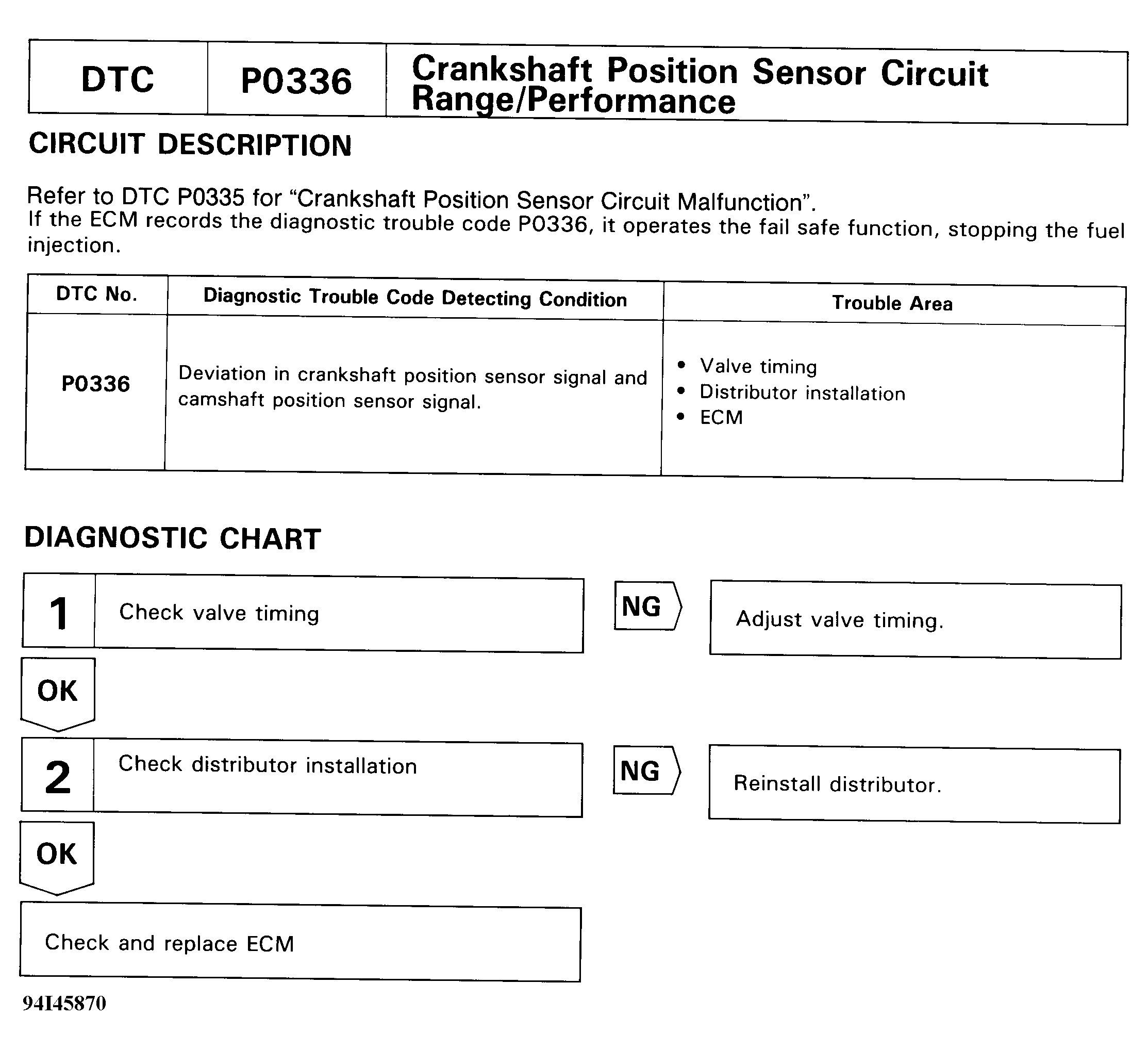

Fig 1: DTC P0336 - Diagnostic Flowchart

G94I45870

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
