DTC P0101 - Mass Airflow Meter Circuit Range/Performance Problem

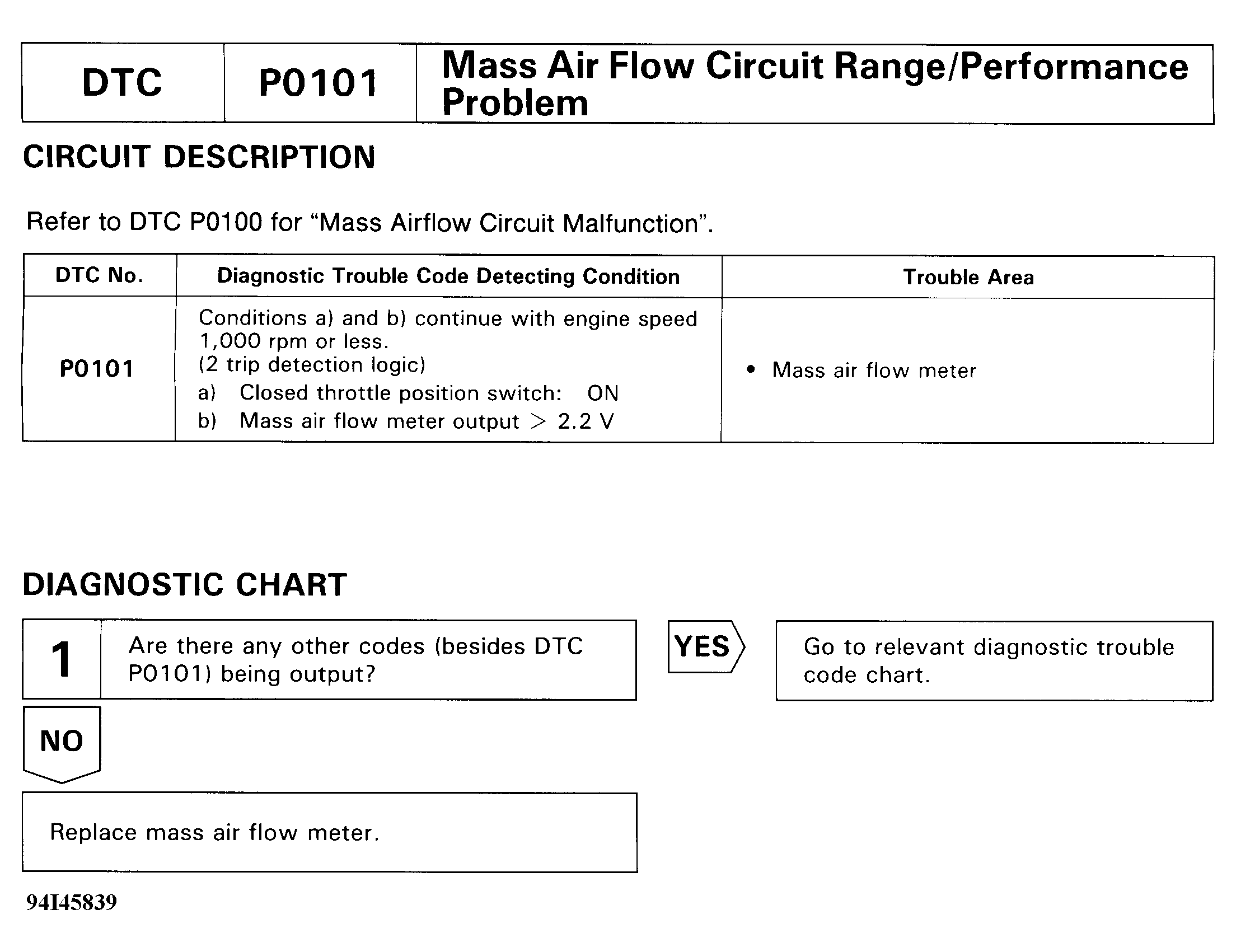

Fig 1: DTC P0101 - Diagnostic Flowchart

G94I45839

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
