DTC 78 - Fuel Pump Control Signal

Fig 1: DTC 78 - Diagnostic Flowchart (1 Of 2)
G93B80227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

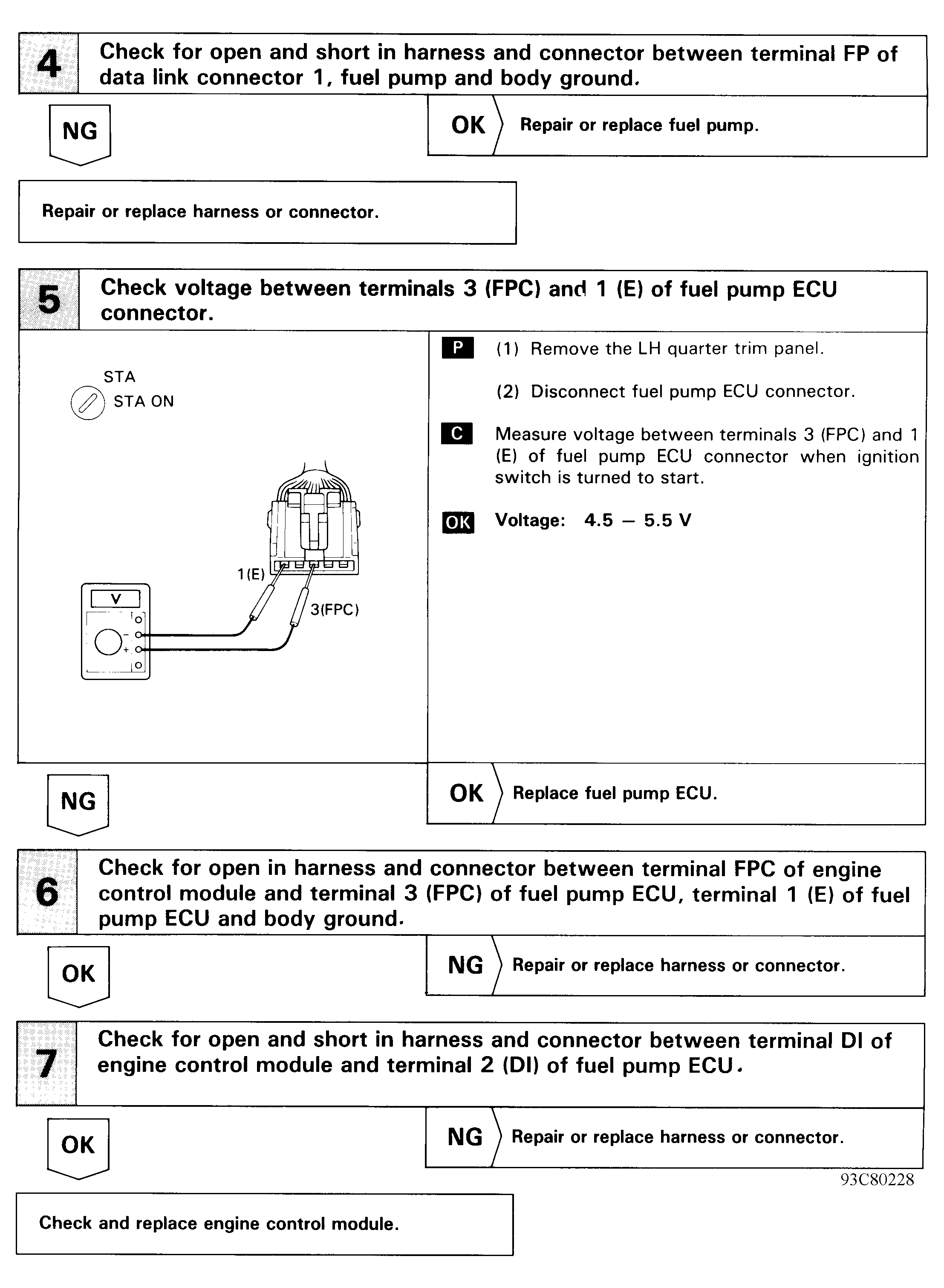

Fig 2: DTC 78 - Diagnostic Flowchart (2 Of 2)
G93C80228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
