DTC 51 - Switch Condition Signal

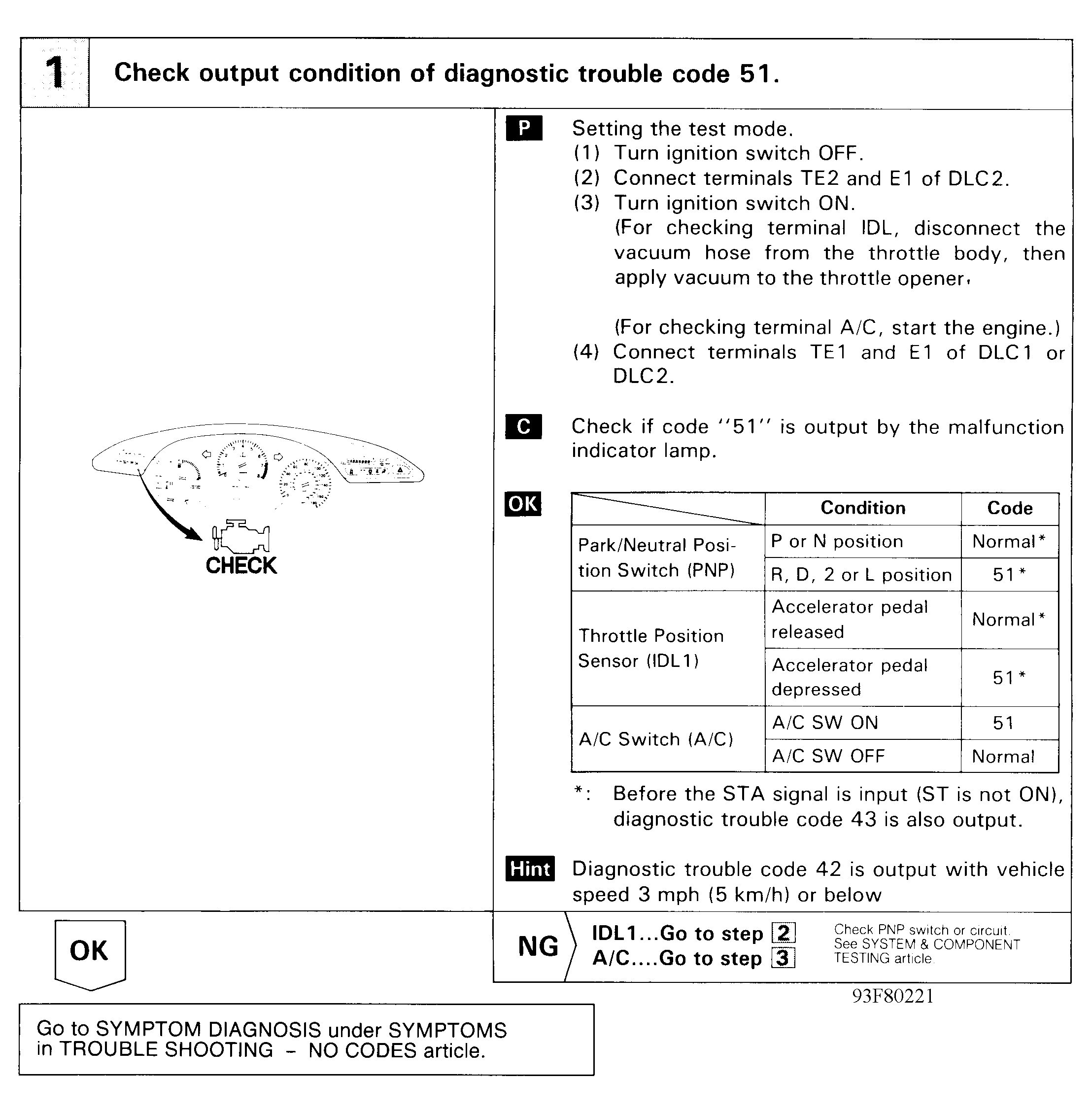

Fig 1: DTC 51 - Diagnostic Flowchart (1 Of 2)
G93F80221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

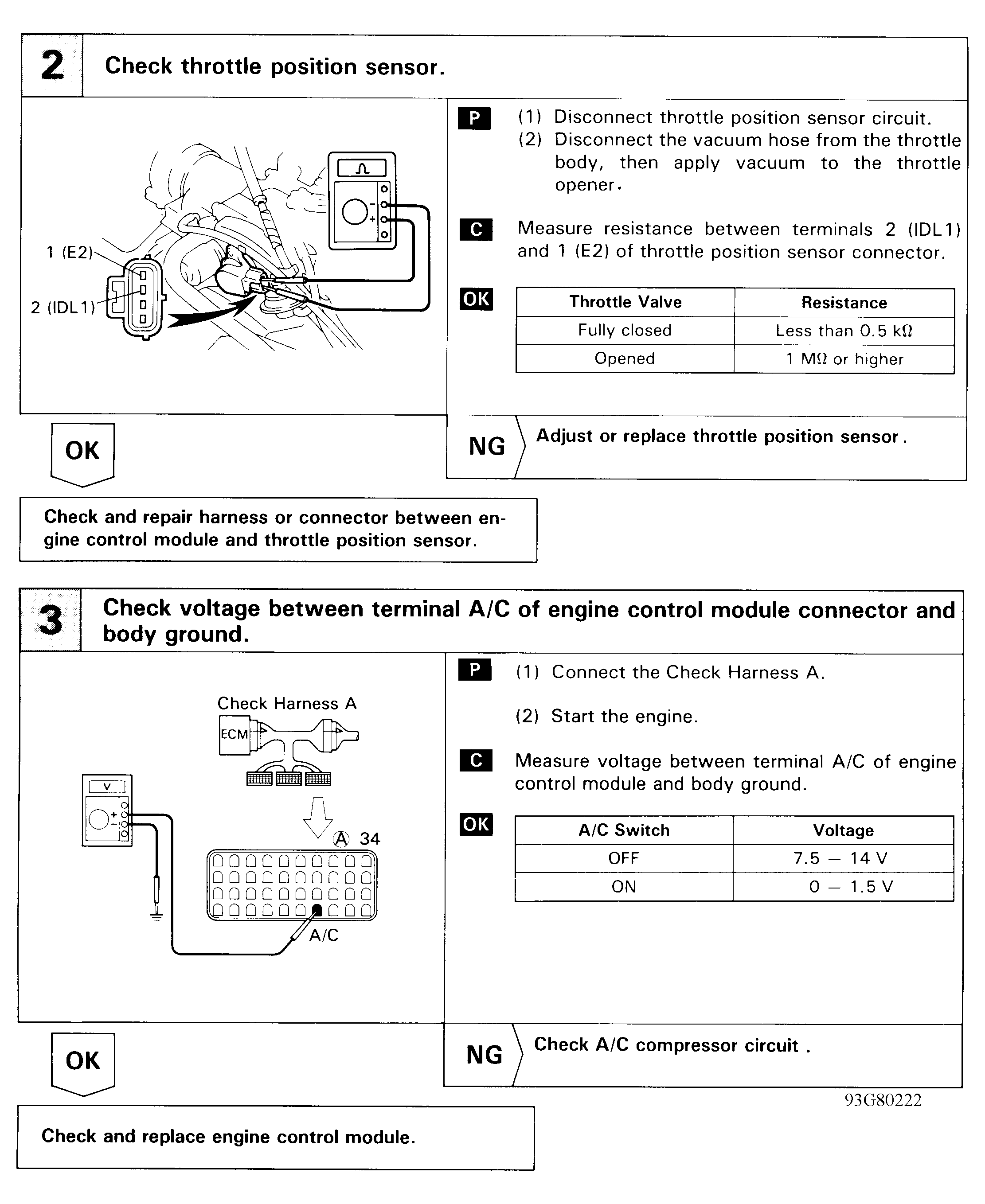

Fig 2: DTC 51 - Diagnostic Flowchart (2 Of 2)
G93G80222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
