DTC 14 - Ignition Signal

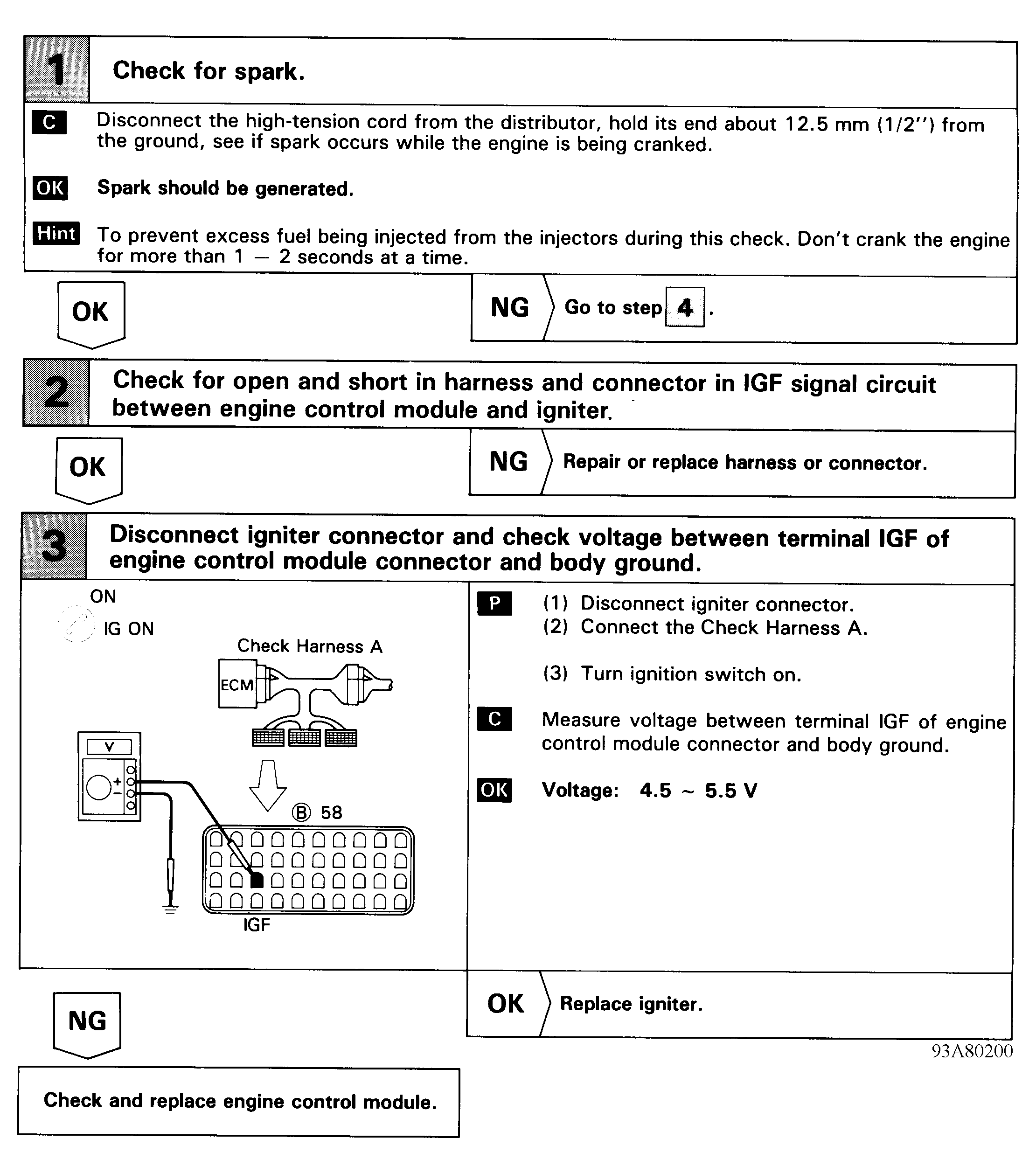

Fig 1: DTC 14 - Diagnostic Flowchart (1 Of 4)
G93A80200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

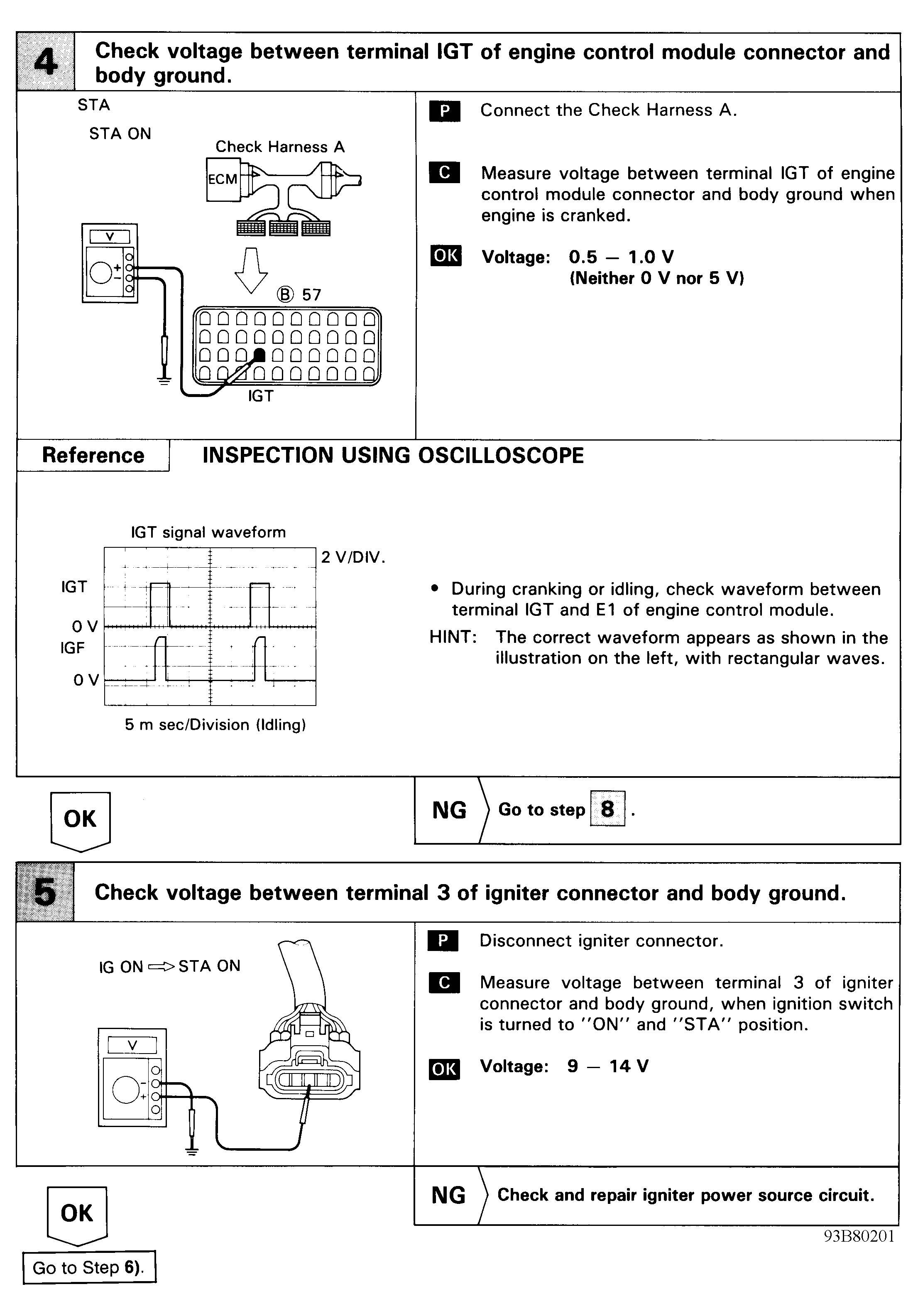

Fig 2: DTC 14 - Diagnostic Flowchart (2 Of 4)
G93B80201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

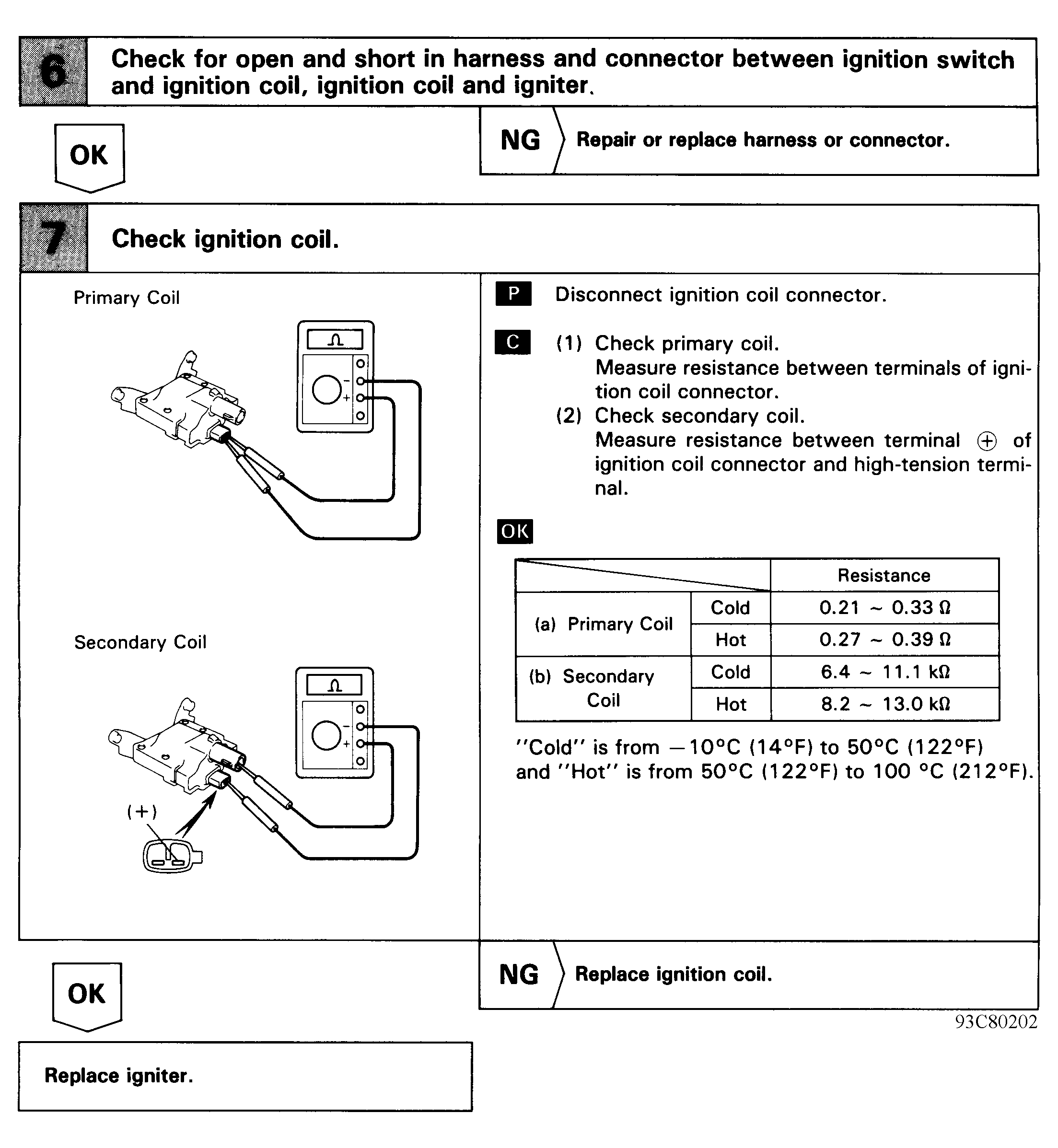

Fig 3: DTC 14 - Diagnostic Flowchart (3 Of 4)
G93C80202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

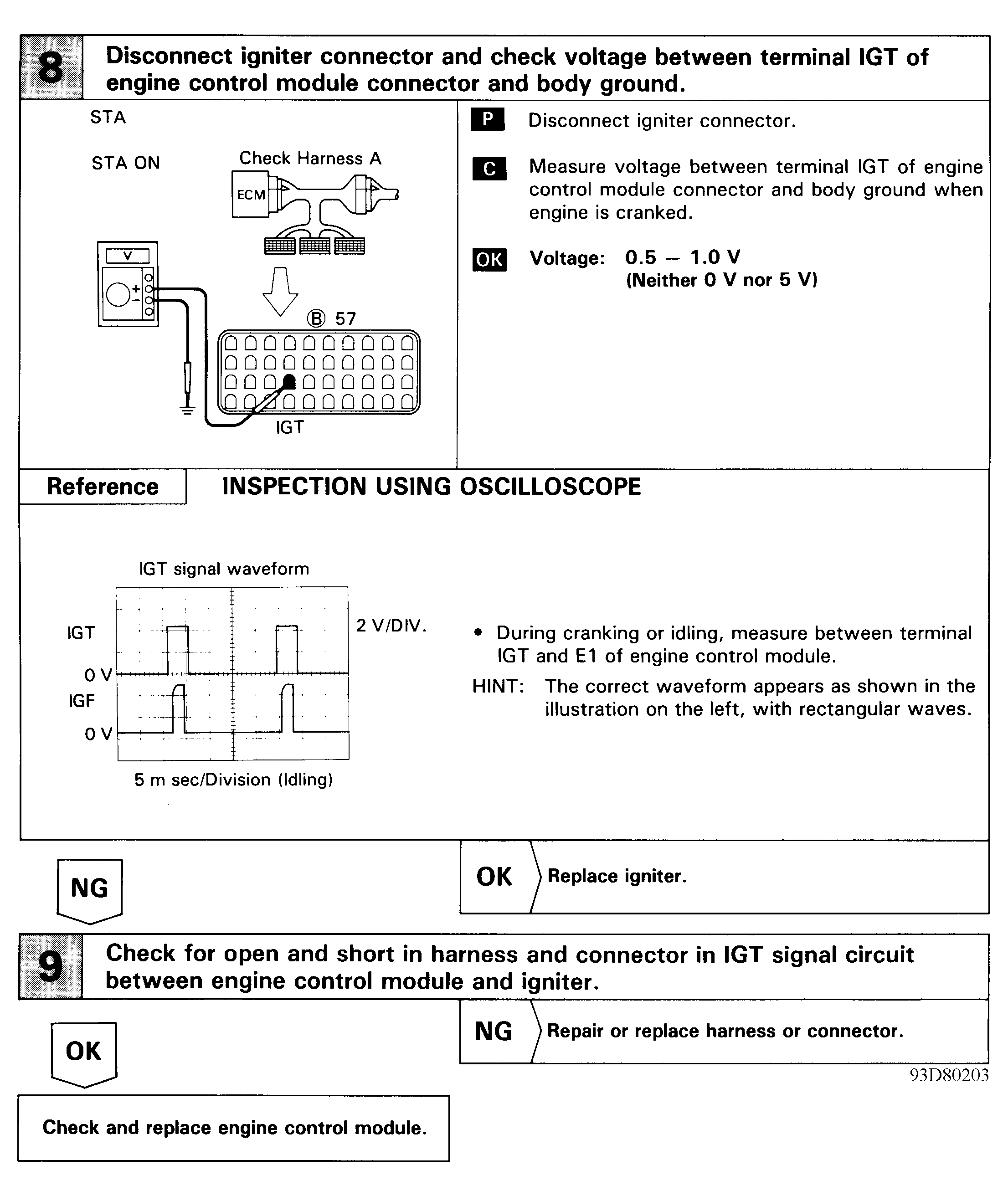

Fig 4: DTC 14 - Diagnostic Flowchart (4 Of 4)
G93D80203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
