DTC 12 - Rpm Signal

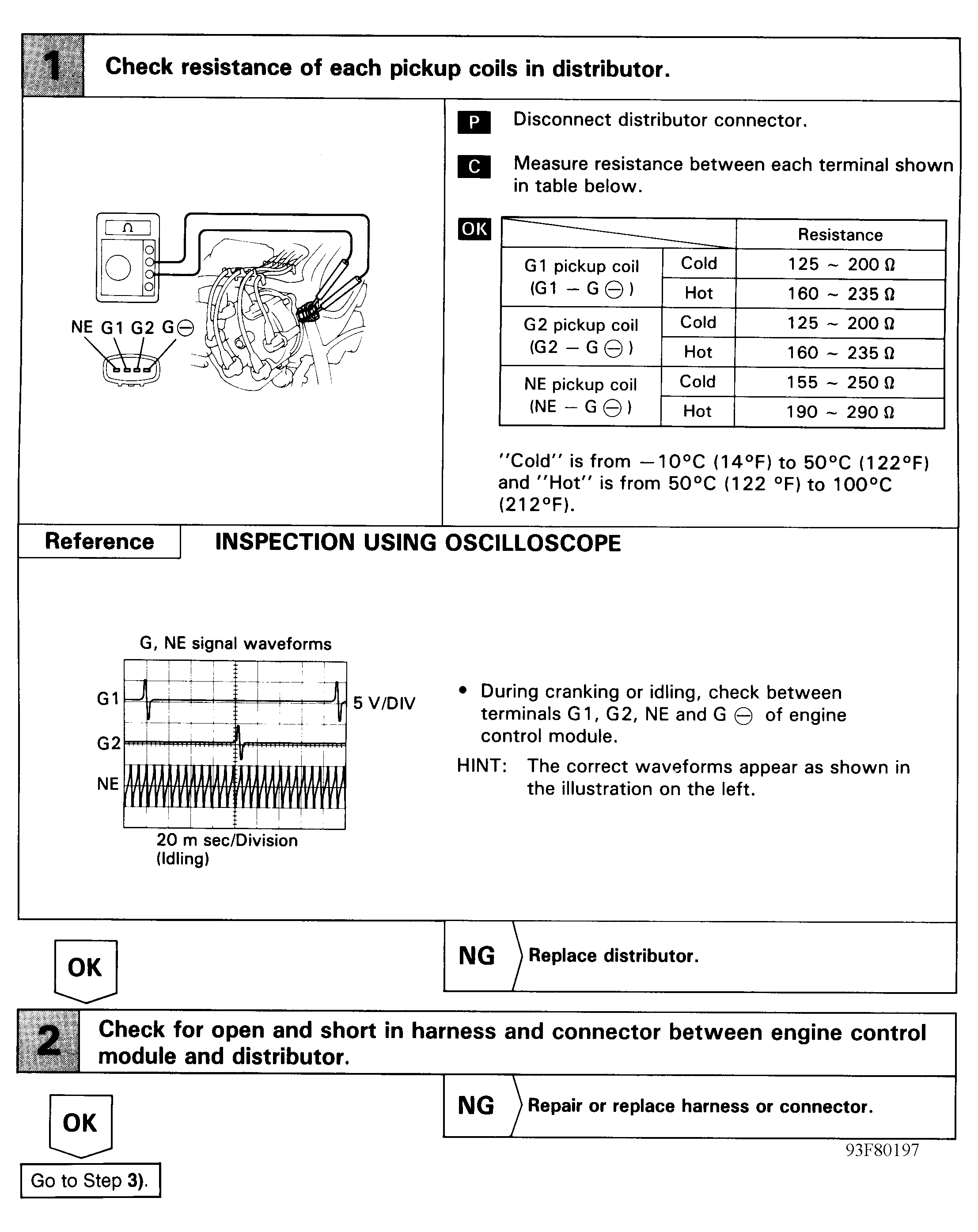

Fig 1: DTC 12 - Diagnostic Flowchart (1 Of 2)
G93F80197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

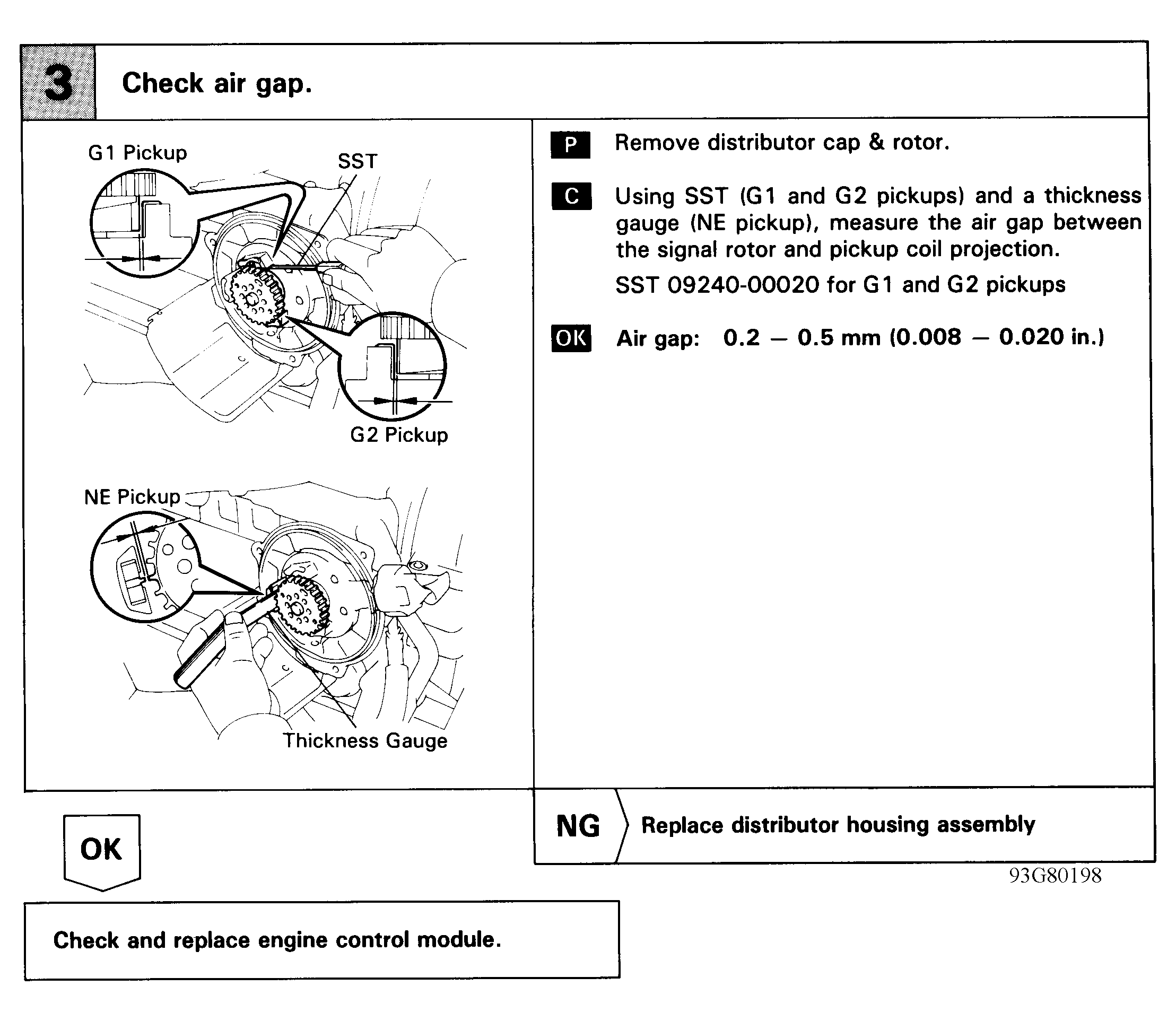

Fig 2: DTC 12 - Diagnostic Flowchart (2 Of 2)
G93G80198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
