DTC 12 - Rpm Signal

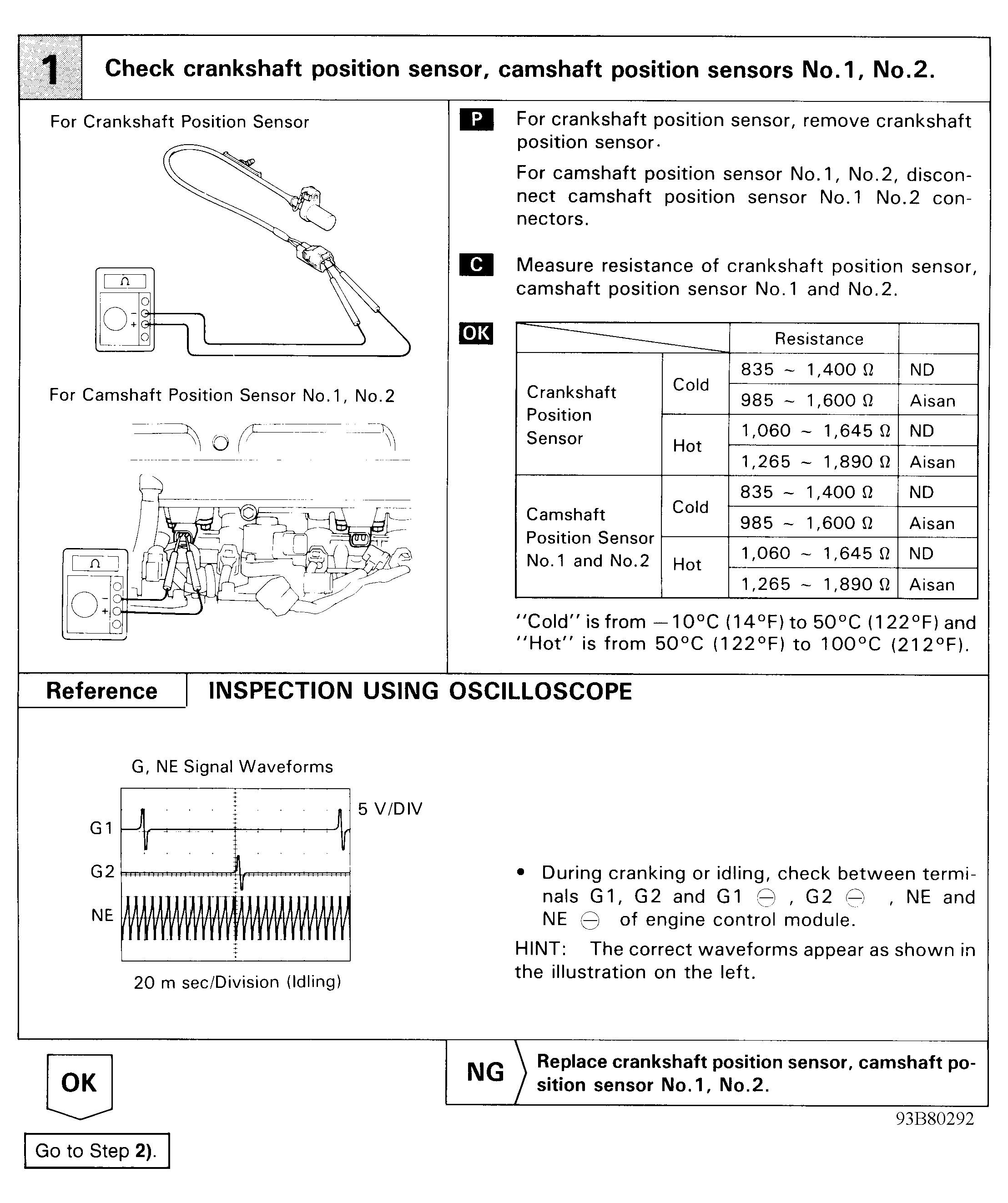

Fig 1: DTC 12 - Diagnostic Flowchart (1 Of 2)
G93B80292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

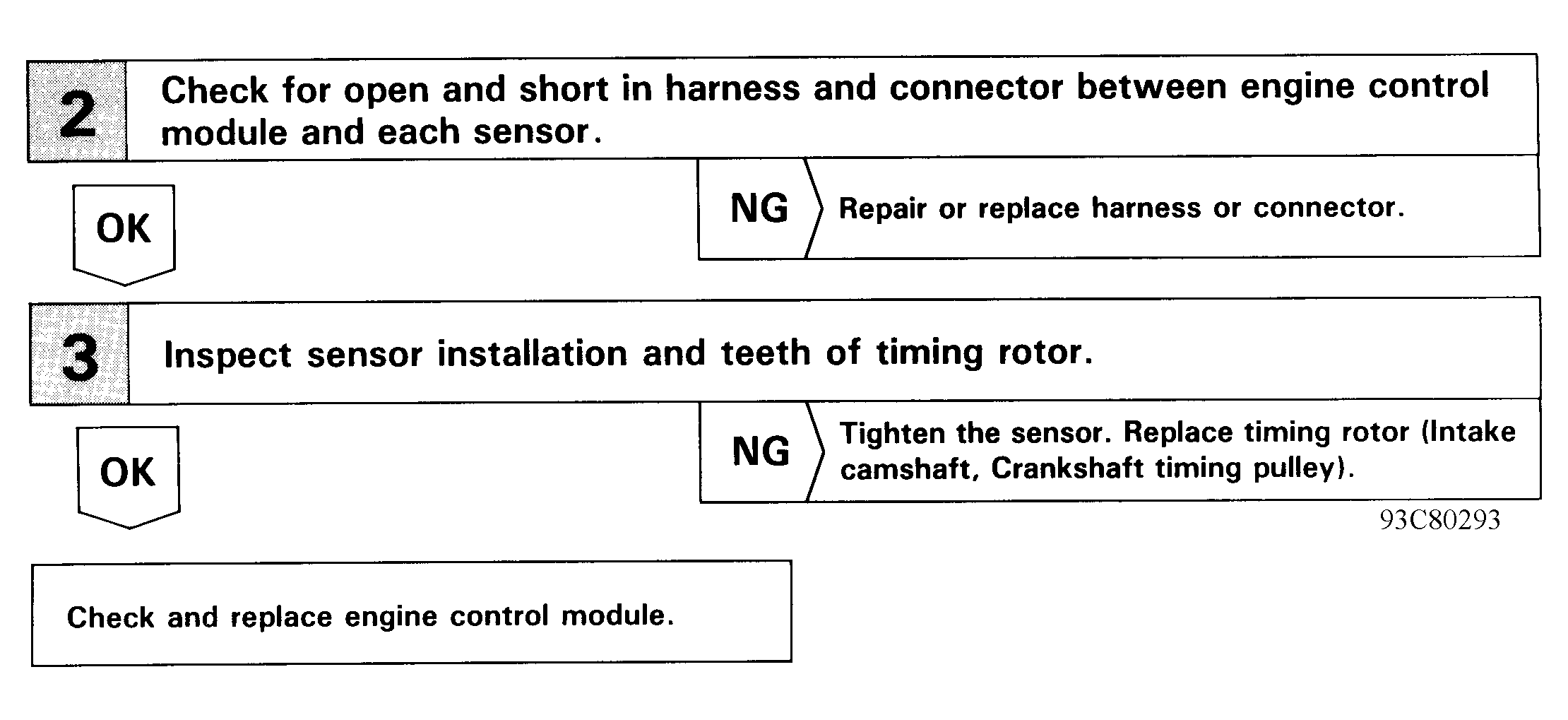

Fig 2: DTC 12 - Diagnostic Flowchart (2 Of 2)
G93C80293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
