DTC P1510 - Boost Pressure Control Circuit Malfunction

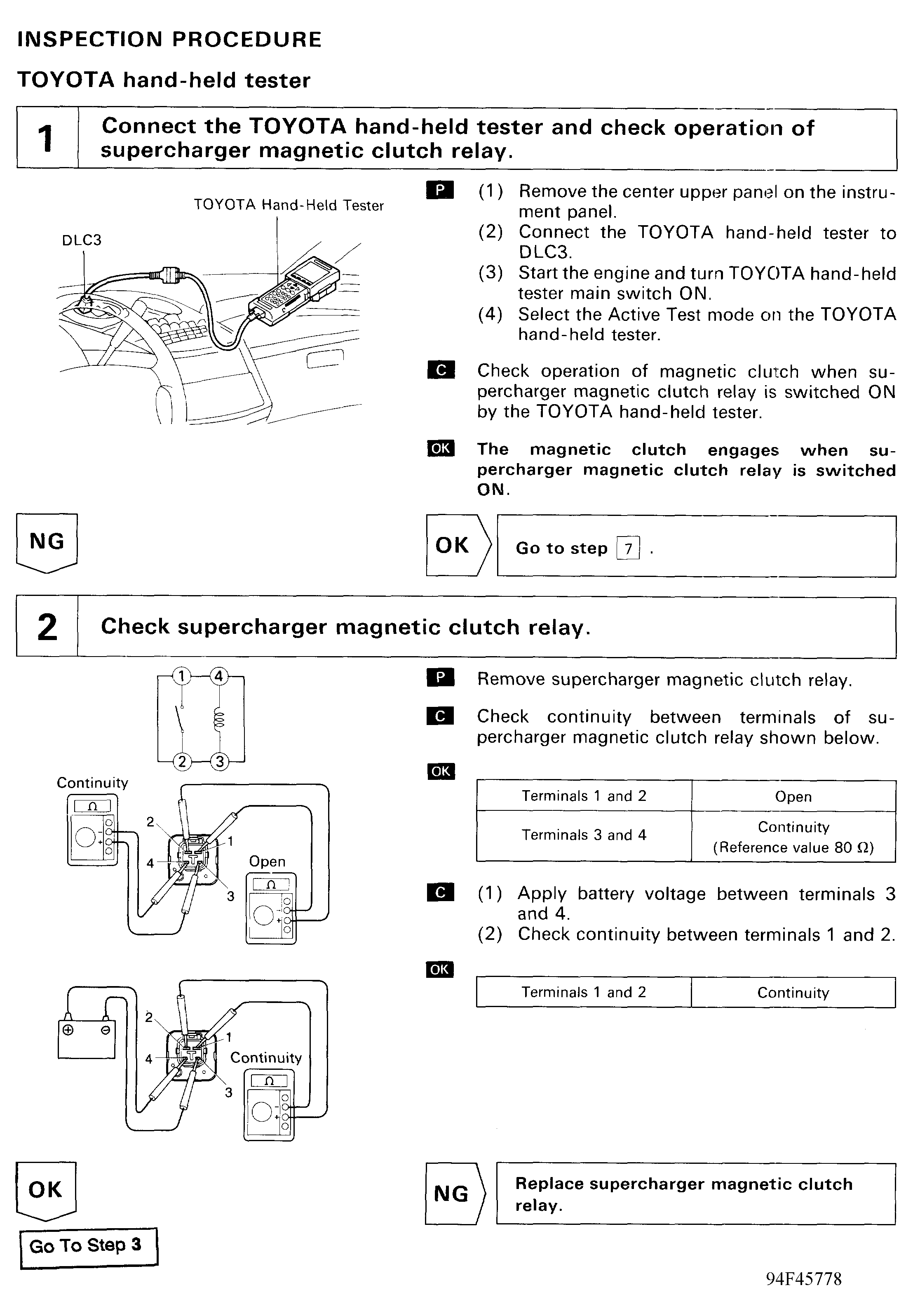

Fig 1: DTC P1510 - Diagnostic Flowchart (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

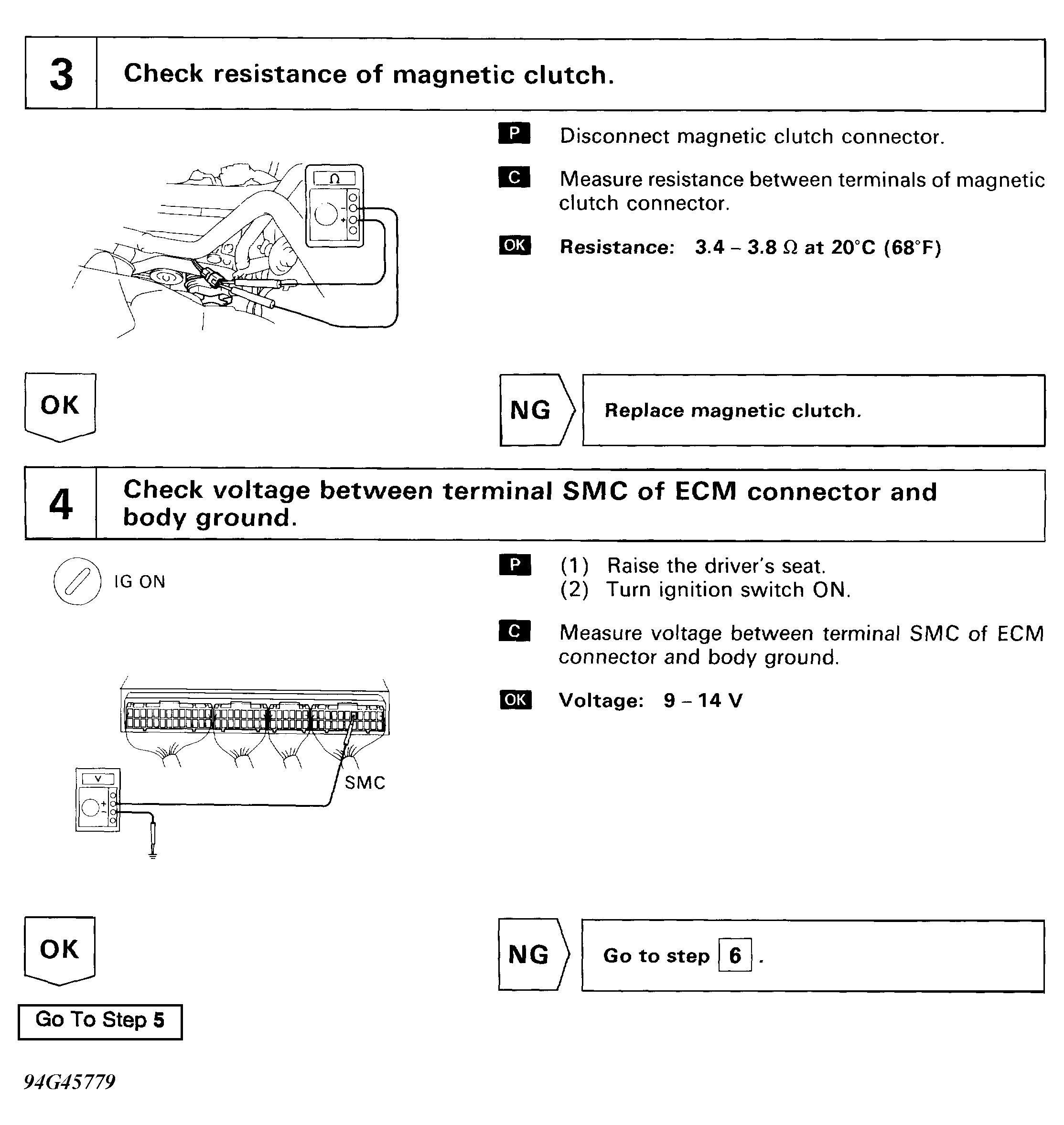

Fig 2: DTC P1510 - Diagnostic Flowchart (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

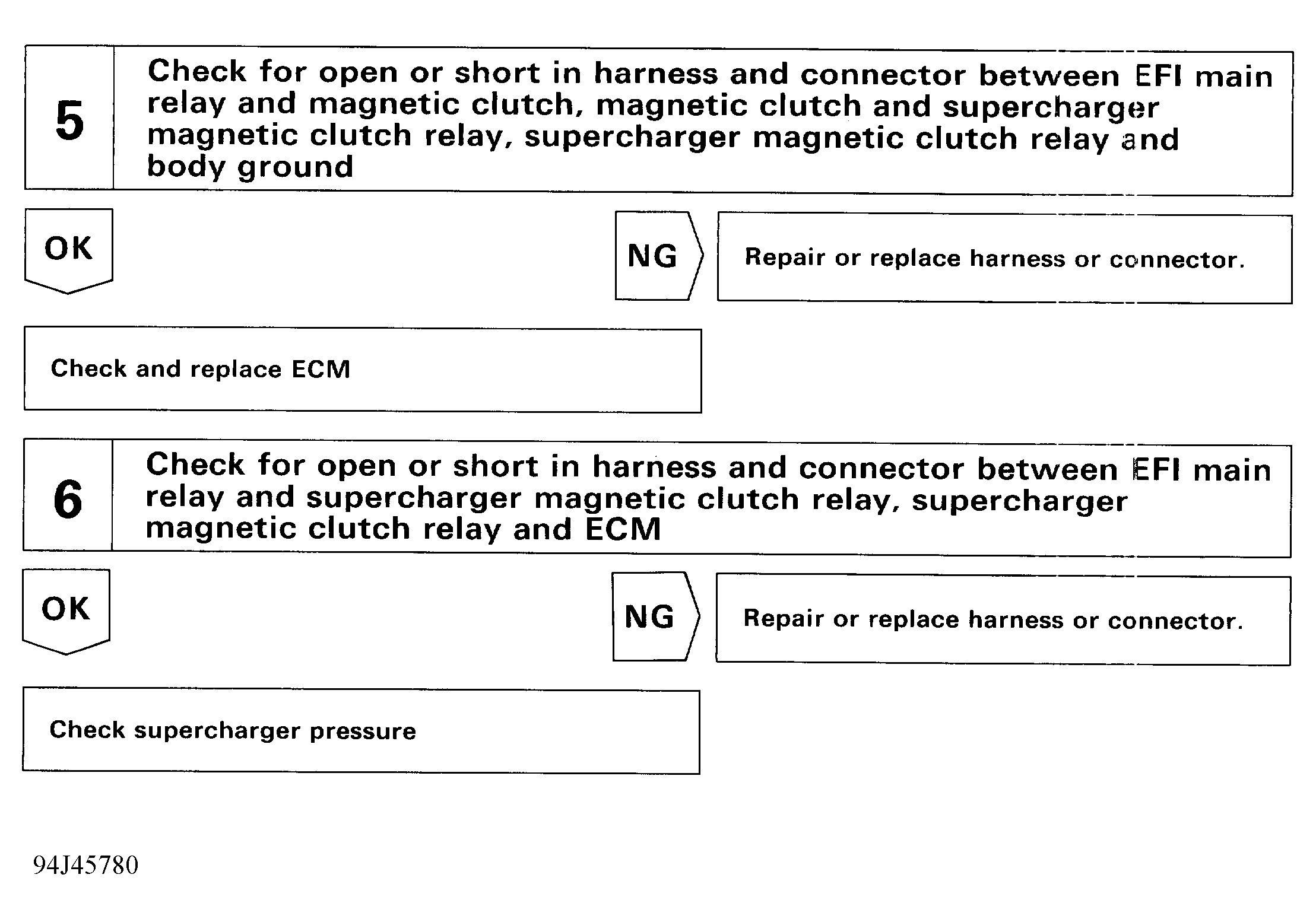

Fig 3: DTC P1510 - Diagnostic Flowchart (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

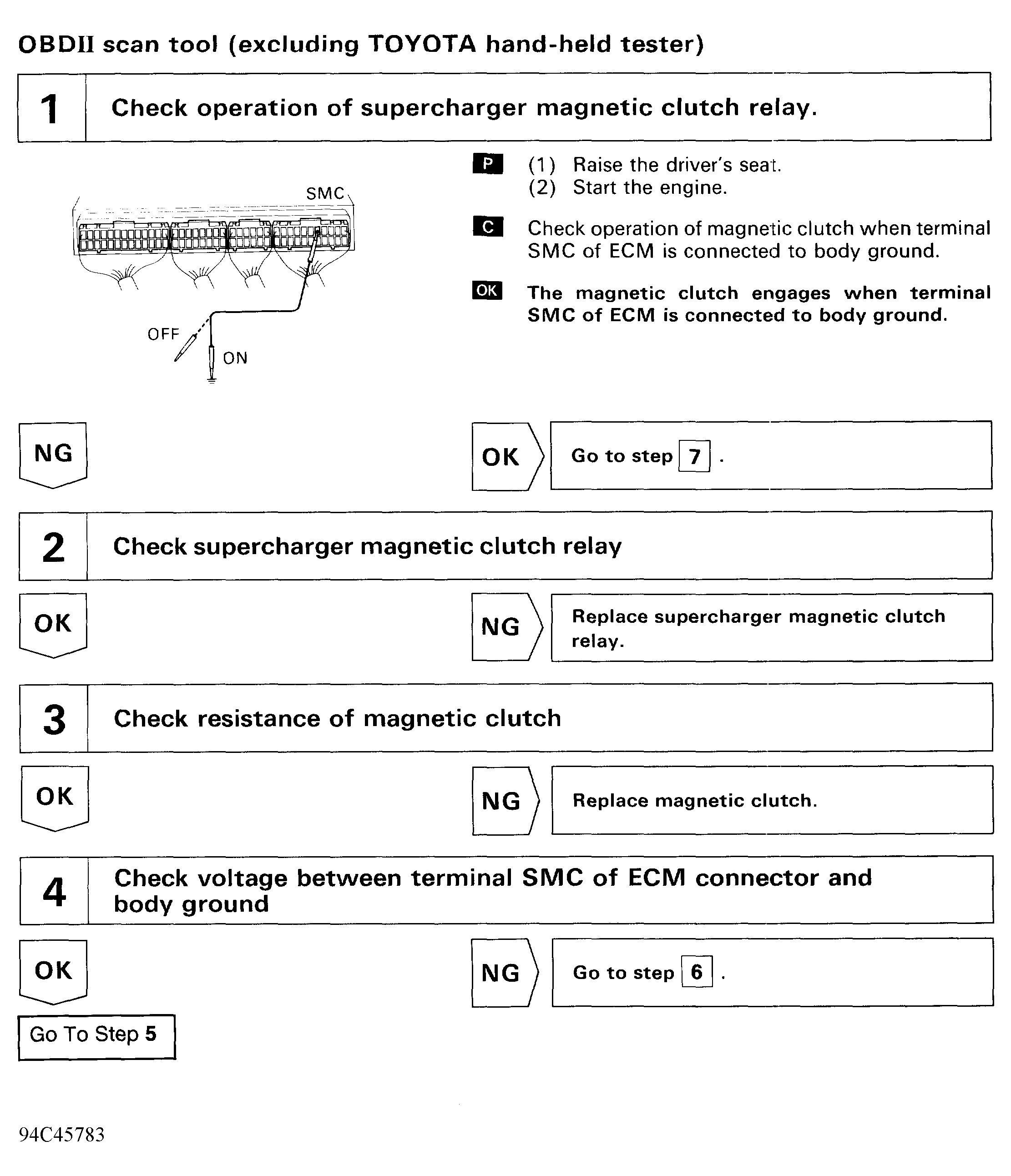

Fig 4: DTC P1510 - Diagnostic Flowchart (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

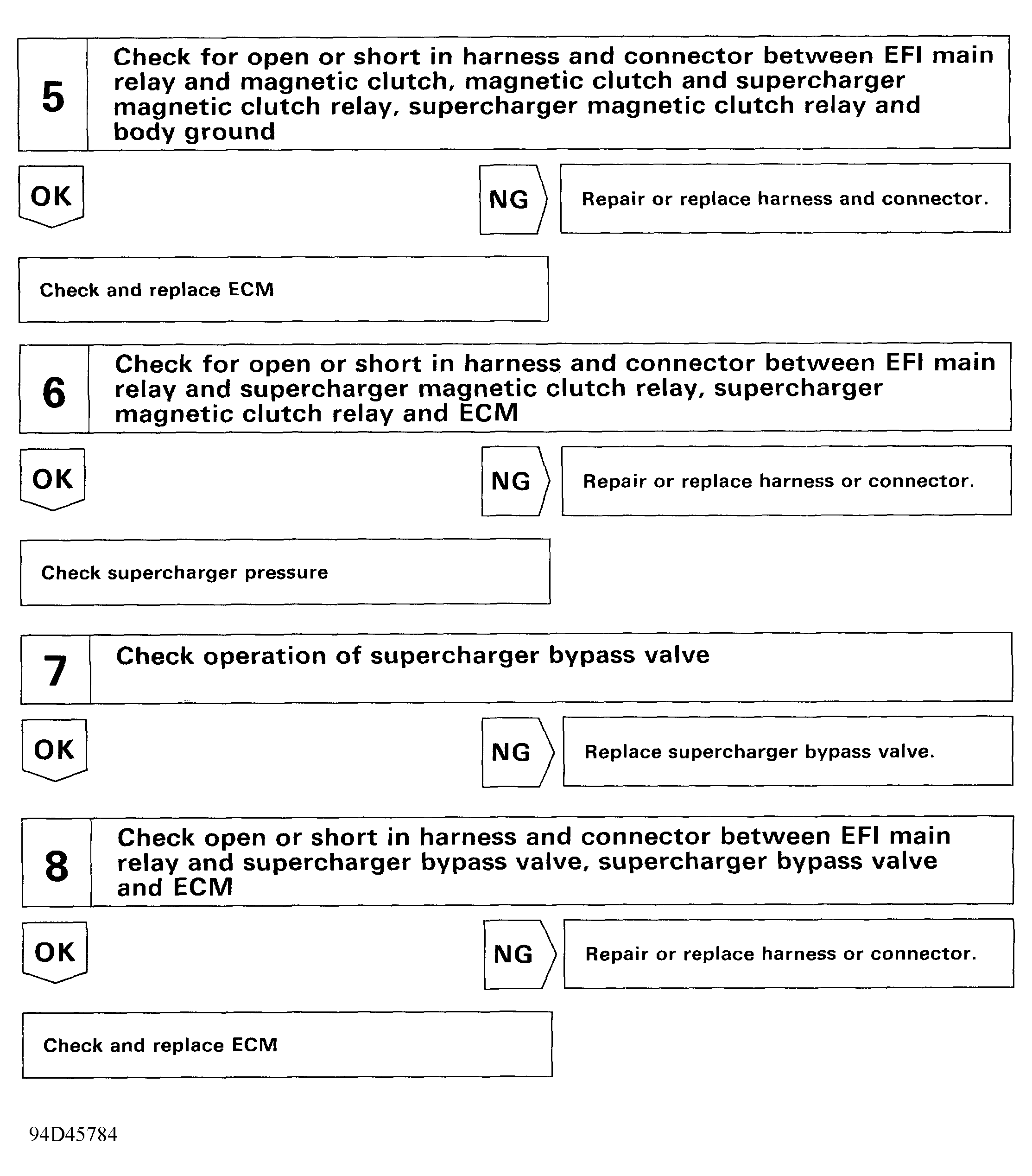

Fig 5: DTC P1510 - Diagnostic Flowchart (5 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

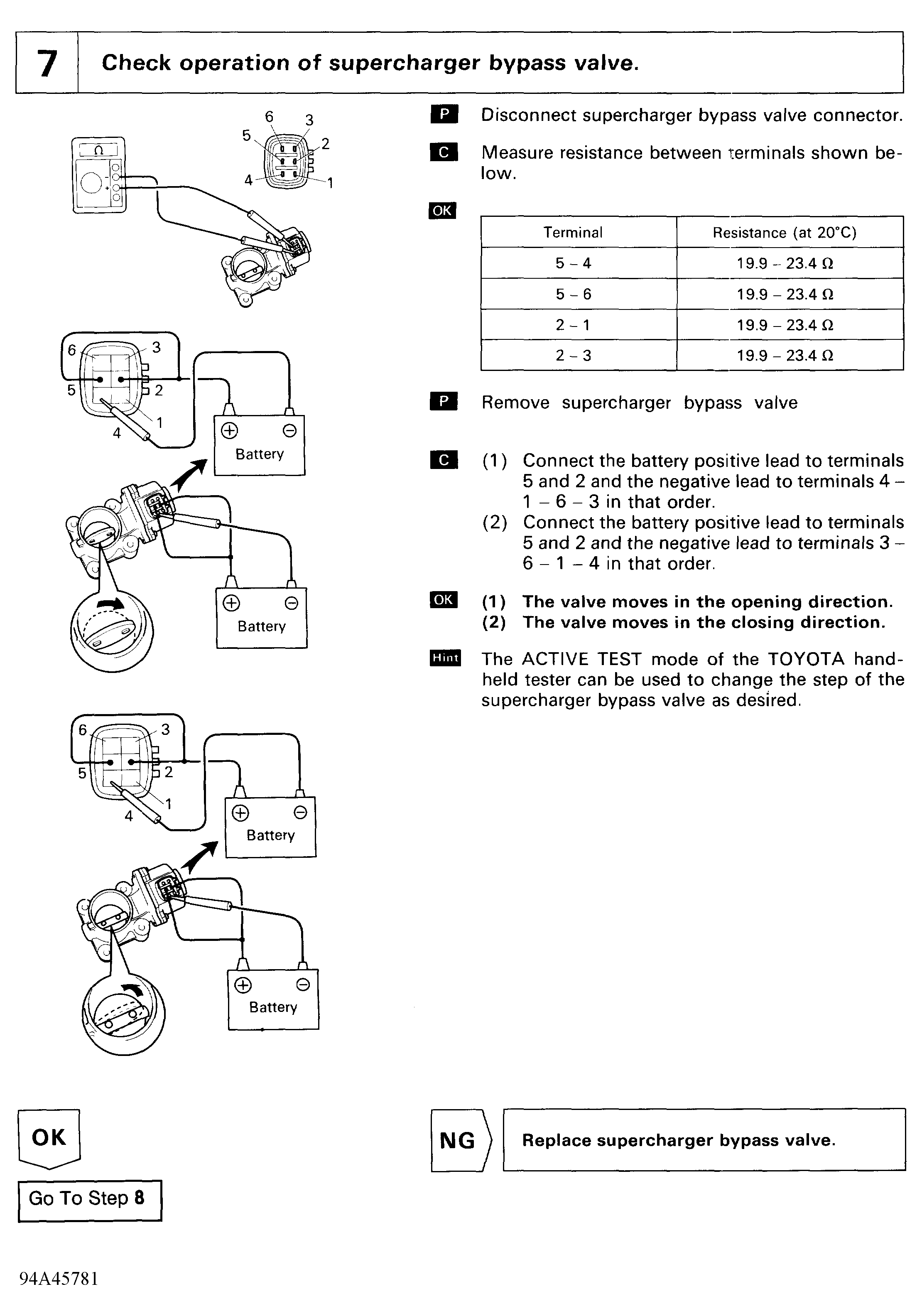

Fig 6: DTC P1510 - Diagnostic Flowchart (6 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

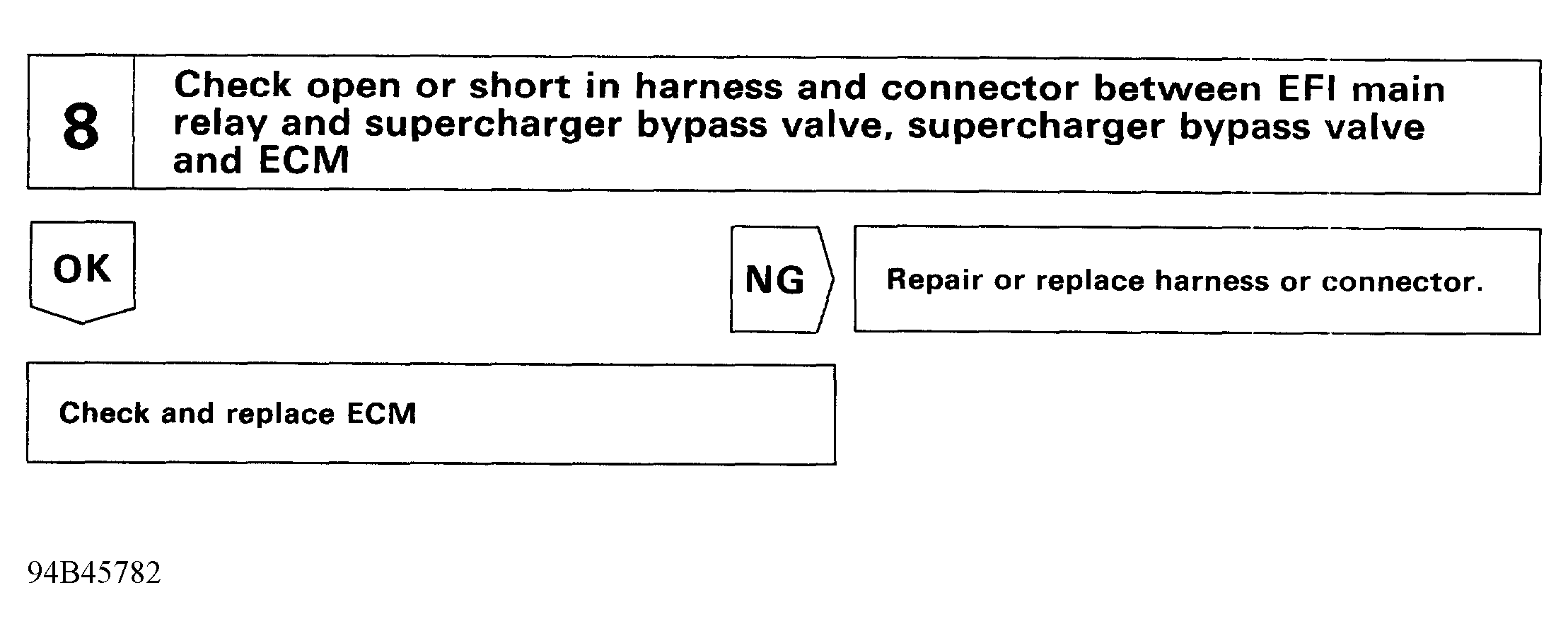

Fig 7: DTC P1510 - Diagnostic Flowchart (7 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
