DTC 24: Intake Air Temperature Signal

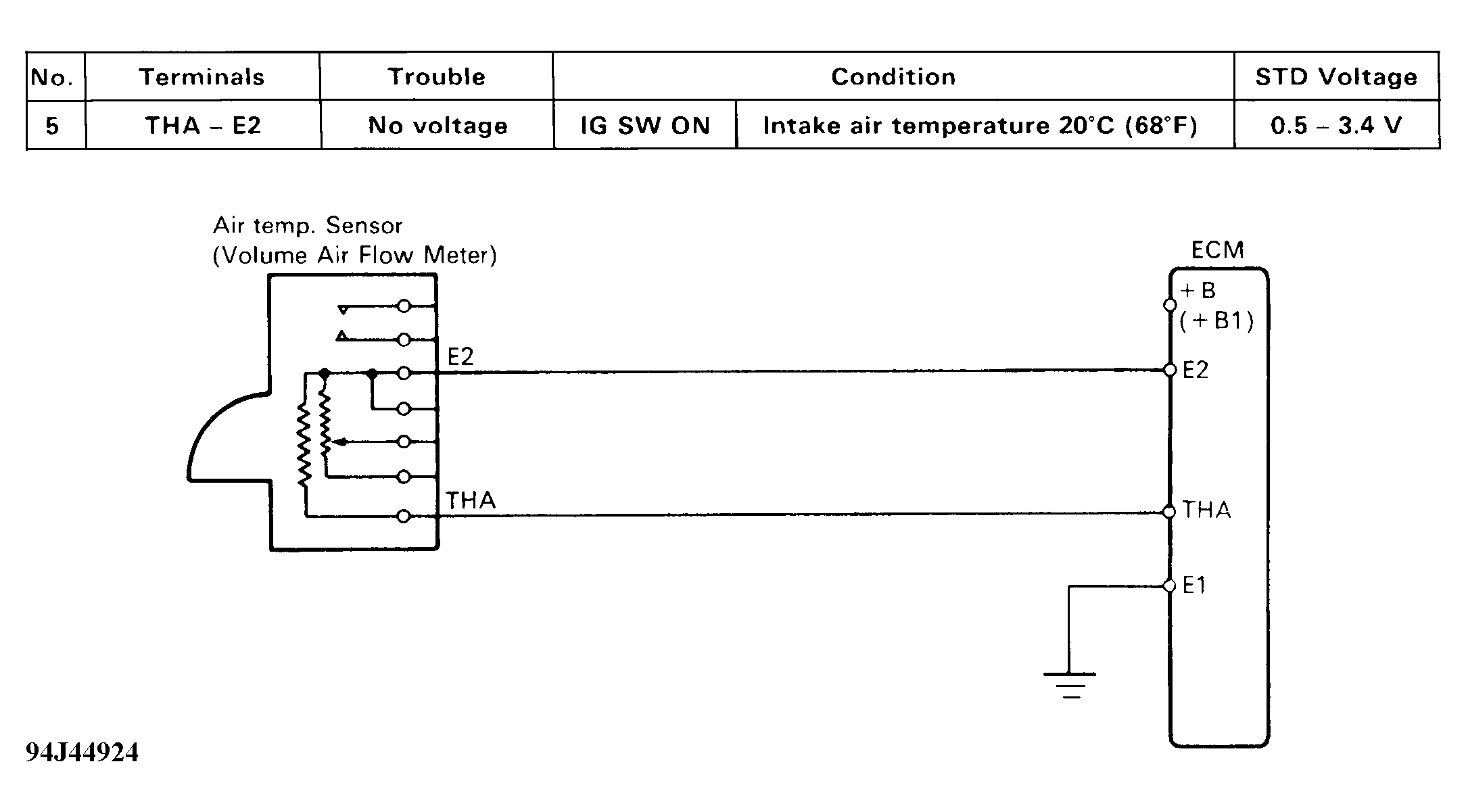

Fig 1: DTC 24 - Schematic

G94J44924

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

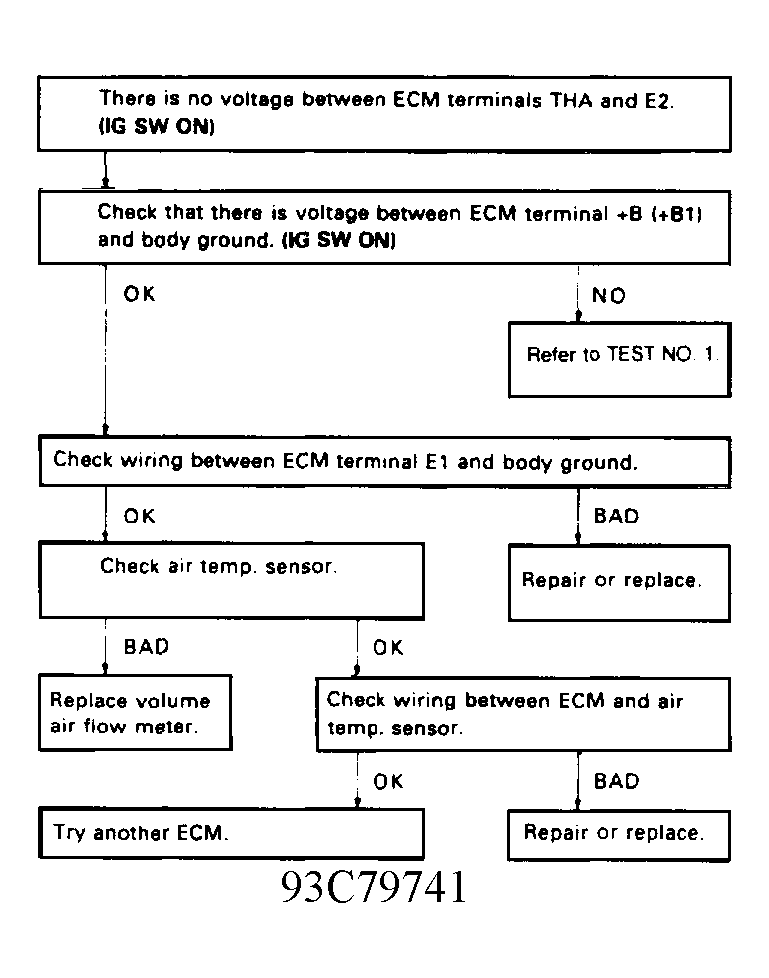

Fig 2: DTC 24 - Diagnostic Flowchart

G93C79741

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
