DTC 31 - Map Sensor Signal (2.2L)

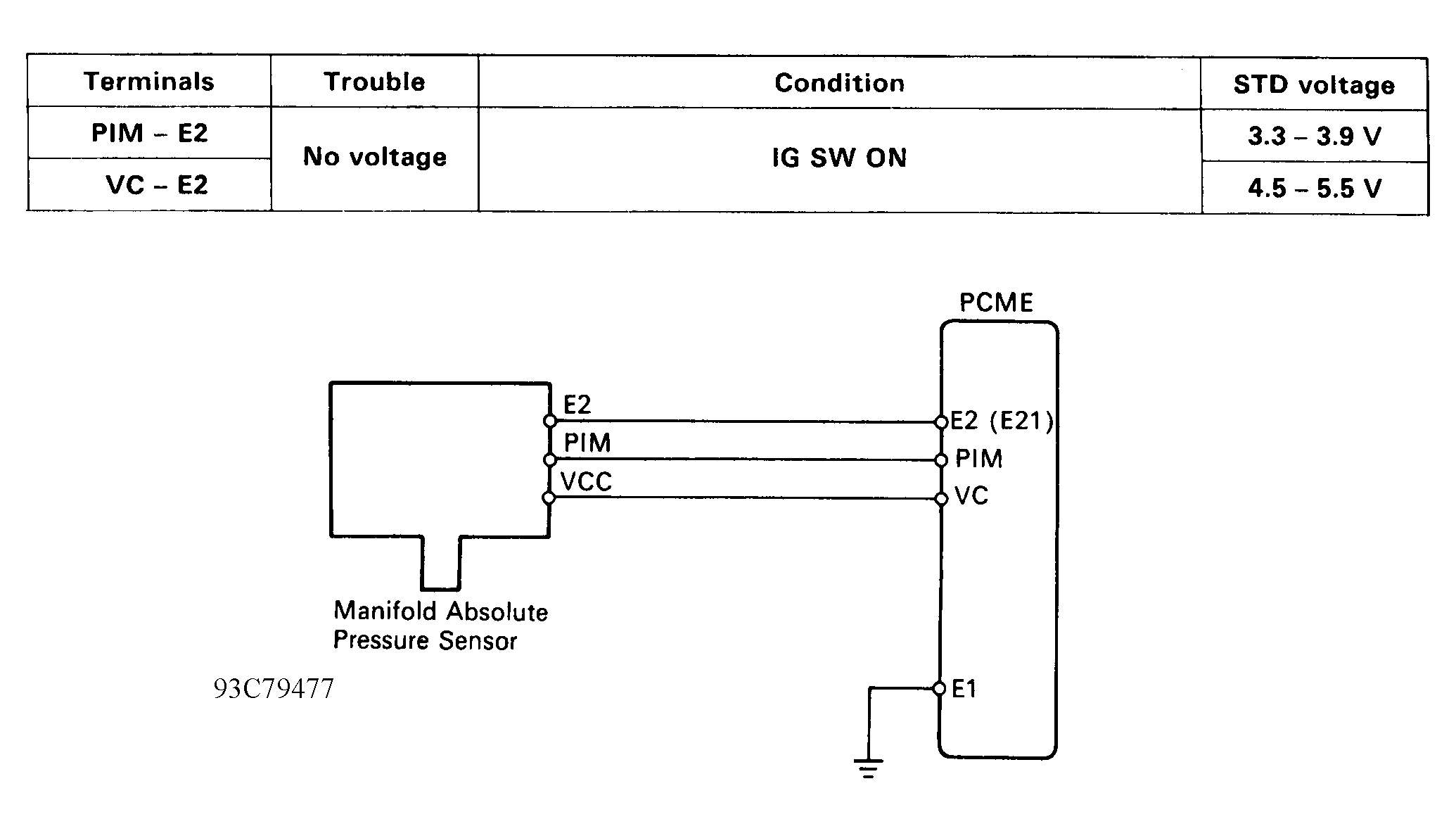

Fig 1: DTC 31 - Schematic

G93C79477

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

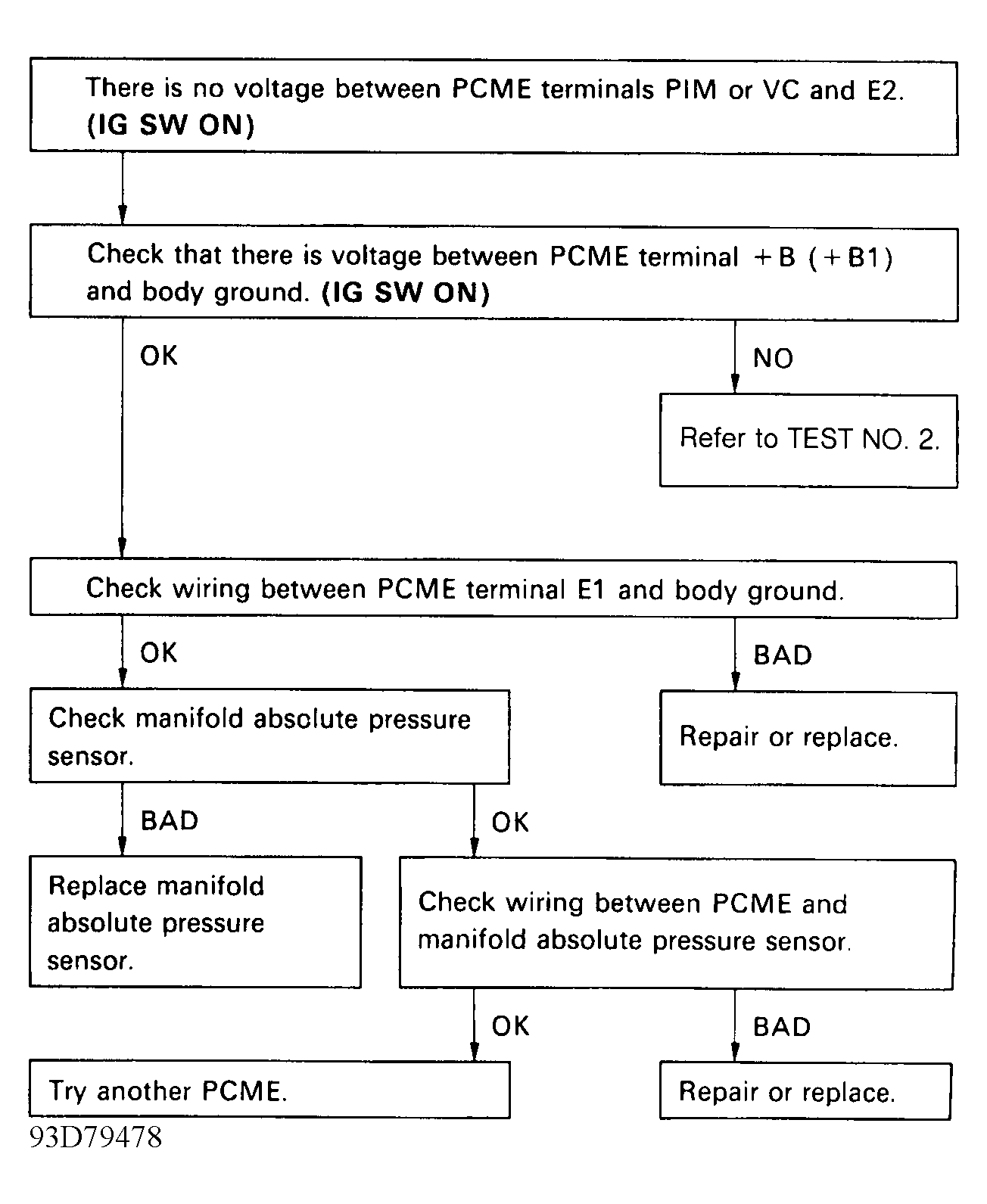

Fig 2: DTC 31 - Diagnostic Flowchart

G93D79478

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
