DTC 21 - No. 1 Oxygen Sensor Signal

Fig 1: DTC 21 - Schematic
G93H79423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

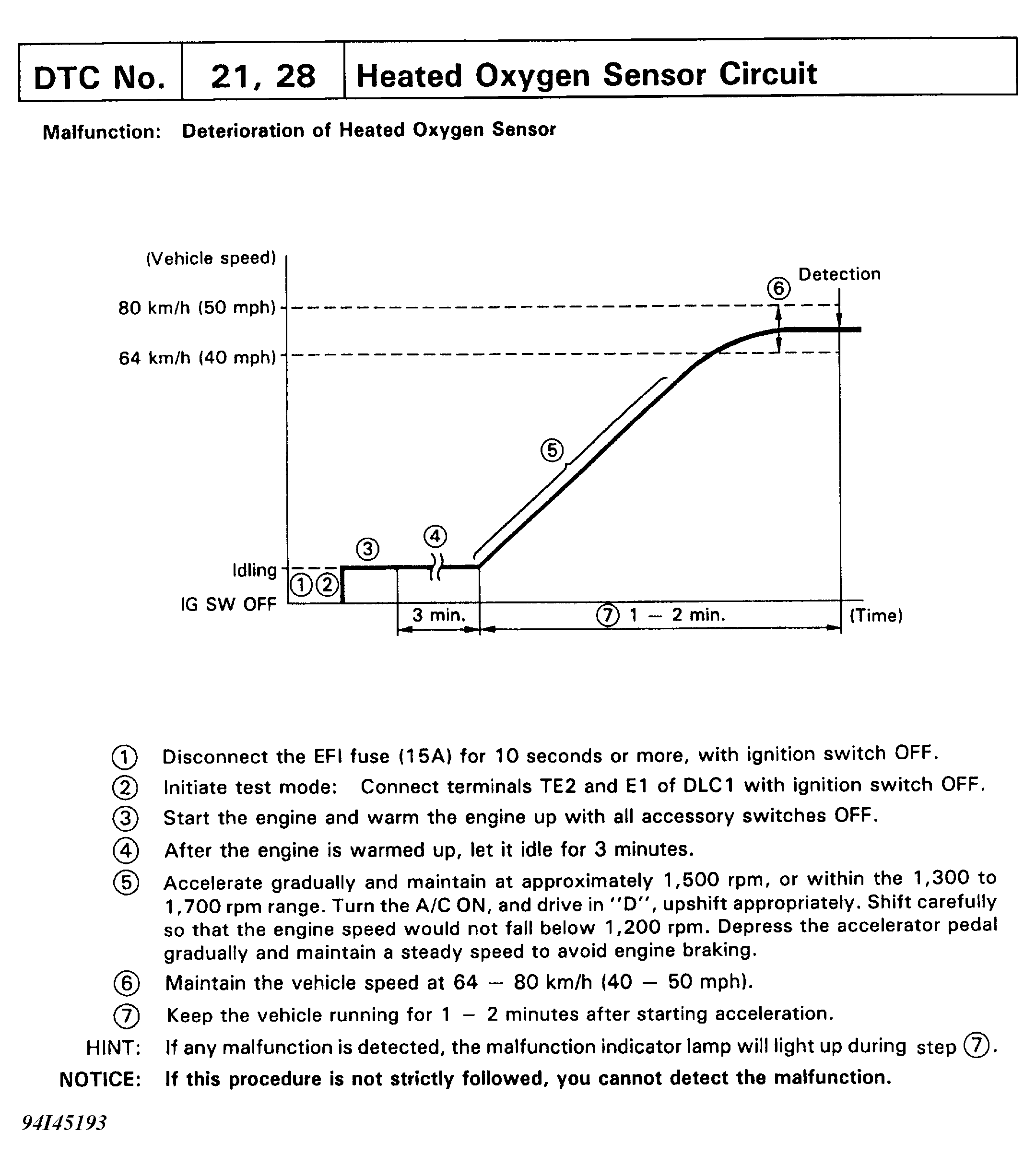

Fig 2: DTC 21 - Driving Detection Pattern
G93I79424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: DTC 21 - Diagnostic Flowchart
G94I45193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
