DTC 14 - Ignition Signal

ECM determines ignition timing. ECM turns on "Tr1" circuit at a predetermined angle before desired ignition timing, and outputs an ignition signal to the Integrated Ignition Assembly (IIA). Since the width of the "IGT" signal is constant, dwell angle control circuit in the IIA determines the time control circuit starts primary current flow to ignition coil, based on engine RPM and ignition timing one revolution ago, that is, the time "Tr2" circuit turns on.

When it reaches the ignition timing, ECM turns off "Tr1" and outputs the "IGT" signal "0". This turns off "Tr2", interrupting the primary current flow and generating a high voltage in the secondary coil, firing the spark plugs. Also, by the counter electromotive force generated when the primary current is interrupted, the ignitor sends an ignition confirmation signal (IGF) to the ECM. The ECM stops fuel injection as a fail safe function when "IGF" signal is not input to ECM.

If "IGF" signal to ECM is not present after 4 consecutive "IGT" signals, check for open or short in "IGF" or "IGT" circuit from distributor to ECM. Check for faulty ignitor or ECM.

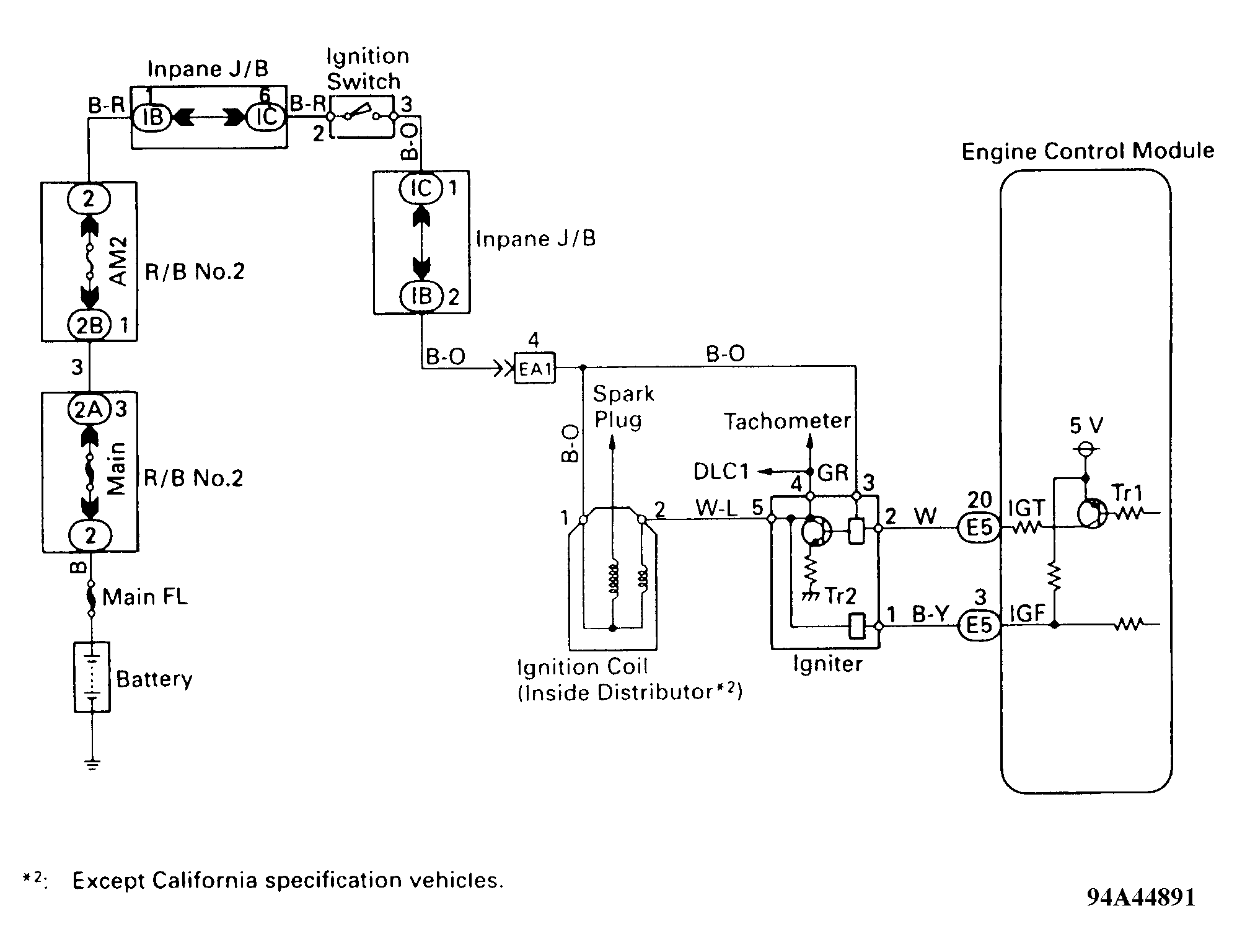

Fig 1: DTC 14 - Schematic
G94A44891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

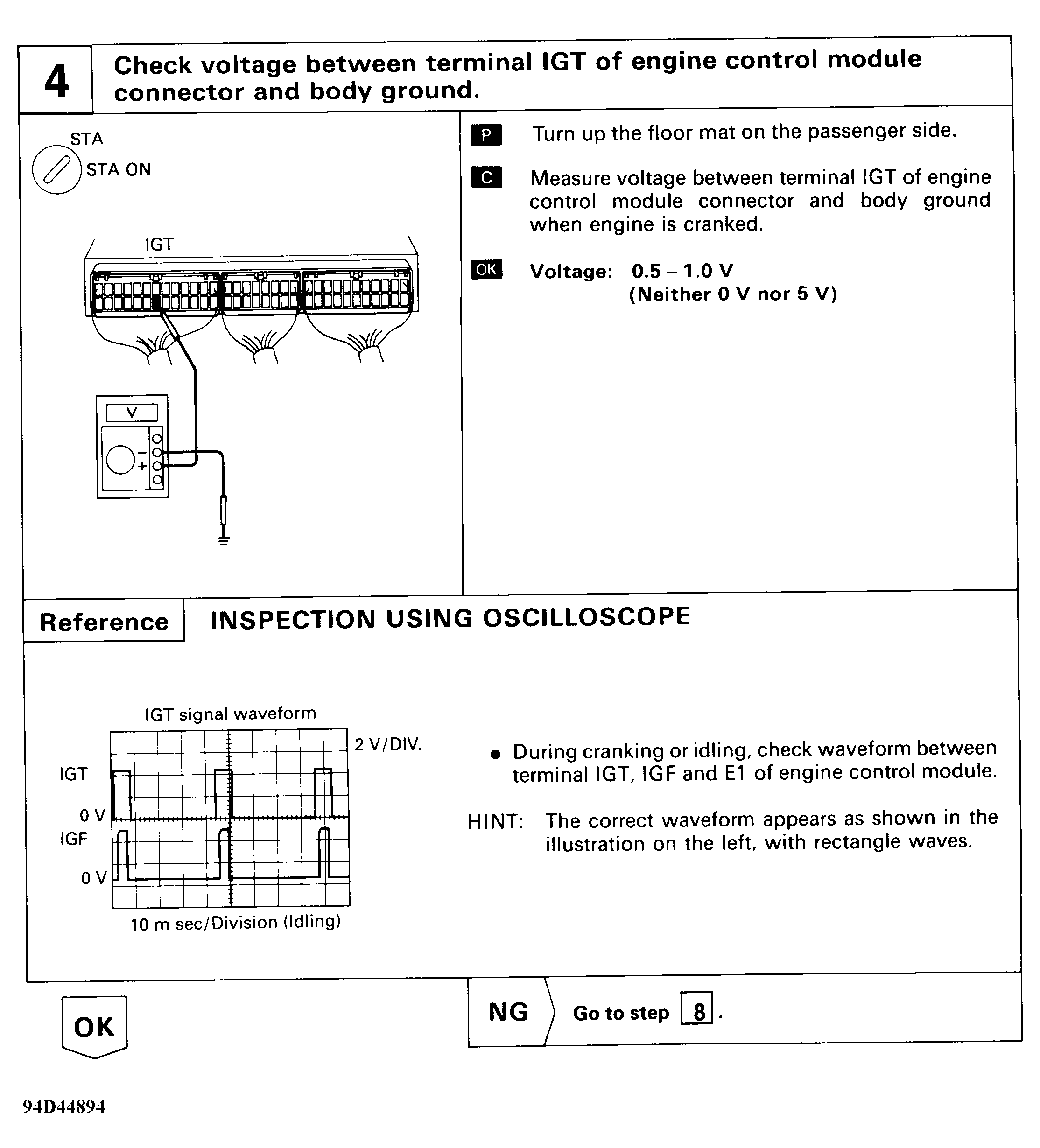

Fig 2: DTC 14 - Diagnostic Flowchart (1 Of 5)
G94D44894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

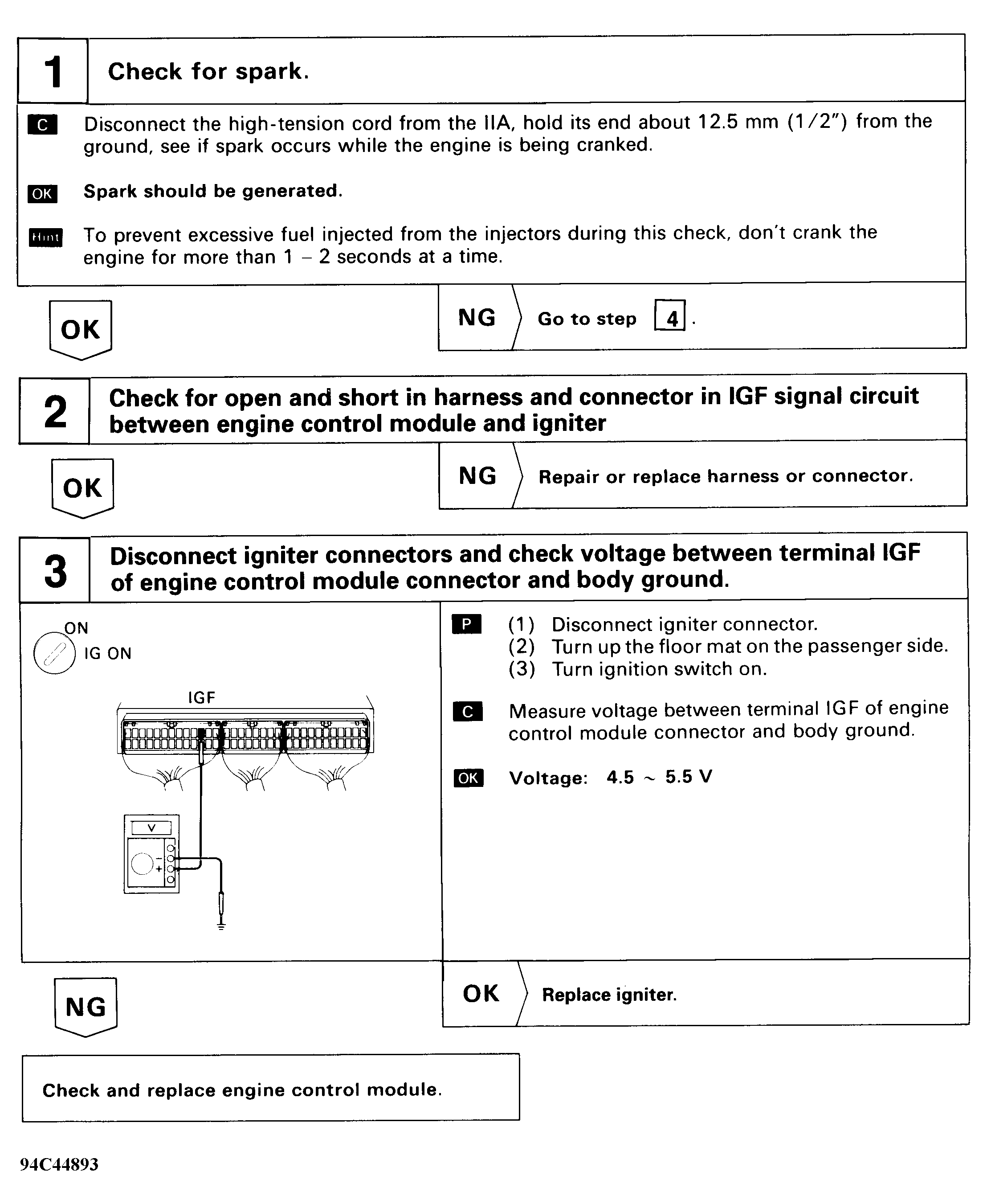

Fig 3: DTC 14 - Diagnostic Flowchart (2 Of 5)
G94C44893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

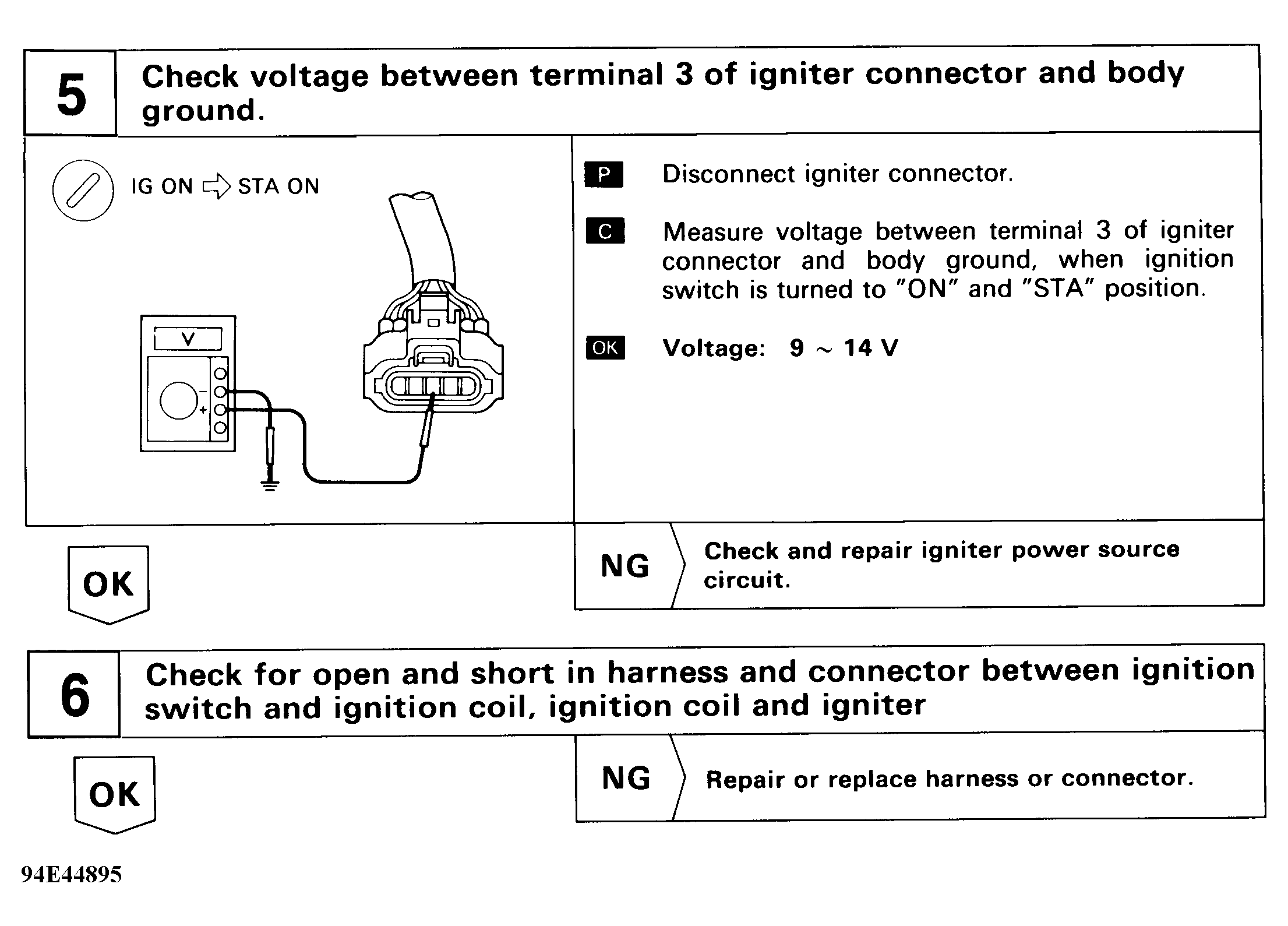

Fig 4: DTC 14 - Diagnostic Flowchart (3 Of 5)
G94E44895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

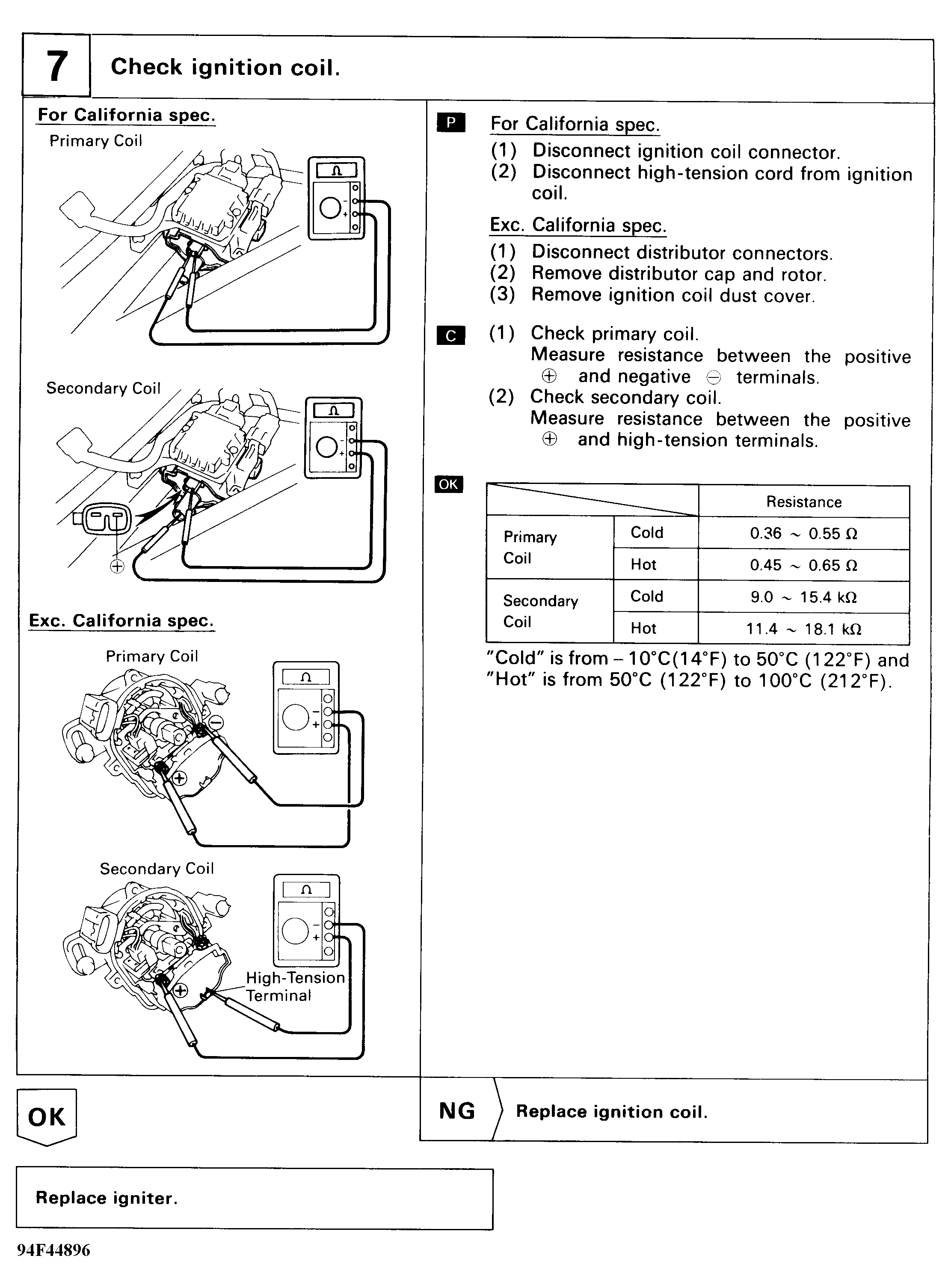

Fig 5: DTC 14 - Diagnostic Flowchart (4 Of 5)
G94F44896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

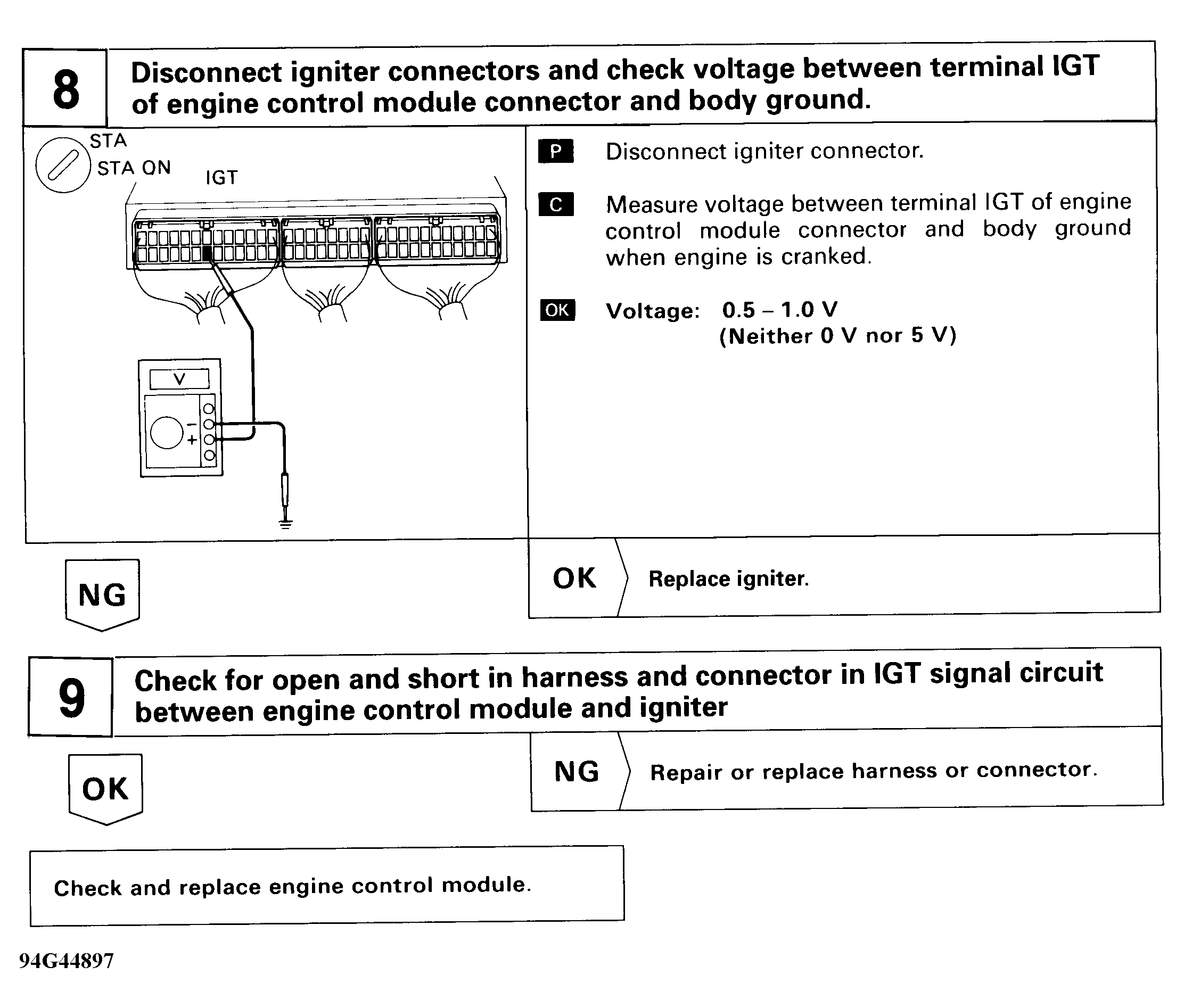

Fig 6: DTC 14 - Diagnostic Flowchart (5 Of 5)
G94G44897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
