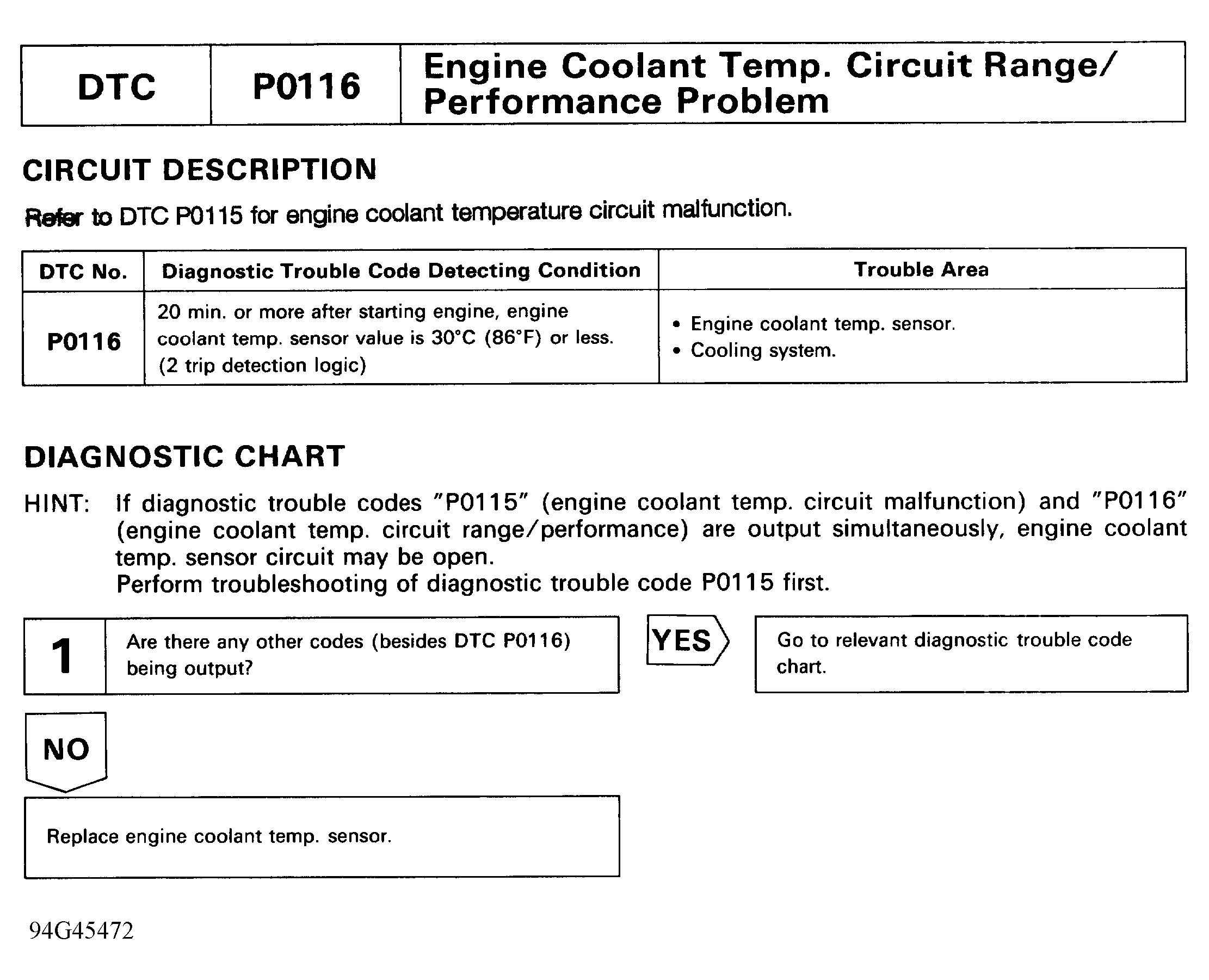

DTC P0116 - Engine Coolant Temperature Sensor Circuit Range/Performance Problem
ECT SENSOR TROUBLE SHOOTING
| DTC No. |
Detecting Condition(s) |
Trouble Area |
| P0116 |
20 min. or more after starting engine, engine coolant temp. sensor value is 30°C (86°F) or less (2 trip detection logic) |
Engine Coolant Temp. sensor. Cooling system. |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
