DTC 41 - Throttle Position Sensor Signal

DTC 41 is set when there is an open or short in throttle position sensor circuit for .5 second or greater. Code will not set when throttle position connector is disconnected. Check for open or short in throttle position sensor circuit, a faulty throttle position sensor or ECM.

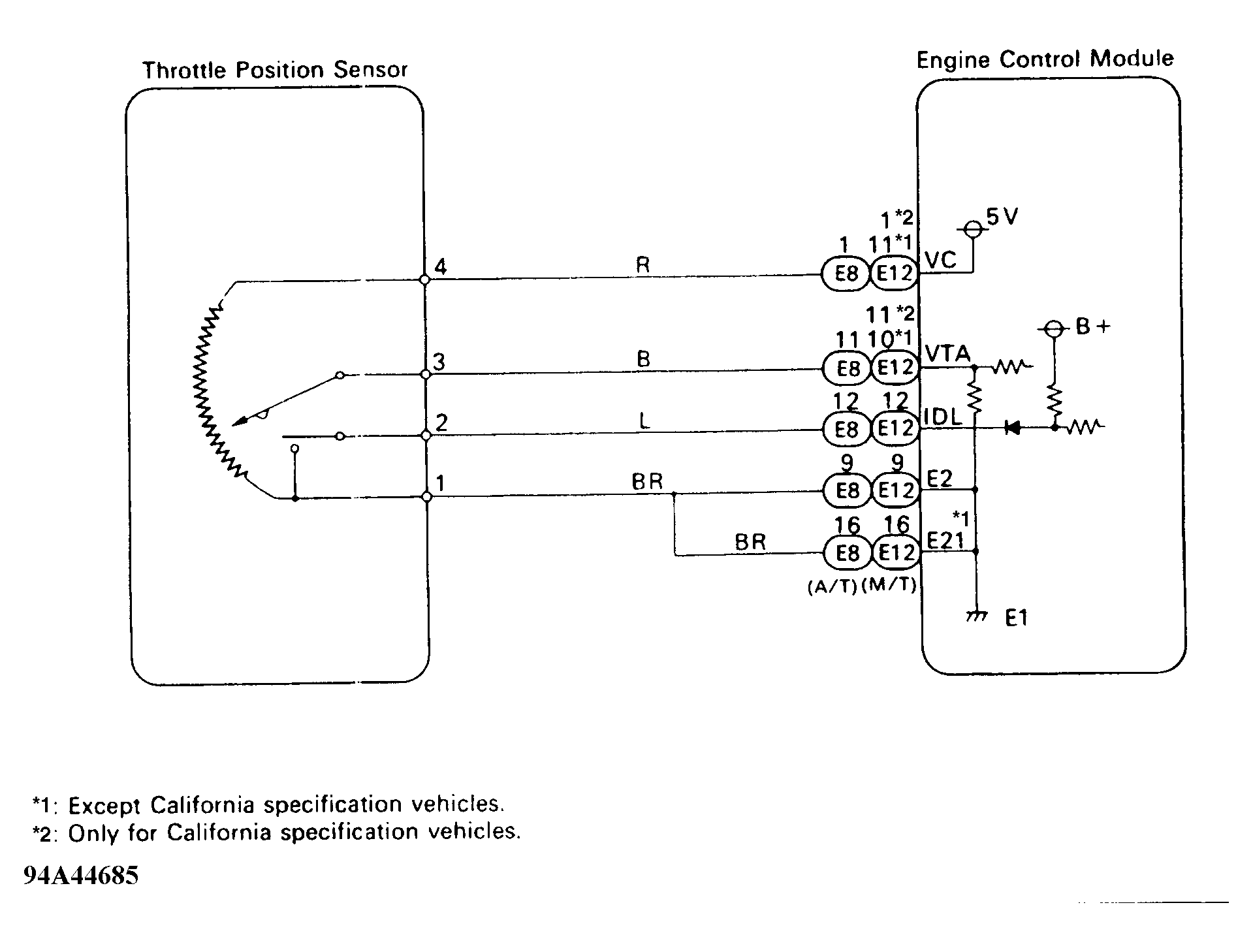

Fig 1: DTC 41 - Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

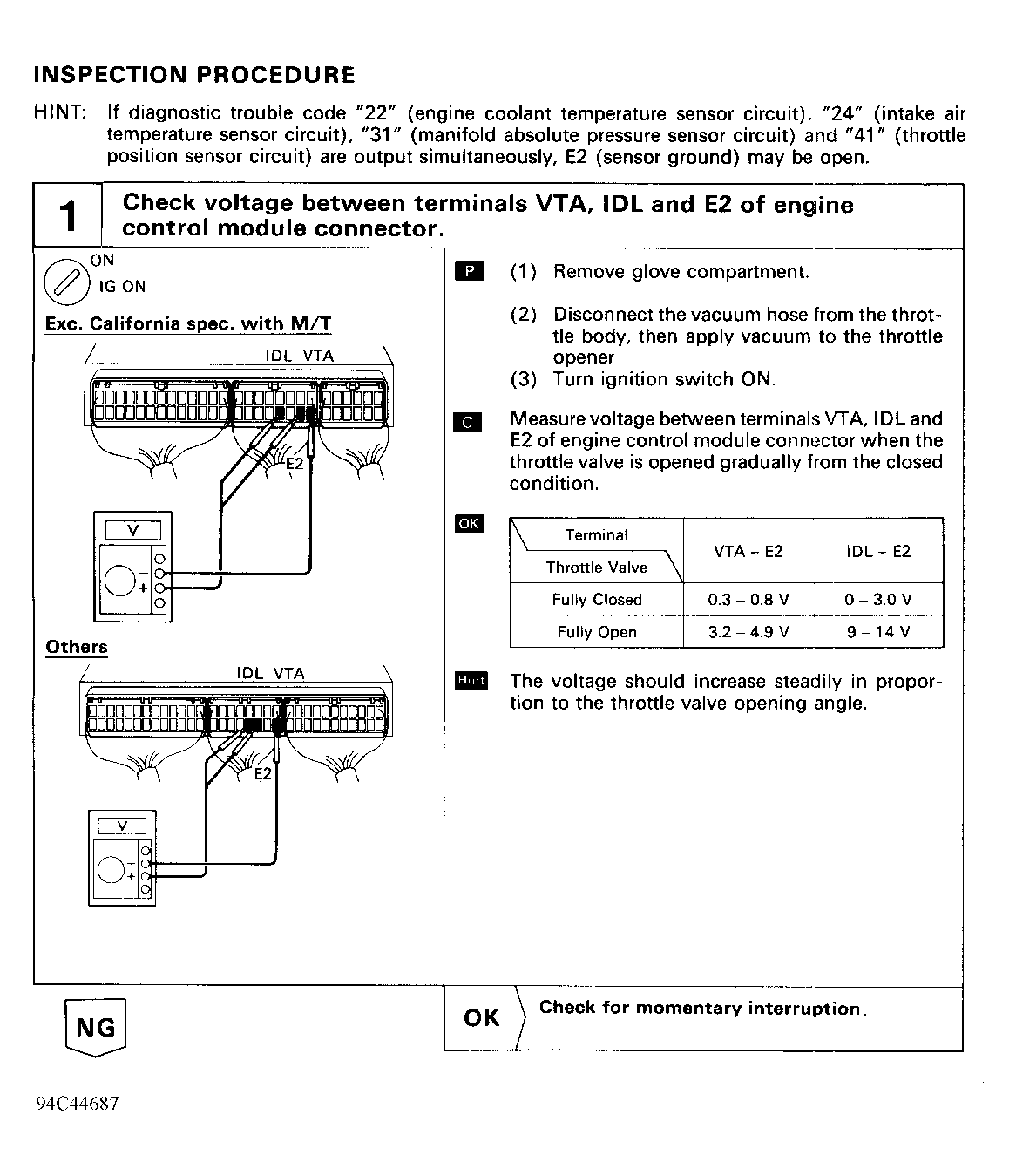

Fig 2: DTC 41 - Diagnostic Flowchart (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

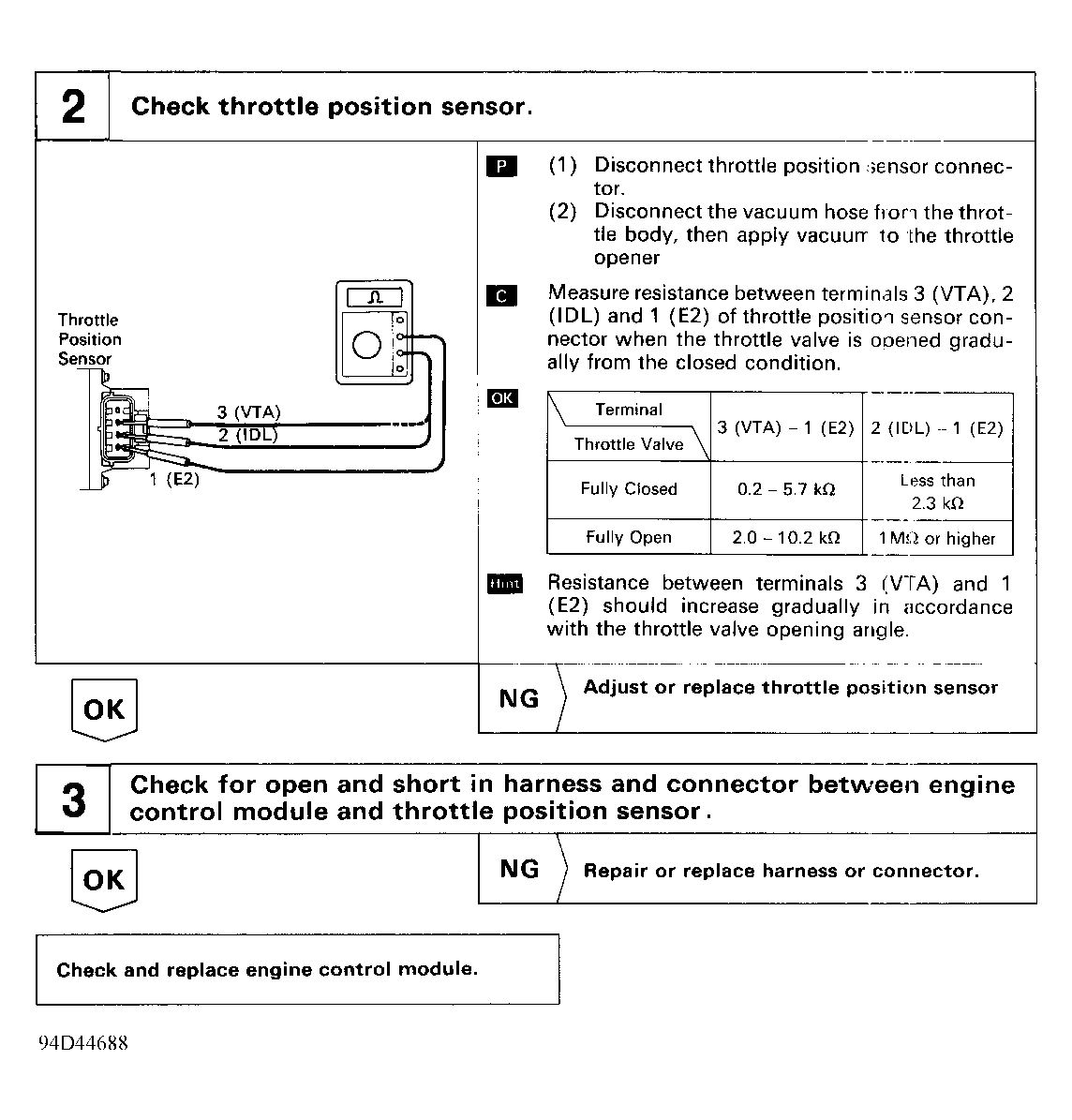

Fig 3: DTC 41 - Diagnostic Flowchart (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
