DTC P0420 - Catalyst System Efficiency Below Threshold

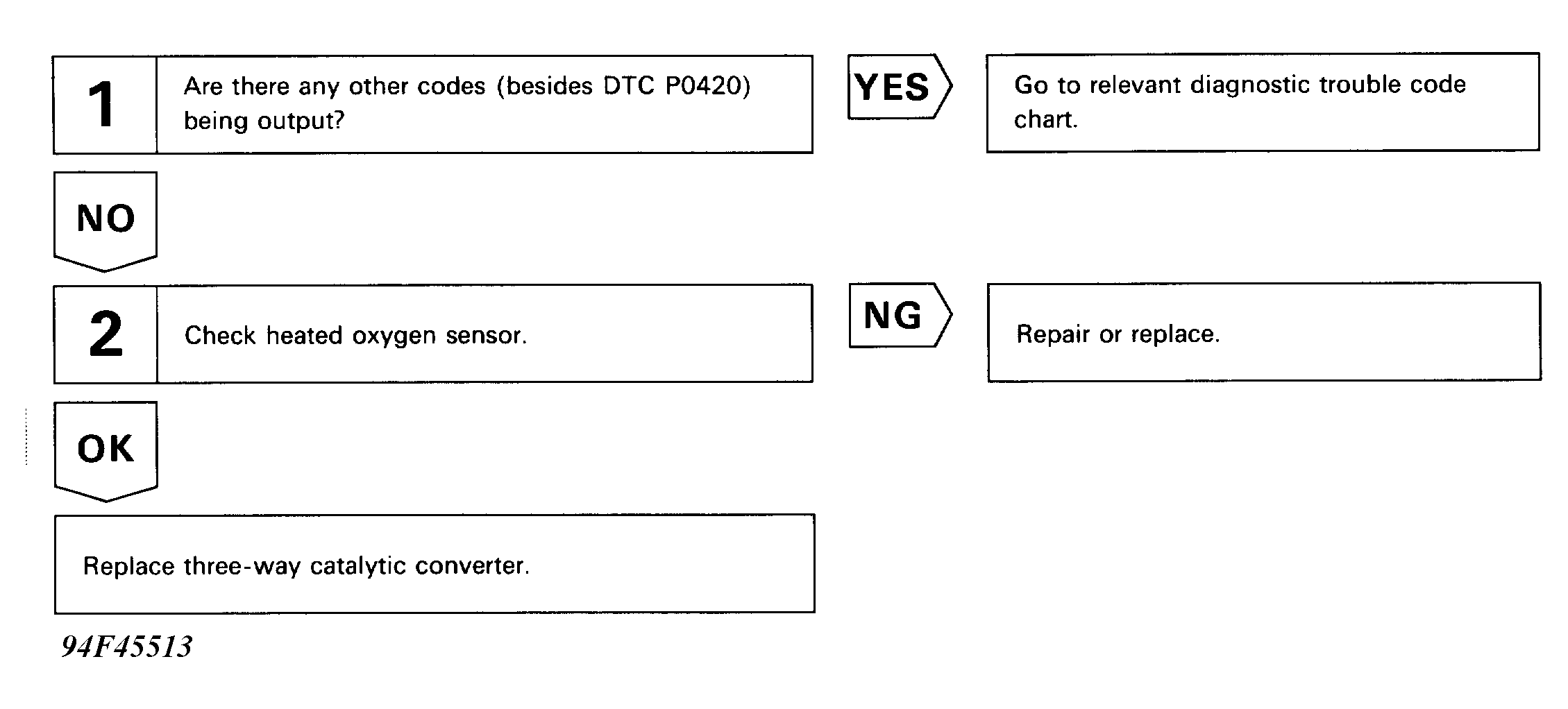

Fig 1: DTC P0420 - Diagnostic Flowchart
G94E45512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: DTC P0420 - System Check Driving Pattern
G94F45513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
