Test No. 1 ECM (+B) Circuit Check

TEST NO. 1 - ECM (+B) CIRCUIT CHECK

Terminal Trouble Condition STD Voltage
BATT-E1 No Voltage All 9-14V
+B - E1 " Ignition Switch ON "
+B1 - E1 " " "

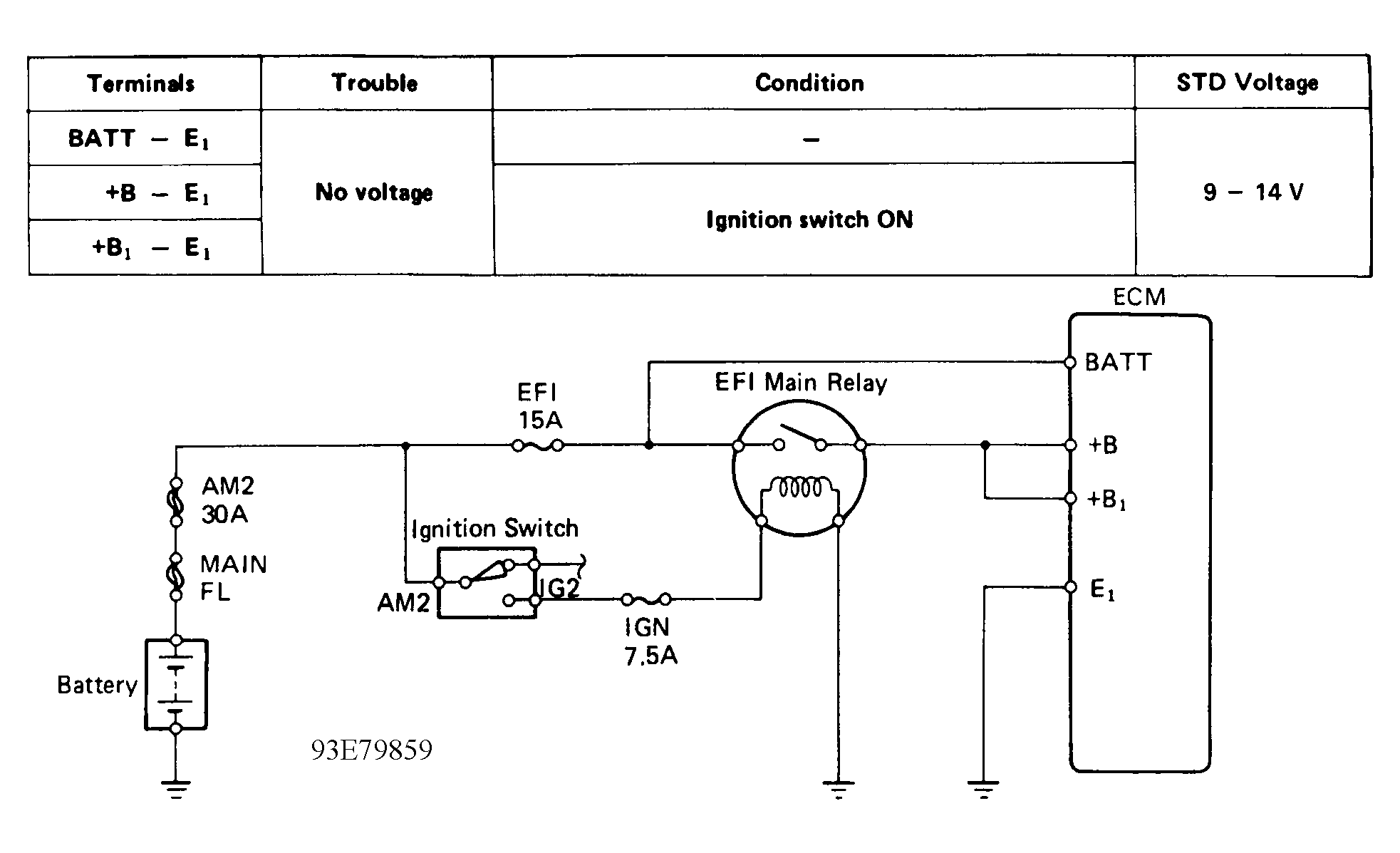

Fig 1: Test No. 1 - Schematic
G93E79859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

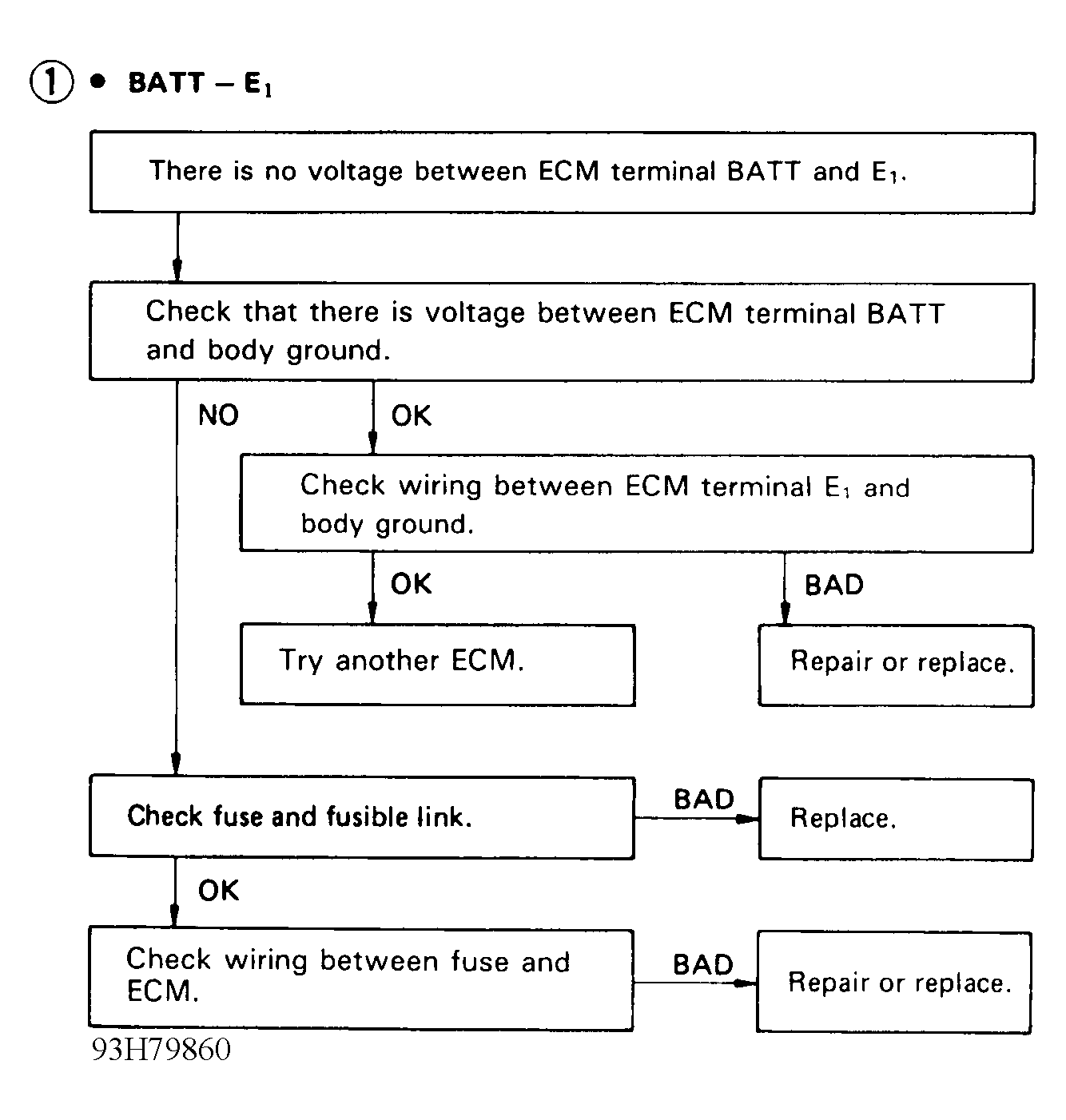

Fig 2: Test No. 1 - Diagnostic Flowchart (1 Of 2)
G93H79860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

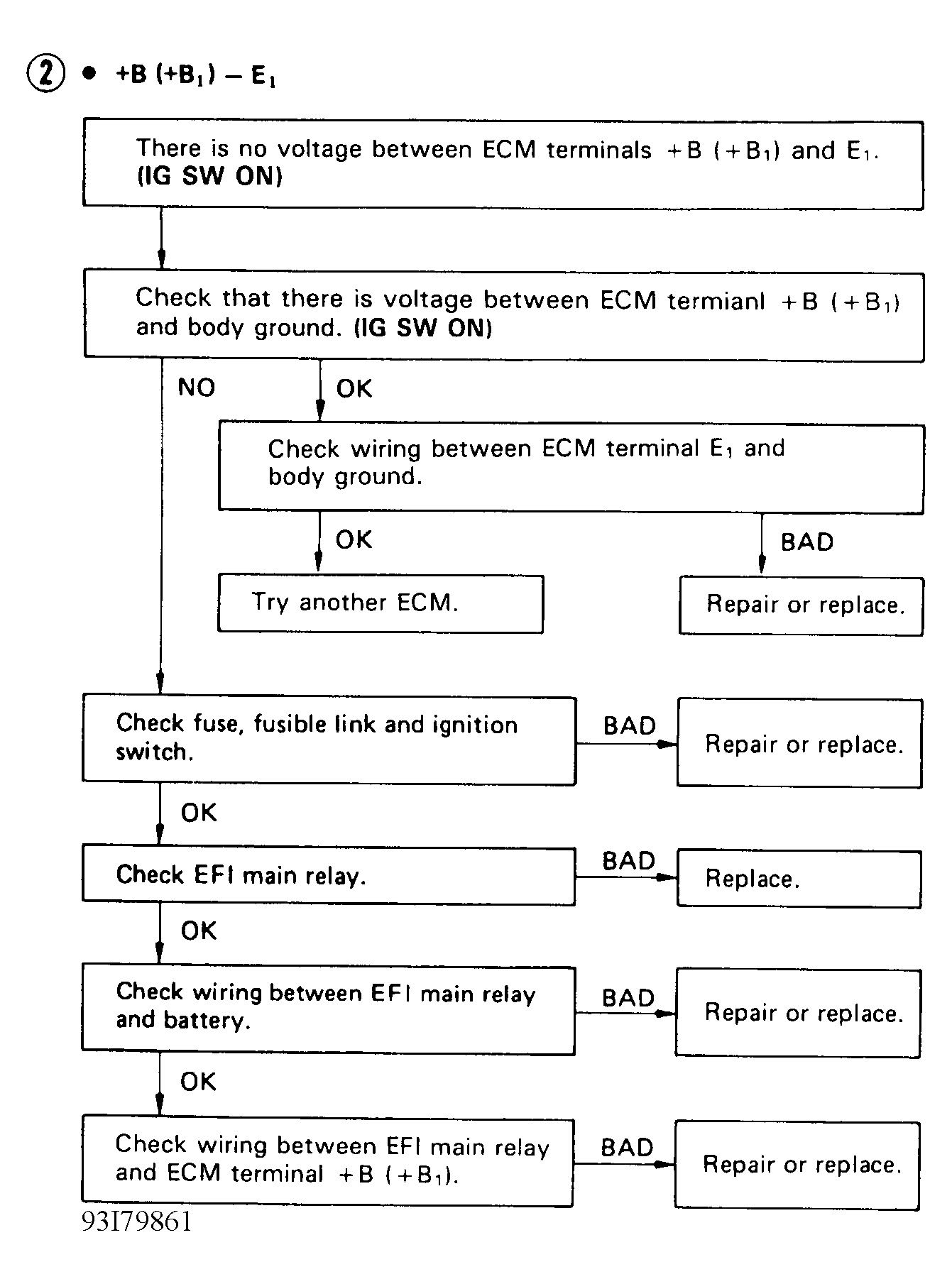

Fig 3: Test No. 1 - Diagnostic Flowchart (2 Of 2)
G93I79861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
