Testing Anti-Theft Circuits: Notes

NOTE: Perform all tests using a volt-ohmmeter with a minimum 10 -megohm input impedance. See Fig 1- Fig 3 for additional circuit testing.

Fig 1: Anti-Theft ECU Connector Terminal ID

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

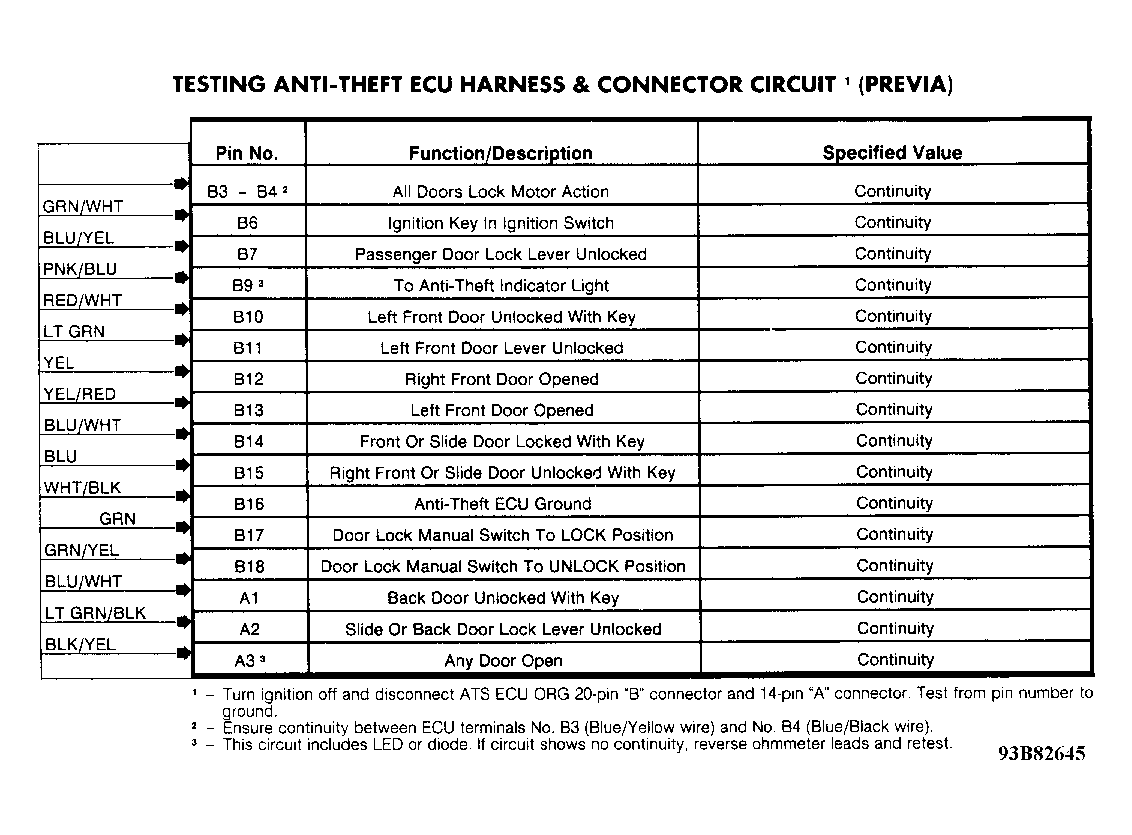

Fig 2: Testing Anti-Theft ECU Harness & Connector Circuit

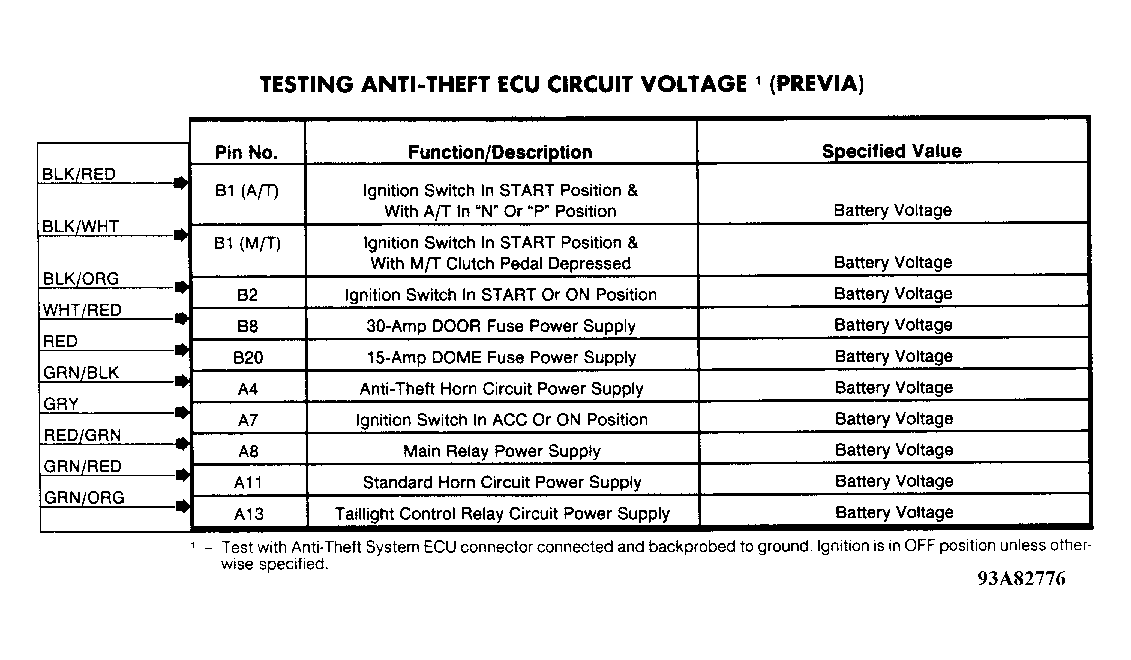

Fig 3: Testing Anti-Theft ECU Circuit Voltage
