DTC 41: IG Power Source Circuit

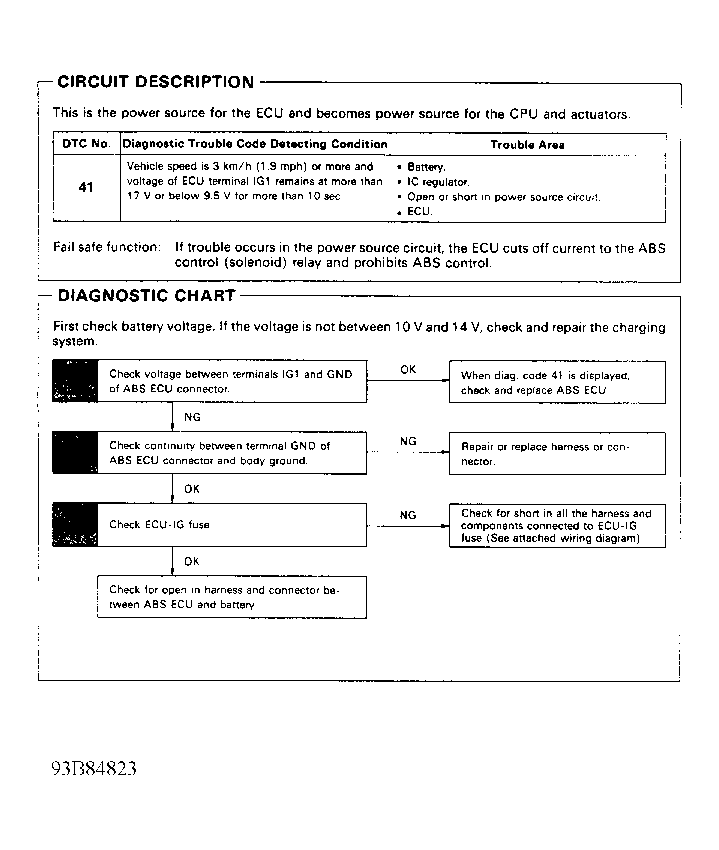

Fig 1: IG Power Source Circuit (1 of 4)
G93B84823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: IG Power Source Circuit (2 of 4)
G93C84824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: IG Power Source Circuit (3 of 4)
G93D84825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: IG Power Source Circuit (4 of 4)
G93E84826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
