Code 41/Test 9 - Throttle Position Sensor Signal (3S-GTE)

CODE 41/TEST 8-TPS SENSOR SIGNAL TROUBLE

Terminals	Trouble	Condition	STD Voltage
IDL - E2	No Voltage	IG SW ON-Throttle Valve OPEN	4.5-5.5V
VC - E2		IG SW ON	4.5-5.5V
VTA - E2		IG SW ON-Throttle Valve SHUT	0.1-1.0V
		IG SW ON-Throttle Valve OPEN	3.2-4.2V

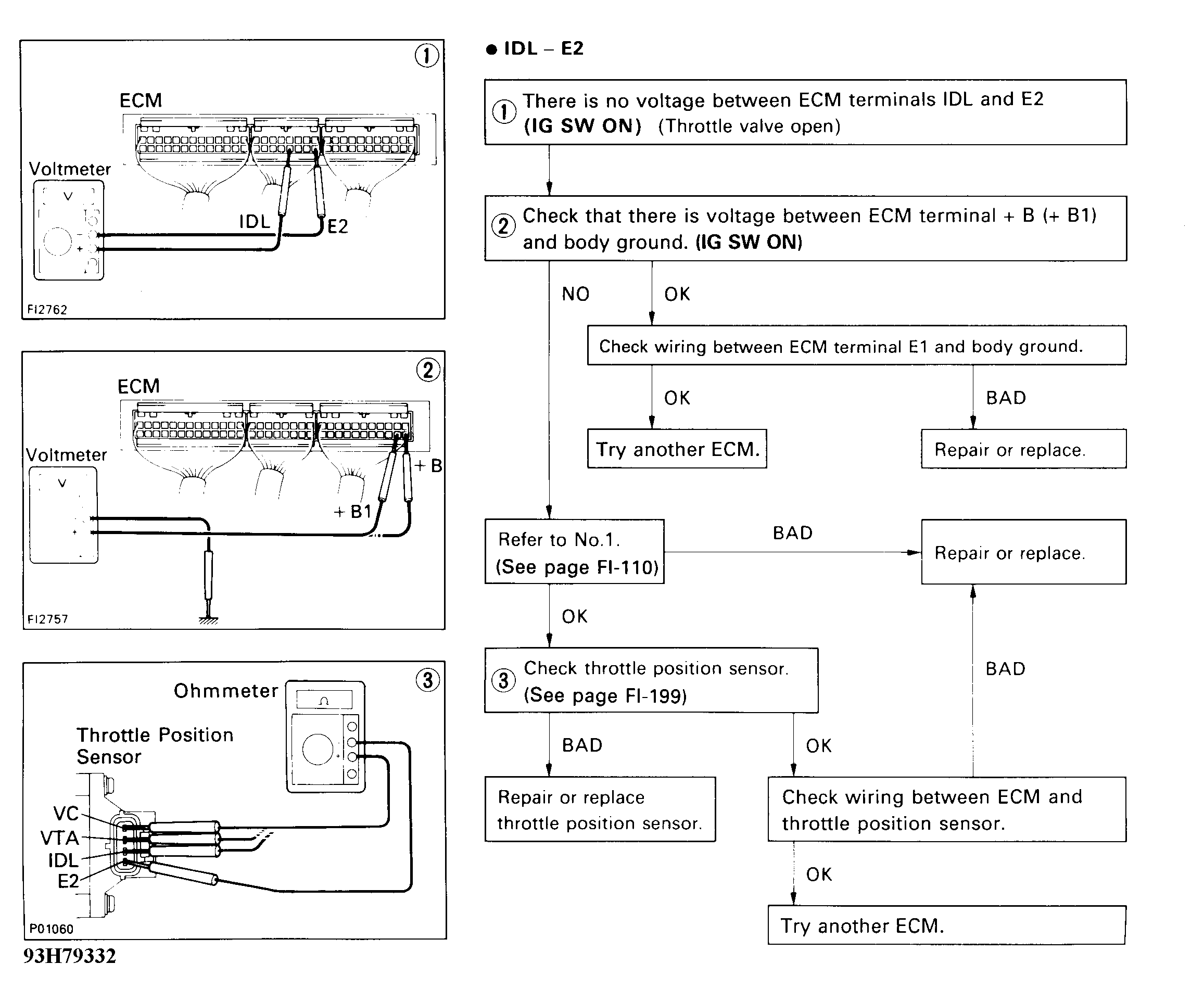

Fig 1: Code 41/Test No. 9 Flow Chart, Terminals IDL - E2 (3S-GTE) Throttle Position Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

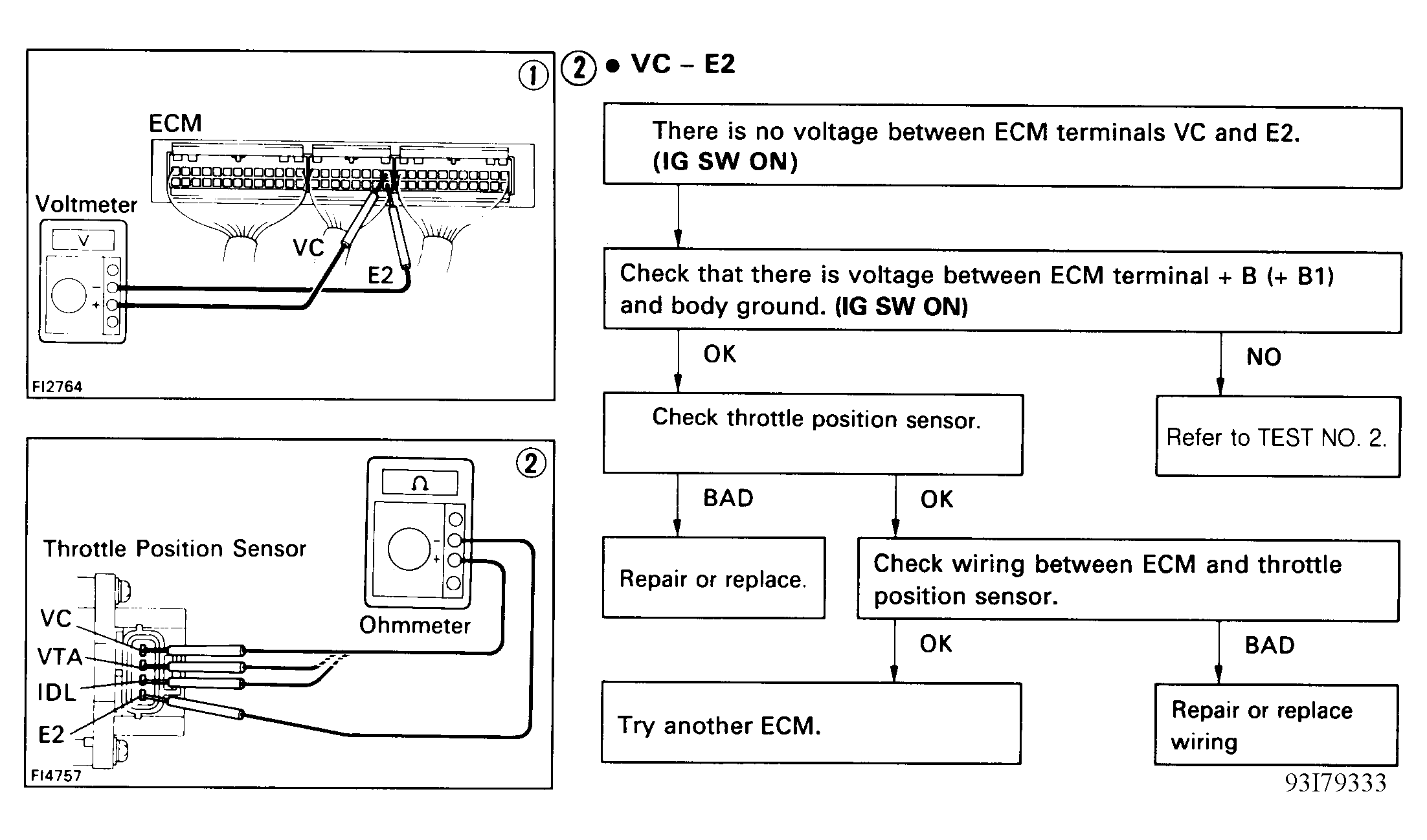

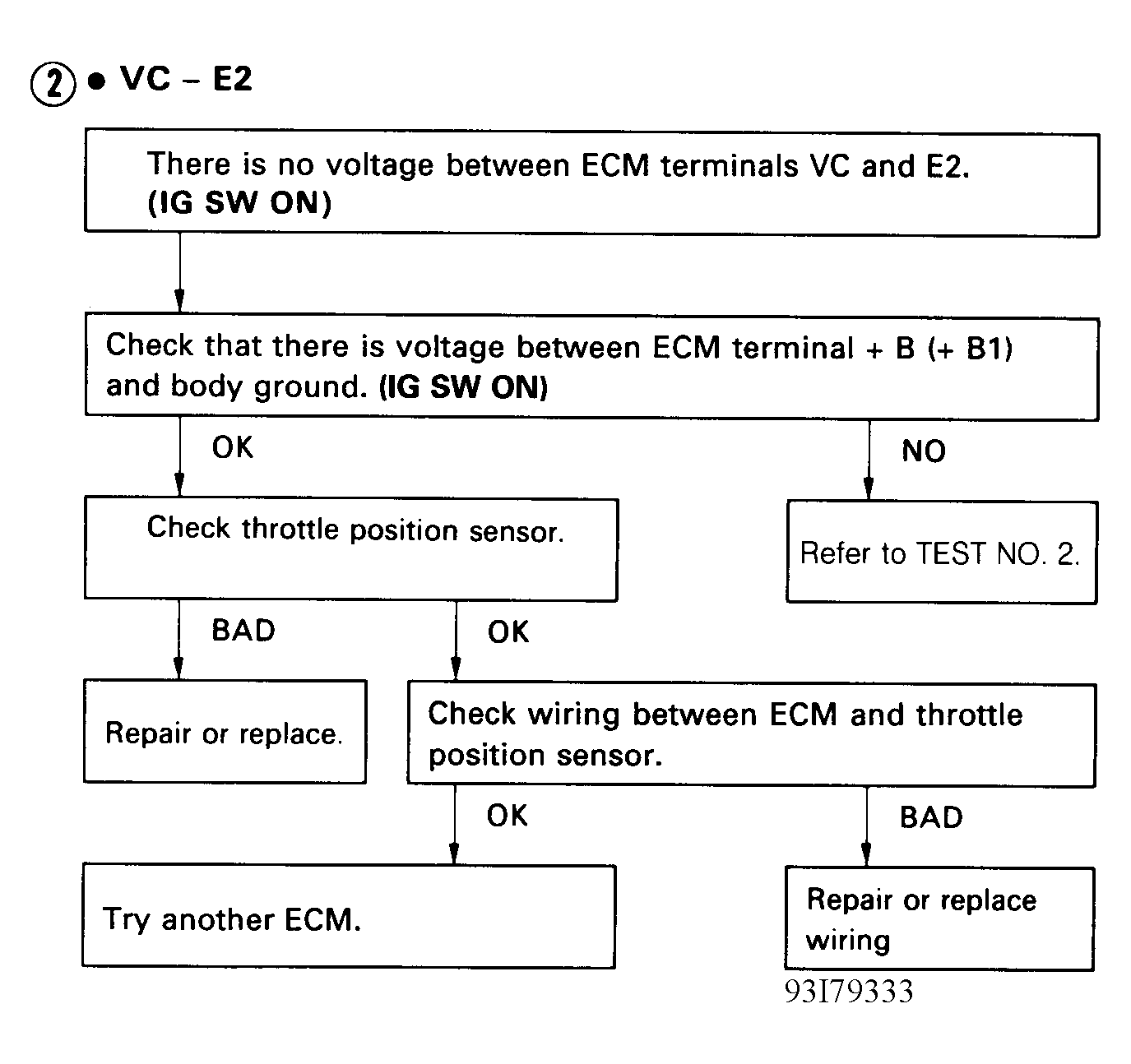

Fig 2: Code 41/Test No. 9 Flow Chart, Terminals VC - E2 (3S-GTE) Throttle Position Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Code 41/Test No. 9 Flow Chart, Terminals VTA - E2 (3S-GTE) Throttle Position Sensor Signal

Fig 4: Code 41/Test No. 9 Schematic (3S-GTE) Throttle Position Sensor Signal
