Code 31, 32/Test No. 6 - Airflow Meter Signal

CODE 31,32/TEST NO. 6-AIRFLOW METER SIGNAL TROUBLE

Terminals Trouble Condition STD Voltage
VC - E2 No Voltage Ignition Switch ON 4 - 6V
VS - E2 " Ignition Switch ON Measuring Plate CLOSED 4 - 5V
VS - E2 " Ignition Switch ON Measuring Plate OPEN 0.2 - 0.8V
VS - E2 " Idling 2 - 4V
VS - E2 " 3000 RPM 0.3 - 1.0V
Fig 1: Code 31, 32/Test No. 6 Schematic Airflow Meter Signal
G91F17827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

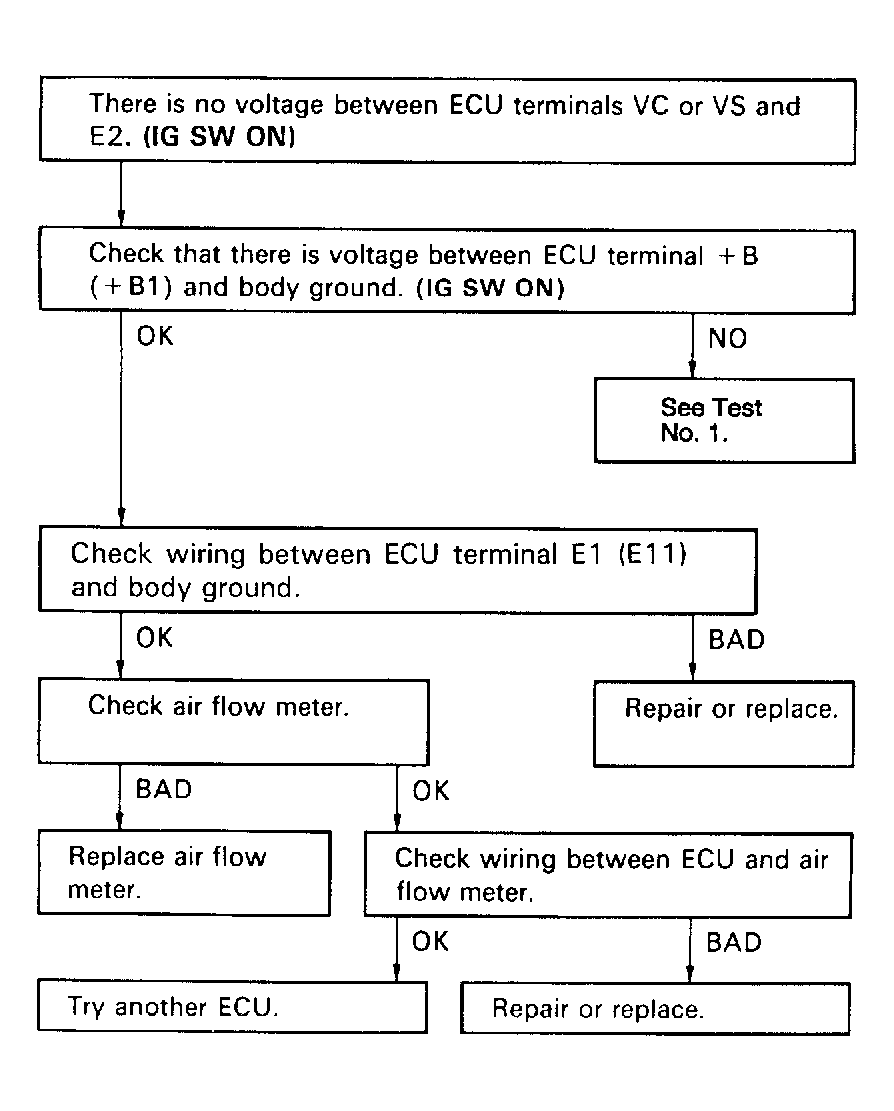

Fig 2: Code 31, 32/Test No. 6 Flow Chart Airflow Meter Signal
G91G17828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
