Code 21, 28/Test No. 3 - Oxygen Sensor Signal

Fig 1: Code 21/Test No. 3 Schematic Oxygen Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

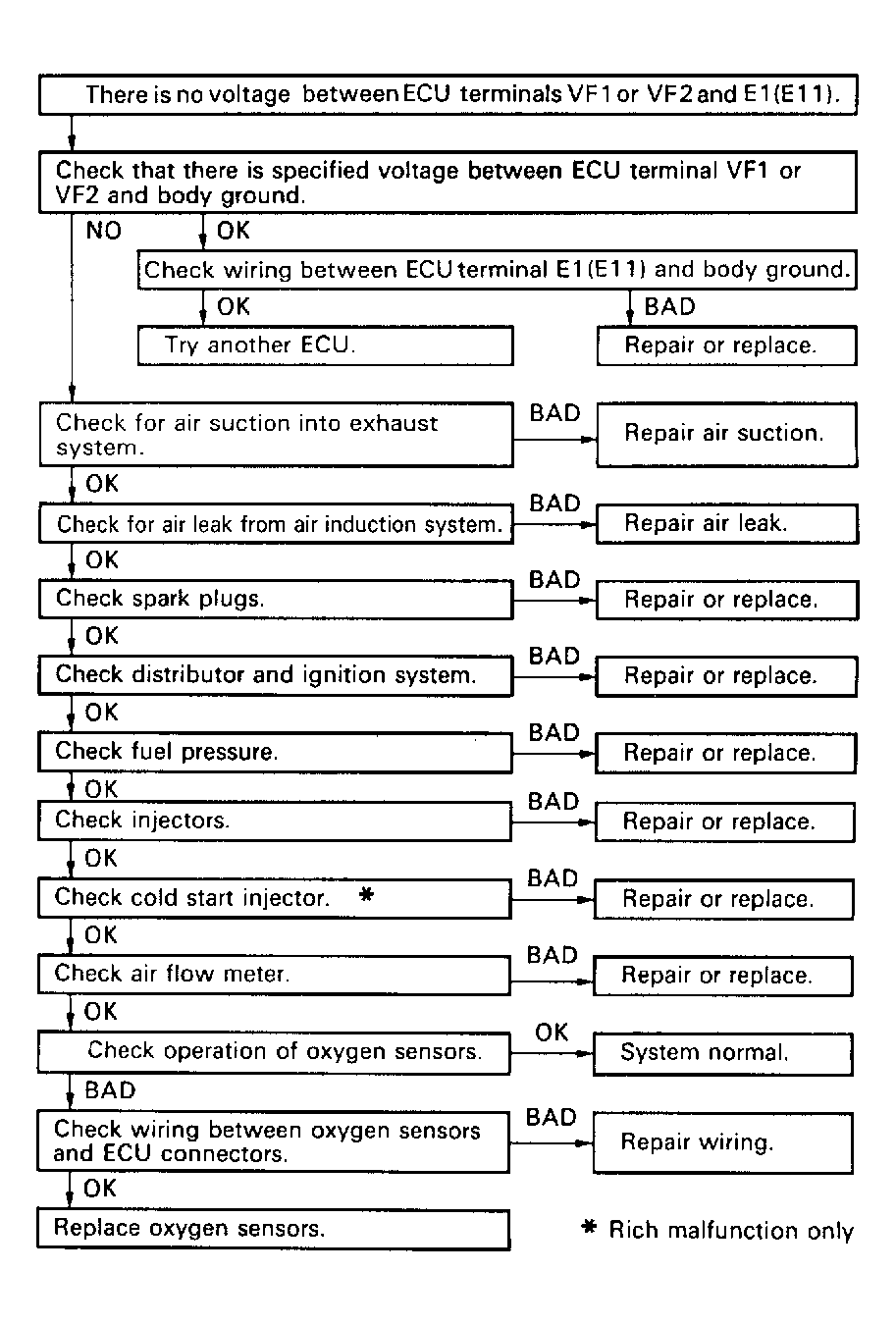

Fig 2: Code 21/Test No. 3 Flow Chart Oxygen Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
