5S-FE Without Electronically Controlled Transaxle (ECT)

NOTE: The following table is for models WITHOUT Electronically Controlled Transaxle (ECT).
CODE 41/TEST NO. 8-TPS SENSOR SIGNAL TROUBLE (5S-FE WITHOUT ECT)

Terminals Trouble Condition STD Voltage
IDL - E1 No Voltage IG SW ON-Throttle valve OPEN 8 - 14V
PSW - E1 No Voltage IG SW ON-Throttle valve SHUT Throttle Opener Must Be Cancelled First 4.5-5.5V
Fig 1: Code 41/Test No. 9 Schematic (5S-FE W/O ECT) Throttle Position Sensor Signal
G91H17738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

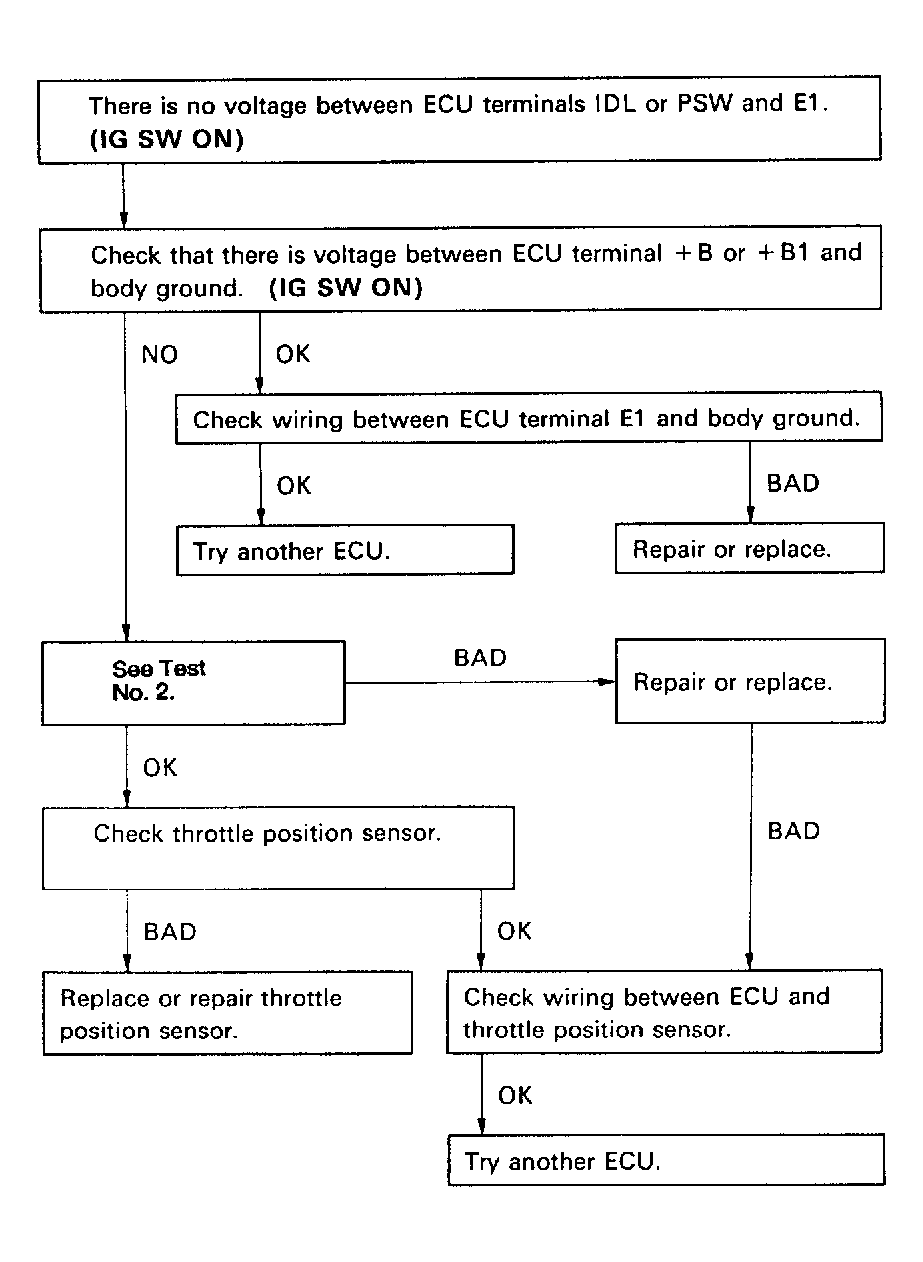

Fig 2: Code 41/Test No. 9 Flow Chart (5S-FE W/O ECT) Throttle Position Sensor Signal
G91I17739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
