5S-FE With Electronically Controlled Transaxle (ECT)

NOTE: The following table is for models WITH Electronically Controlled Transaxle (ECT).

CODE 41/TEST NO. 8-TPS SENSOR SIGNAL TROUBLE (5S-FE WITH ECT)

Terminals	Trouble	Condition	STD Voltage
IDL - E2	No Voltage	IG SW ON-Throttle valve OPEN	8 - 14V
VCC - E2	No Voltage	IG SW ON-	4.5-5.5V
VTA - E2	No Voltage	IG SW ON-Throttle Valve SHUT Throttle Opener Must Be Cancelled First	0.8 - 1.2V

Fig 1: Code 41/Test No. 9 Schematic (5S-FE W/ECT) Throttle Position Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Code 41/Test No. 9 Flow Chart Terms. IDL - E2 (5S-FE W/ECT) Throttle Position Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

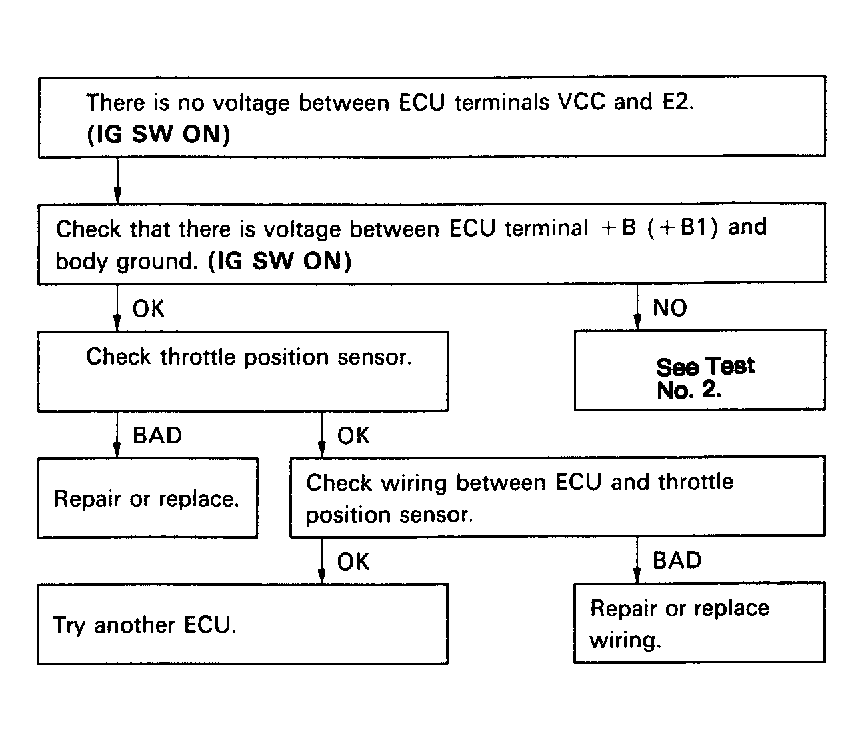

Fig 3: Code 41/Test No. 9 Flow Chart Terms. VCC - E2 (5S-FE W/ECT) Throttle Position Sensor Signal

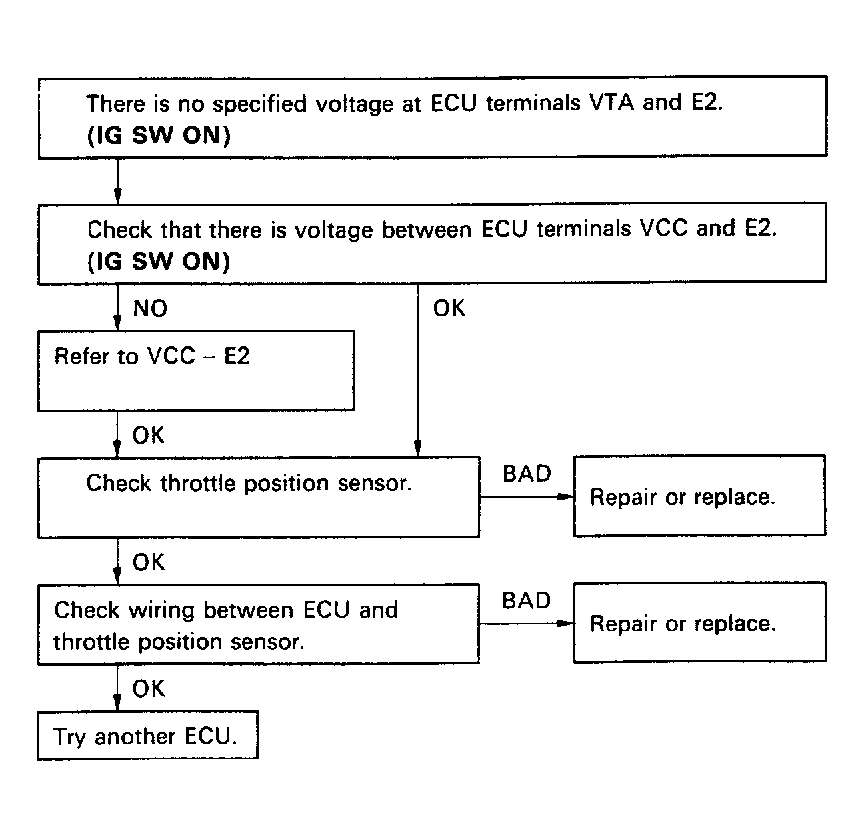

Fig 4: Code 41/Test No. 9 Flow Chart Terms. VTA - E2 (5S-FE W/ECT) Throttle Position Sensor Signal
