Code 31, 32/Test No. 7 - Airflow Meter Signal

CODE 31,32/TEST NO. 7-AIRFLOW METER SIGNAL TROUBLE

Terminals Trouble Condition STD Voltage
VC - E2 No Voltage All 4 - 6V
VS - E2 " Ignition Switch ON Measuring Plate CLOSED 4.0 - 5.5V
VS - E2 " Ignition Switch ON Measuring Plate OPEN 0 - 1V
VS - E2 " Idling 2.0 - 4.0V
VS - E2 " 3000 RPM 1.0 - 2.0V
Fig 1: Code 31, 32/Test No. 7 Schematic Airflow Meter Signal
G91D17684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

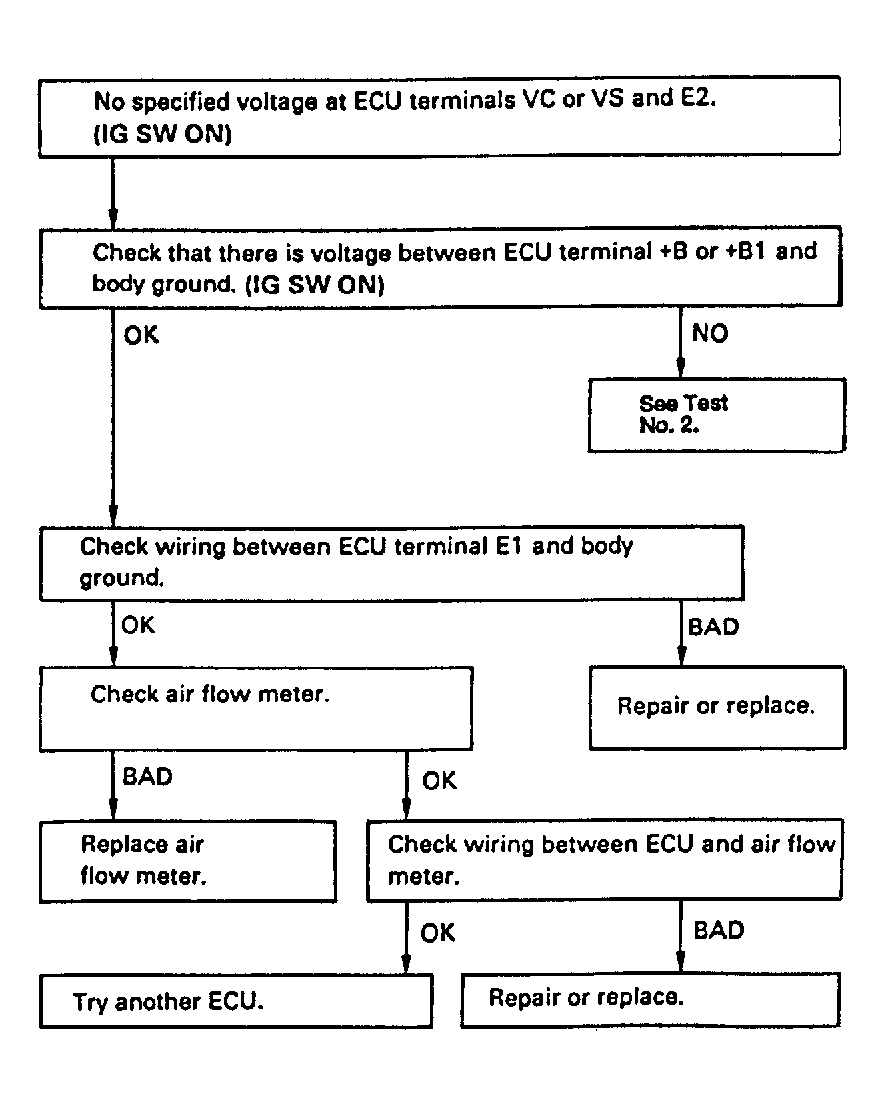

Fig 2: Code 31, 32/Test No. 7 Flow Chart Airflow Meter Signal
G91E17685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
