Disassembly (Tercel)

  1. Drill out tapered head bolts and use a screw extractor to remove column bracket bolts. See Fig 1. Remove upper steering column bracket. Remove snap ring and tap out steering column main shaft.

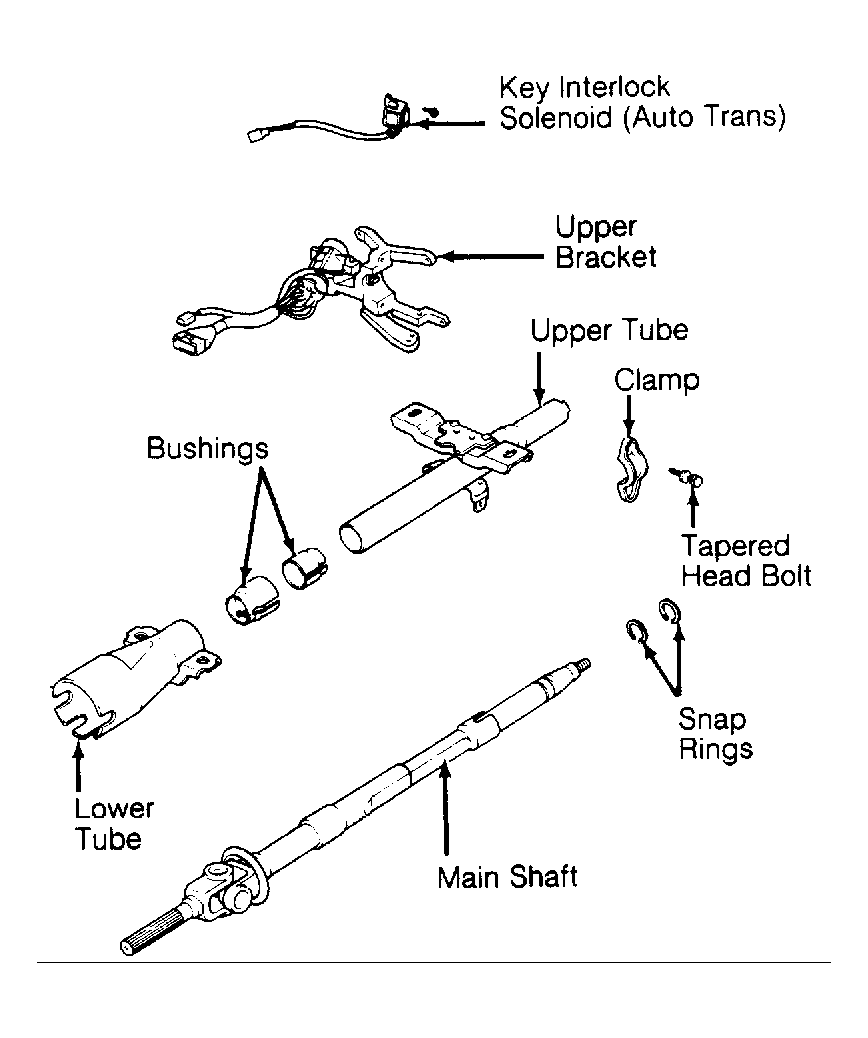

    Fig 1: Identifying Steering Column Components (Tercel)
    G91I02885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Use a screwdriver to release upper bushing tab and remove upper tube. Place ignition key lock in ACC position. Push down on stop pin and pull out key cylinder. Use a screwdriver to remove upper and lower bushings.
