Test 7 Or Code 41 - Throttle Position Switch Signal

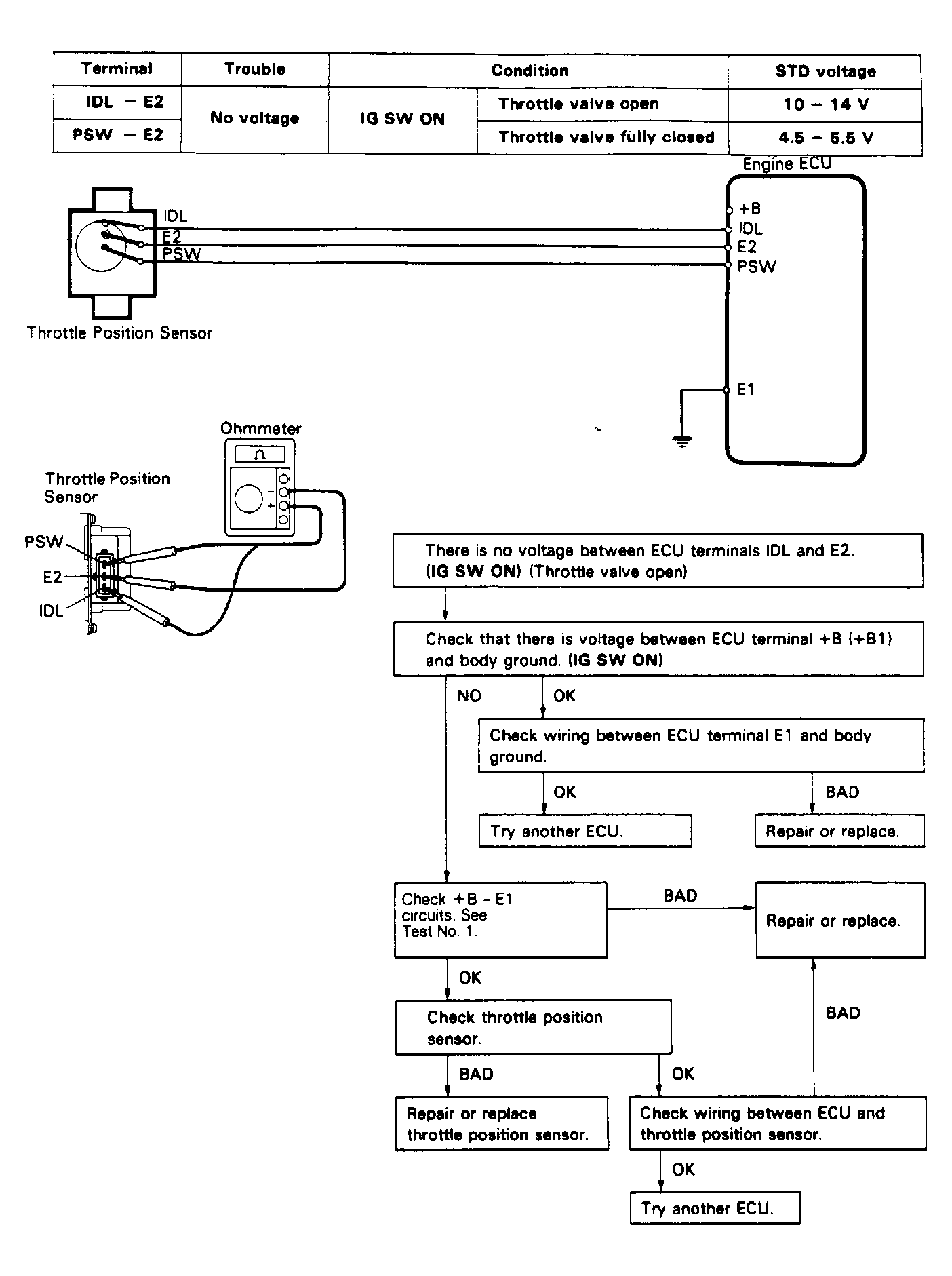

Fig 1: Test 7 or Code 41 - TPS Signal Diagram & Flow Chart

G90I22234

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
