Test 5 Or Code 24 - Intake Air Temperature

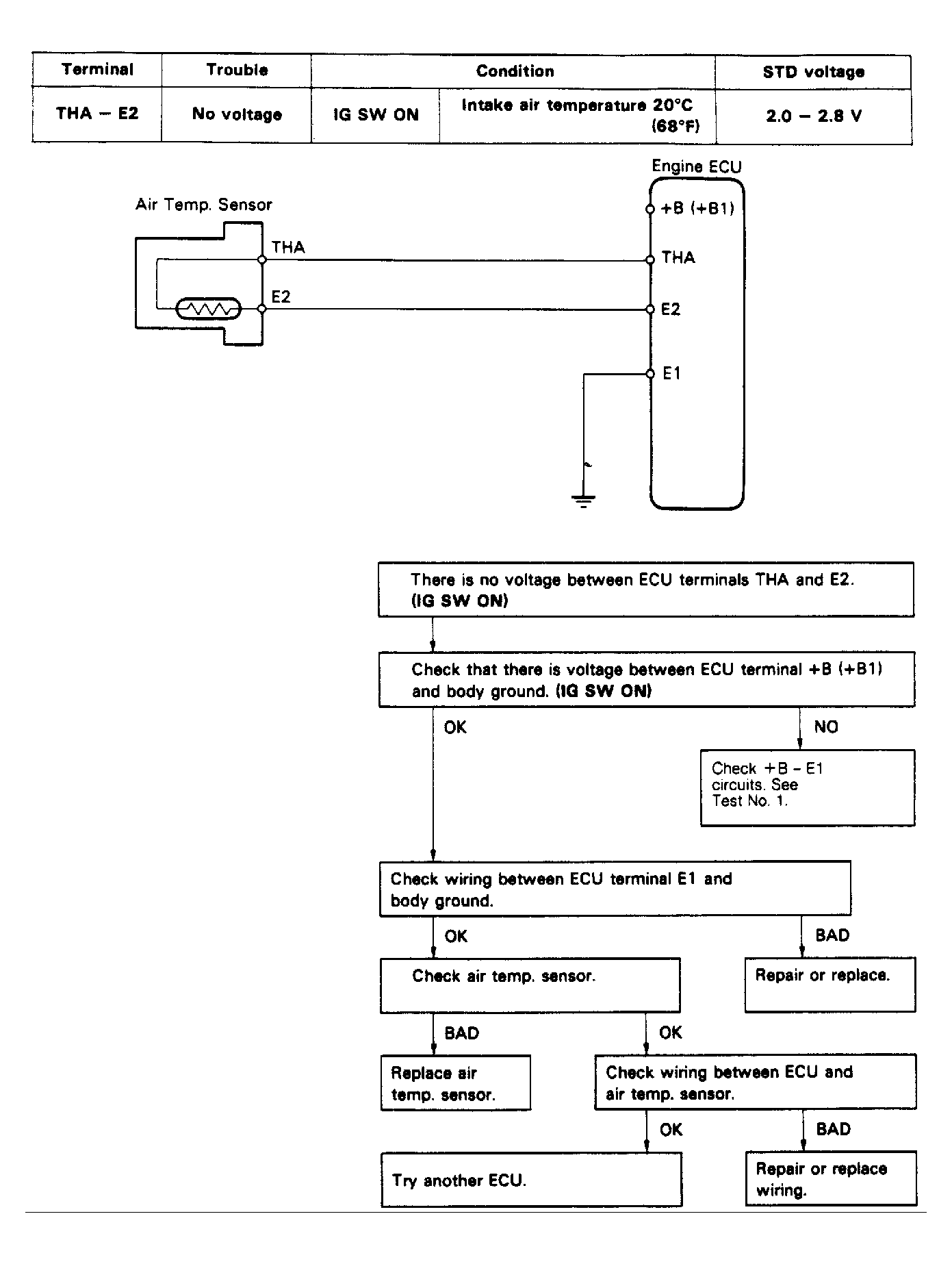

Fig 1: Test 5 or Code 24 - Intake Air Temp. Diagram & Flow Chart

G90E22230

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
